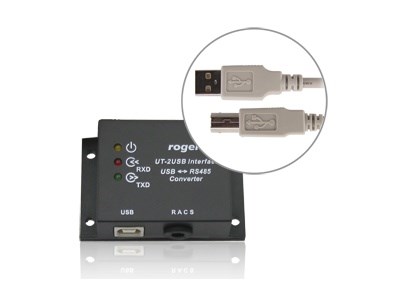

ROGER UT-2 USB Διεπαφή RS485 (UT-2USB)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Roger
• Model / MPN
  UT-2USB (UT-2 USB)
• SKU
  WLONONWCR6858
• Barcode / EAN
  5907608964060
• Category
  USB-to-RS485 Communication Interface
• Primary Use
  Access control (RACS) programming and RS485 device communication
• Interface Type
  USB (PC) to RS485 (device)
• Galvanic Isolation
  Yes
• Driver
  Virtual COM port driver included
• Mounting
  Flat/wall mounting in plastic enclosure
• LED Indicators
  2 LEDs for RS485 data flow, 1 LED for power
• Cable Included
  1 m USB A-B cable
• Connector Type (RS485)
  Screw terminals
• Power Supply
  5 VDC from USB; optional external 10–15 VDC (nominal 12 VDC)
• Current Consumption
  ~40 mA from USB; ~20 mA from 12 VDC
• Max Baud Rate
  230.4 kb/s (v2.0); 115.2 kb/s (v1.0)
• Transmission Mode
  Half duplex RS485
• Max RS485 Distance
  Up to 1200 m (at 9600 b/s)
• Max USB Distance
  5 m
• Operating Temperature
  v2.0: +5°C to +40°C; v1.0: 0°C to +55°C
• Humidity Range
  10% to 95% (without condensation)
• Dimensions
  68 × 45 × 23 mm (W × H × D)
• Weight
  ≈40 g (v2.0)
• Enclosure Material
  Black plastic
• Certifications
  CE
• Operating Systems Supported
  Windows (98/Me/XP/Vista/Server2003), Linux (kernel ≥2.4.20), Mac OS 8/9/X
• Warranty
  2 years
• Versions
  UT-2USB v1.0 and v2.0 (v2.0 has higher max baud rate and slightly different temp/weight specs)
• Typical Applications
  Programming single access controllers, managing networked access systems, connecting general RS485 devices
