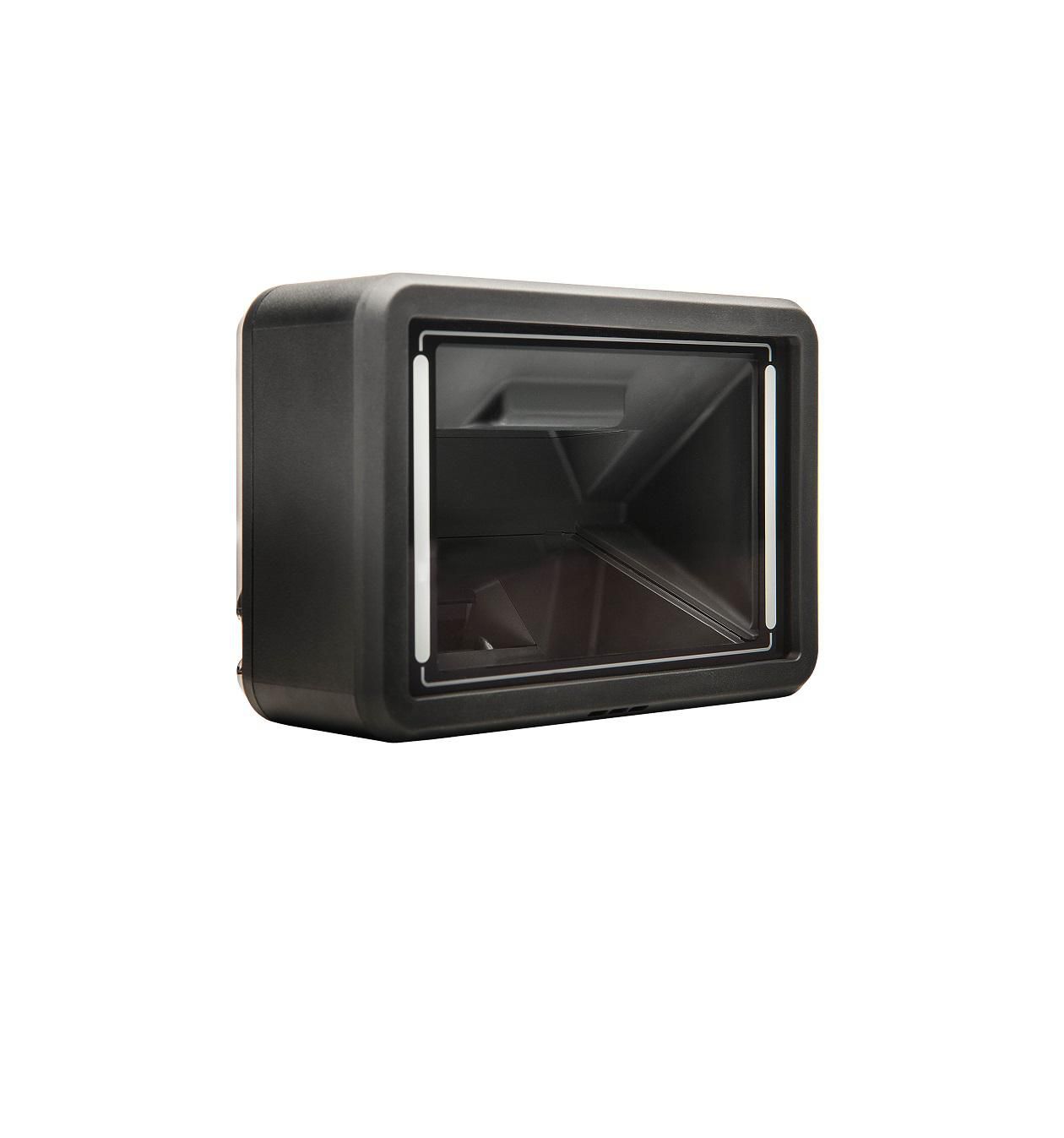

Opticon Μ-11 2D CMOS MP Omni Presentation Desktop Σαρωτής Barcode

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Opticon
• Model
  M-11
• SKU
  14294
• MPN
  M11BU1S-00
• EAN
  8719982142944
• Product Type
  2D CMOS Imager Presentation Desktop Barcode Scanner
• Scanning Mode
  Omnidirectional, hands-free, presentation desktop
• Supported Symbologies
  1D and 2D barcodes, mobile screen codes, Aztec, Data Matrix, Maxi Code, Micro QR, PDF417, QR Code, Composite codes, Codabar, Code 11/39/93/128, EAN/UPC, GS1 DataBar, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, postal codes, Passport MRZ (OCR-B)
• Scan Engine
  Opticon MDI-4100
• Scan Speed
  Up to 120 fps
• Sensor
  Monochrome CMOS area sensor
• Sensor Resolution
  1280 x 800 pixels
• Reading Angle
  Pitch ±60°, skew ±70°, tilt 360°
• Minimum PCS
  0.3
• Aiming Lights
  2 warm white LEDs
• Indicators
  2 LEDs (red, green, blue) and built-in speaker
• Trigger Modes
  Manual, auto-trigger
• Interface
  USB HID, USB COM, Full-speed 12 Mbps, RS232, RJ45 serial/RS232C optional
• Power Supply
  4.5-5.5V USB, 5V ±5% RS232
• Protection Rating
  IP42
• Drop Resistance
  Multiple drops from 1.5 m to concrete
• Vibration Resistance
  10-100 Hz with 2G for 30 min
• Operating Temperature
  -5 to 45°C
• Storage Temperature
  -30 to 60°C
• Humidity
  10-90% non-condensing
• Dimensions
  84.4 x 48 x 124.4 mm
• Weight
  220 g
• Color
  Black
• Cable Outlet
  Flexible, 4 directions
• Image Formats
  Windows Bitmap, JPEG
• Warranty
  2 years
• Compliance
  RoHS, WEEE
• Use Cases
  Retail, healthcare, manufacturing, transportation, logistics, POS, ticketing, ID verification, kiosks, medical devices
