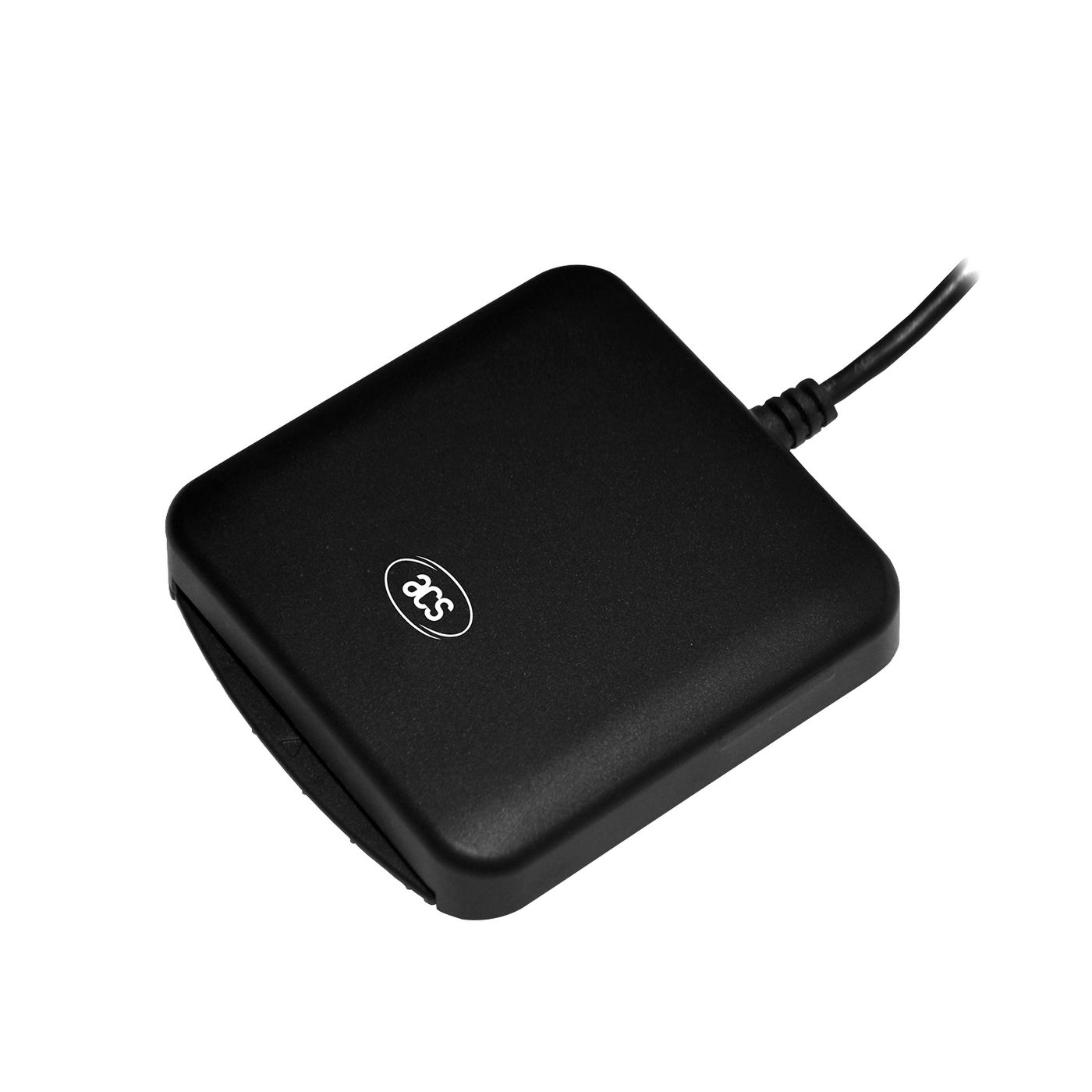

ACS Αναγνώστης Έξυπνων Καρτών ACR39U

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ACS
• Model
  ACR39U-U1ACSA
• EAN
  4897129310273
• Product Type
  Contact Smart Card Reader
• Interface
  USB 2.0 Full Speed
• Connector Type
  USB Type-A fixed cable
• Cable Length
  1.5 m
• CCID Compliance
  Yes
• Supported Operating Systems
  Windows Linux macOS Android
• Supported Card Standards
  ISO 7816 Parts 1-4
• Supported Card Classes
  Class A Class B Class C
• Supported Card Voltages
  5 V 3 V 1.8 V
• Supported Protocols
  T=0 T=1
• Read Write Speed
  9.6 to 600 Kbps
• Clock Frequency
  4.8 MHz
• Power Source
  USB bus powered
• Supply Voltage
  5 V
• Max Current
  50 mA
• Short Circuit Protection
  Yes on all pins
• Card Insertion Cycles
  Up to 200000
• MTBF
  500000 hours
• Operating Temperature
  0 to 60 C
• Dimensions
  72.2 x 69.0 x 14.5 mm
• Weight
  65 g
• Certifications
  EMV Level 1 Contact PBOC CE FCC REACH RoHS
• Applications
  E banking E payment Identity verification Digital signatures Access control PIV CAC MyKad Emirates ID J LIS SIPRNET
• Slot Type
  1 full sized contact slot
