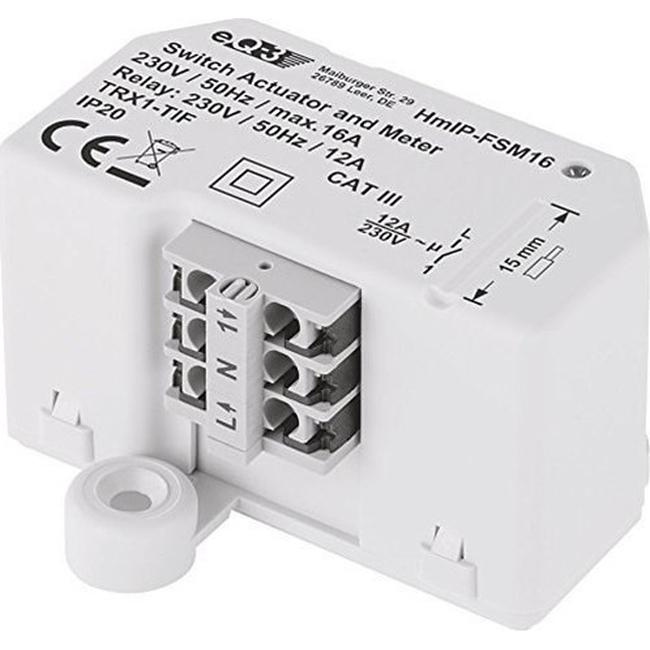

Ενδιάμεσος Διακόπτης IP Switch-Measurement Actuator - flush-mounted

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Power Supply Voltage
  230 V
• Power Supply Frequency
  50 Hz
• Maximum Current
  5 A
• Standby Power Consumption
  0.2 W
• Maximum Switching Power
  1150 W
• Load Type
  Ohmic load with cosφ ? 0.95
• Cable Type
  Star and flexible cable
• Cable Cross-Section
  0.75-1.5 mm²
• Measurement Range
  0 to 1150 W
• Measurement Resolution
  0.01 W
• Measurement Accuracy
  ±1% ± 0.03 W
• Installation Type
  Only in switch boxes according to DIN 49073-1
• Temperature Range
  -10°C to +55°C
• Protection Class
  IP20
• Dimensions
  54 mm x 33 mm x 41 mm
• Weight
  45 grams
• Frequency Band
  868.0-868.6 MHz and 869.4-869.65 MHz
• Typical Range
  Up to 130 meters in free field conditions
