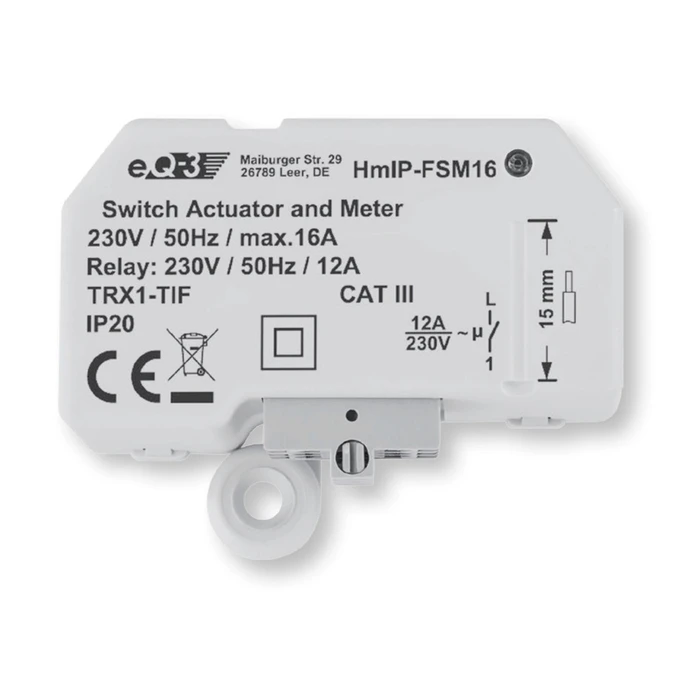

The Homematic IP Schalt-Mess-Aktor - Unterputz is a versatile smart home device that excels in both switching and measuring electrical loads. Part of the Homematic IP system, it integrates seamlessly with various home automation devices.
This under-the-switch actuator can be installed in standard under-the-switch boxes or specialized on-the-switch distribution boxes like the ELS Spelsberg Abox 25, providing IP65 protection ideal for humid or outdoor environments.
Equipped with a high-precision measurement system, the device accurately tracks energy consumption, even during standby modes, ensuring effective monitoring of connected devices. Its micro-contact relay with a 1-pole configuration guarantees reliable switching for loads up to 1150 watts.
Key Features:
- Power Supply: 230 V, 50 Hz
- Maximum Switching Power: 1150 W
- Measurement Range: 0 to 1150 W
- Compact Size: 54 mm x 33 mm x 41 mm
In conclusion, the Homematic IP Schalt-Mess-Aktor is an essential device for modern smart homes, ensuring precision in energy management and reliable load switching.
-
Power Supply Voltage230 V
-
Power Supply Frequency50 Hz
-
Maximum Current5 A
-
Standby Power Consumption0.2 W
-
Maximum Switching Power1150 W
-
Load TypeOhmic load with cosφ ? 0.95
-
Cable TypeStar and flexible cable
-
Cable Cross-Section0.75-1.5 mm²
-
Measurement Range0 to 1150 W
-
Measurement Resolution0.01 W
-
Measurement Accuracy±1% ± 0.03 W
-
Installation TypeOnly in switch boxes according to DIN 49073-1
-
Temperature Range-10°C to +55°C
-
Protection ClassIP20
-
Dimensions54 mm x 33 mm x 41 mm
-
Weight45 grams
-
Frequency Band868.0-868.6 MHz and 869.4-869.65 MHz
-
Typical RangeUp to 130 meters in free field conditions
Ratings
Description
The Homematic IP Schalt-Mess-Aktor - Unterputz is a versatile smart home device that excels in both switching and measuring electrical loads. Part of the Homematic IP system, it integrates seamlessly with various home automation devices.
This under-the-switch actuator can be installed in standard under-the-switch boxes or specialized on-the-switch distribution boxes like the ELS Spelsberg Abox 25, providing IP65 protection ideal for humid or outdoor environments.
Equipped with a high-precision measurement system, the device accurately tracks energy consumption, even during standby modes, ensuring effective monitoring of connected devices. Its micro-contact relay with a 1-pole configuration guarantees reliable switching for loads up to 1150 watts.
Key Features:
- Power Supply: 230 V, 50 Hz
- Maximum Switching Power: 1150 W
- Measurement Range: 0 to 1150 W
- Compact Size: 54 mm x 33 mm x 41 mm
In conclusion, the Homematic IP Schalt-Mess-Aktor is an essential device for modern smart homes, ensuring precision in energy management and reliable load switching.
Technical Specifications
-
Power Supply Voltage230 V
-
Power Supply Frequency50 Hz
-
Maximum Current5 A
-
Standby Power Consumption0.2 W
-
Maximum Switching Power1150 W
-
Load TypeOhmic load with cosφ ? 0.95
-
Cable TypeStar and flexible cable
-
Cable Cross-Section0.75-1.5 mm²
-
Measurement Range0 to 1150 W
-
Measurement Resolution0.01 W
-
Measurement Accuracy±1% ± 0.03 W
-
Installation TypeOnly in switch boxes according to DIN 49073-1
-
Temperature Range-10°C to +55°C
-
Protection ClassIP20
-
Dimensions54 mm x 33 mm x 41 mm
-
Weight45 grams
-
Frequency Band868.0-868.6 MHz and 869.4-869.65 MHz
-
Typical RangeUp to 130 meters in free field conditions
