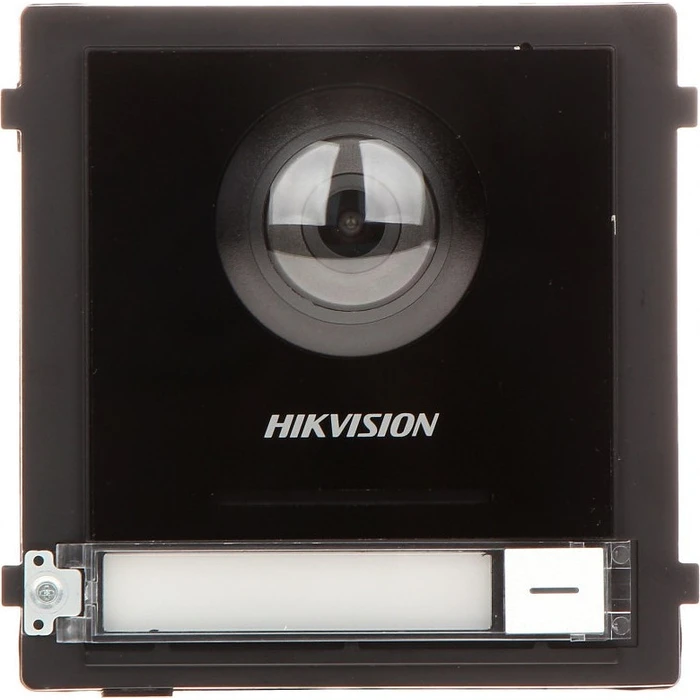

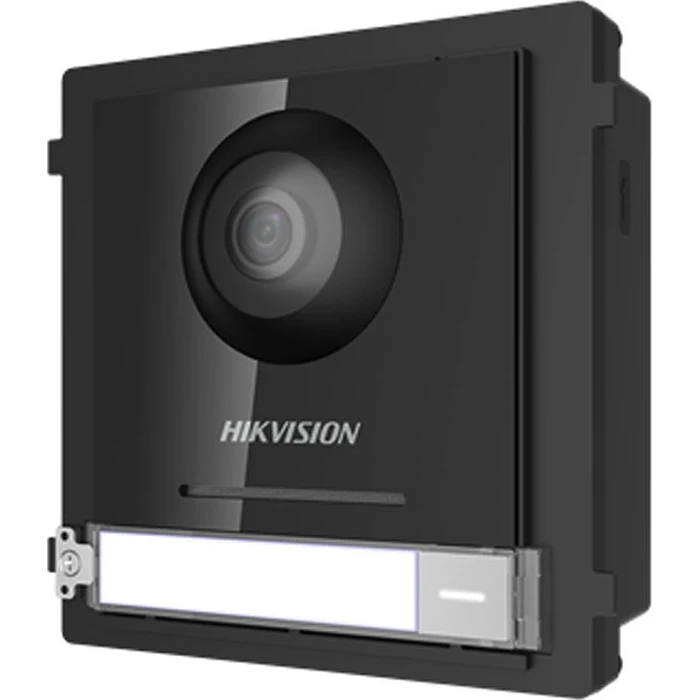

Αξεσουάρ για Θυροτηλέφωνο Hikvision Video Intercom Module DS-KD8003-IME1(B)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Camera Resolution
  2 MP (1920 x 1080)
• Viewing Angle Horizontal
  146°
• Viewing Angle Vertical
  82°
• Built-in Speaker
  Yes
• Built-in Microphone
  Yes
• Audio Compression
  G.711A, G.711U
• Audio Bitrate
  64 Kbps
• Power Output
  DC 12 V / 0.5 A
• Power Supply Options
  12 VDC or PoE (802.3af)
• Number of Relays
  2 (NO/NC)
• Max Relay Current
  2 A
• Max Relay Voltage
  30 VDC
• Number of Alarm Inputs
  4
• Network Protocol
  TCP/IP, RTSP
• Network Interface Type
  RJ-45, 10/100 Base-T
• RS-485 Port
  Yes
• Debugging Port
  Yes
• Dimensions
  98 mm x 100 mm x 44 mm
• Weight
  380 grams
• Protection Rating
  IP65
• Operating Temperature
  -40°C to 60°C
• Humidity Range
  10% to 95%
• Built-in IR Illuminator
  Yes
• Motion Detection
  Yes
• Video Compression Standard
  H.264
• Configuration Software
  iVMS-4200 (v3)
• Compatibility with Frames
  DS-KD-XXX series frames
• Maximum Expansion
  Up to 8 modules
• User Capacity
  2000 users
• Tag Capacity
  6000 tags
