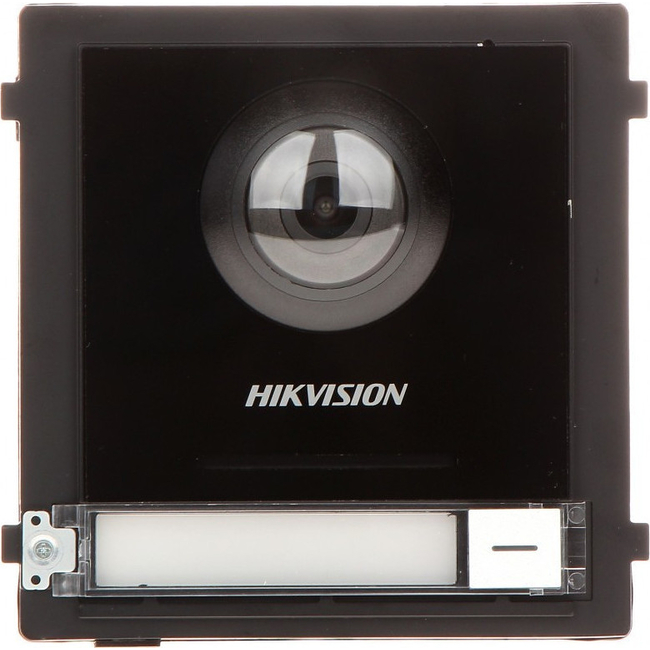

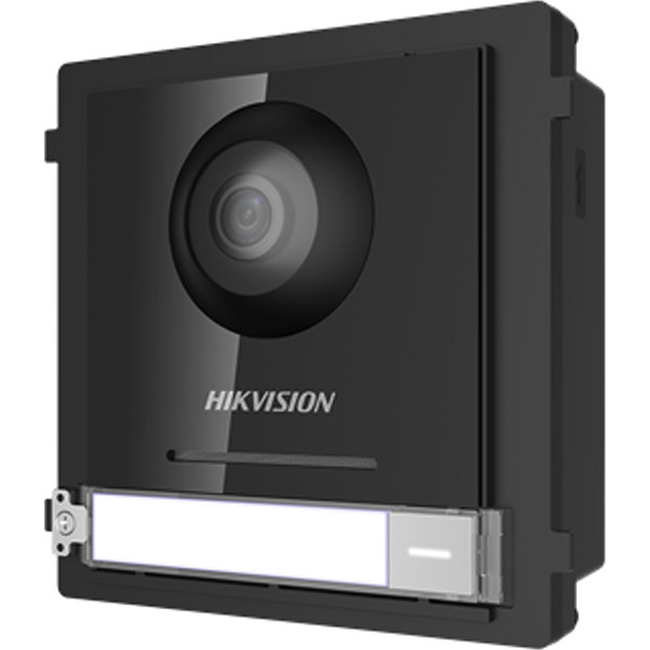

The HikVision Video Intercom Module DS-KD8003-IME1(B) is a key component of HikVision's modular door station system, designed to provide advanced video intercom functionality with a focus on security and convenience.
This module features a 2 MP fisheye camera with a wide viewing angle, allowing for comprehensive visual coverage of the entrance area. It includes a built-in speaker and microphone for two-way audio communication, enhancing security and user convenience.
The module is equipped with an infrared illuminator, ensuring proper observation even in low-light conditions. Additionally, it supports remote viewing and opening via the Hik-Connect mobile app, allowing users to monitor the door station from any location.
Key Features
- High-resolution imaging: 2 MP (1920 x 1080)
- Wide viewing angle: 146° horizontally and 82° vertically
- Built-in audio features for two-way communication
- Infrared illuminator for low-light visibility
- Support for remote operations through a mobile application
This video intercom system is designed not just for functionality but also for enhancing security around your property.
-
Camera Resolution2 MP (1920 x 1080)
-
Viewing Angle Horizontal146°
-
Viewing Angle Vertical82°
-
Built-in SpeakerYes
-
Built-in MicrophoneYes
-
Audio CompressionG.711A, G.711U
-
Audio Bitrate64 Kbps
-
Power OutputDC 12 V / 0.5 A
-
Power Supply Options12 VDC or PoE (802.3af)
-
Number of Relays2 (NO/NC)
-
Max Relay Current2 A
-
Max Relay Voltage30 VDC
-
Number of Alarm Inputs4
-
Network ProtocolTCP/IP, RTSP
-
Network Interface TypeRJ-45, 10/100 Base-T
-
RS-485 PortYes
-
Debugging PortYes
-
Dimensions98 mm x 100 mm x 44 mm
-
Weight380 grams
-
Protection RatingIP65
-
Operating Temperature-40°C to 60°C
-
Humidity Range10% to 95%
-
Built-in IR IlluminatorYes
-
Motion DetectionYes
-
Video Compression StandardH.264
-
Configuration SoftwareiVMS-4200 (v3)
-
Compatibility with FramesDS-KD-XXX series frames
-
Maximum ExpansionUp to 8 modules
-
User Capacity2000 users
-
Tag Capacity6000 tags
Ratings
Description
The HikVision Video Intercom Module DS-KD8003-IME1(B) is a key component of HikVision's modular door station system, designed to provide advanced video intercom functionality with a focus on security and convenience.
This module features a 2 MP fisheye camera with a wide viewing angle, allowing for comprehensive visual coverage of the entrance area. It includes a built-in speaker and microphone for two-way audio communication, enhancing security and user convenience.
The module is equipped with an infrared illuminator, ensuring proper observation even in low-light conditions. Additionally, it supports remote viewing and opening via the Hik-Connect mobile app, allowing users to monitor the door station from any location.
Key Features
- High-resolution imaging: 2 MP (1920 x 1080)
- Wide viewing angle: 146° horizontally and 82° vertically
- Built-in audio features for two-way communication
- Infrared illuminator for low-light visibility
- Support for remote operations through a mobile application
This video intercom system is designed not just for functionality but also for enhancing security around your property.
Technical Specifications
-
Camera Resolution2 MP (1920 x 1080)
-
Viewing Angle Horizontal146°
-
Viewing Angle Vertical82°
-
Built-in SpeakerYes
-
Built-in MicrophoneYes
-
Audio CompressionG.711A, G.711U
-
Audio Bitrate64 Kbps
-
Power OutputDC 12 V / 0.5 A
-
Power Supply Options12 VDC or PoE (802.3af)
-
Number of Relays2 (NO/NC)
-
Max Relay Current2 A
-
Max Relay Voltage30 VDC
-
Number of Alarm Inputs4
-
Network ProtocolTCP/IP, RTSP
-
Network Interface TypeRJ-45, 10/100 Base-T
-
RS-485 PortYes
-
Debugging PortYes
-
Dimensions98 mm x 100 mm x 44 mm
-
Weight380 grams
-
Protection RatingIP65
-
Operating Temperature-40°C to 60°C
-
Humidity Range10% to 95%
-
Built-in IR IlluminatorYes
-
Motion DetectionYes
-
Video Compression StandardH.264
-
Configuration SoftwareiVMS-4200 (v3)
-
Compatibility with FramesDS-KD-XXX series frames
-
Maximum ExpansionUp to 8 modules
-
User Capacity2000 users
-
Tag Capacity6000 tags
