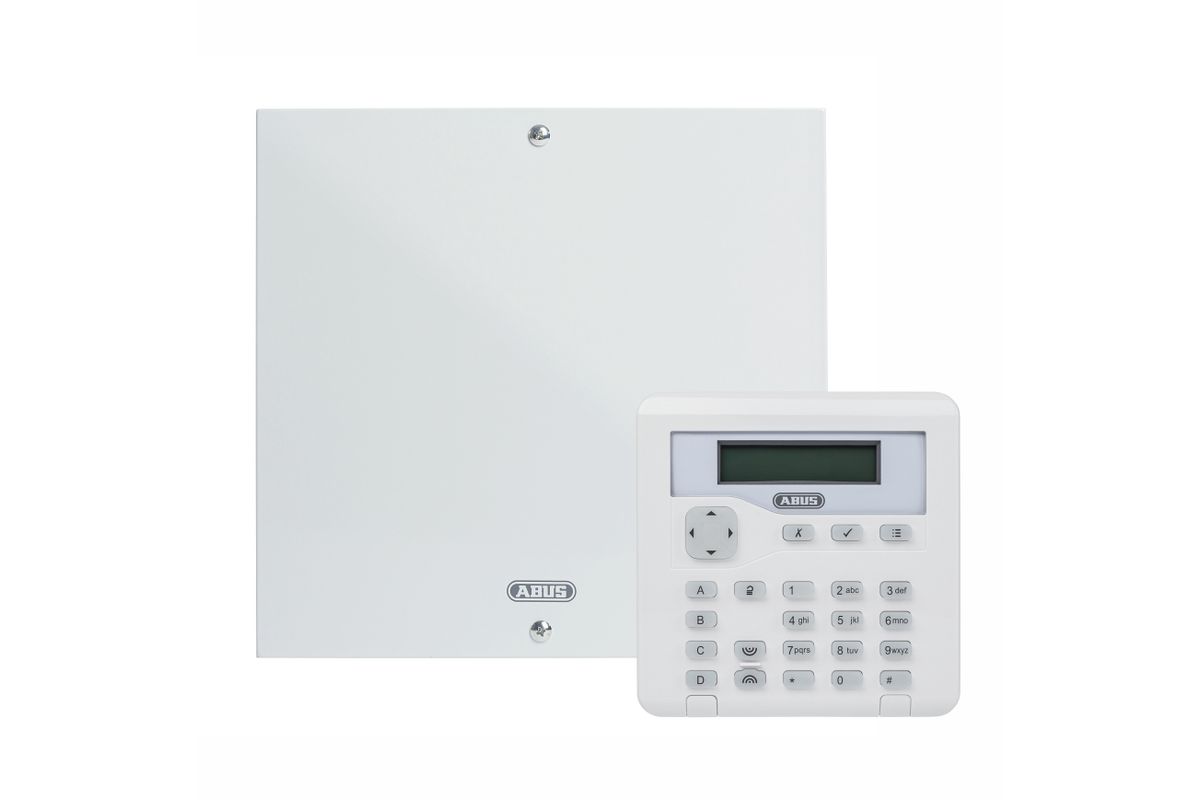

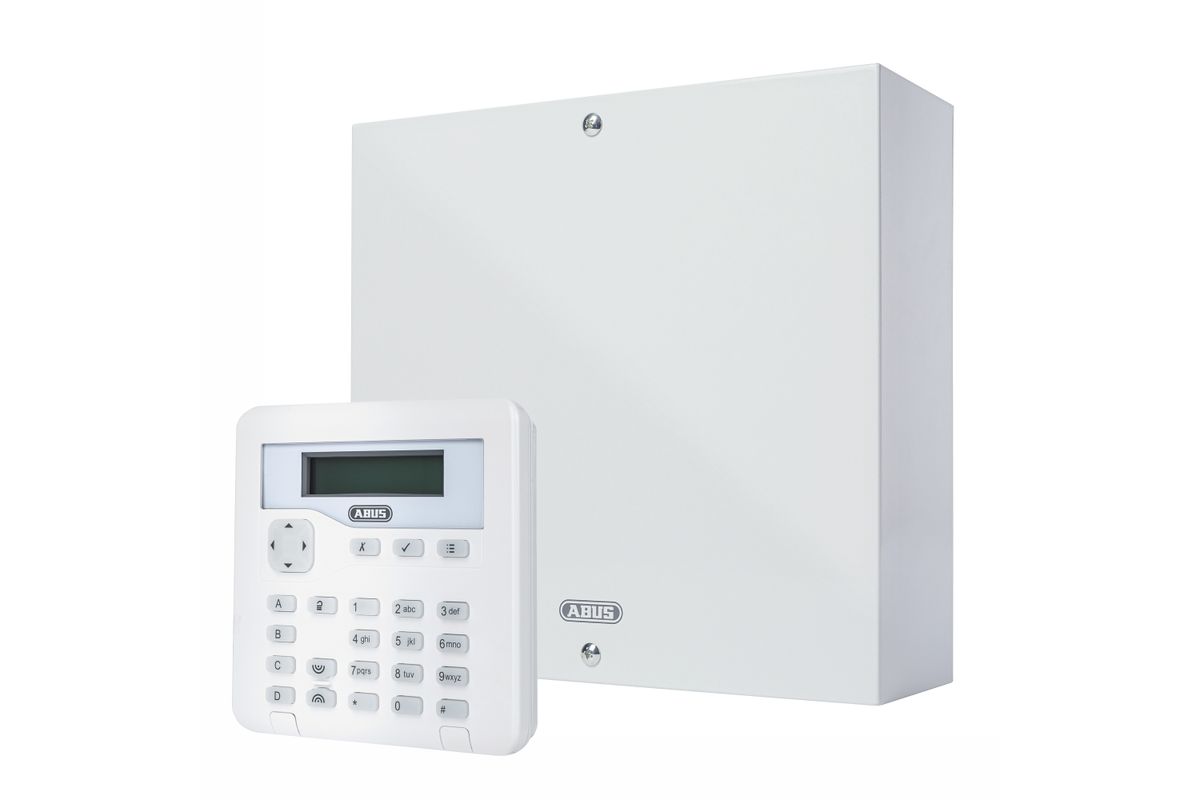

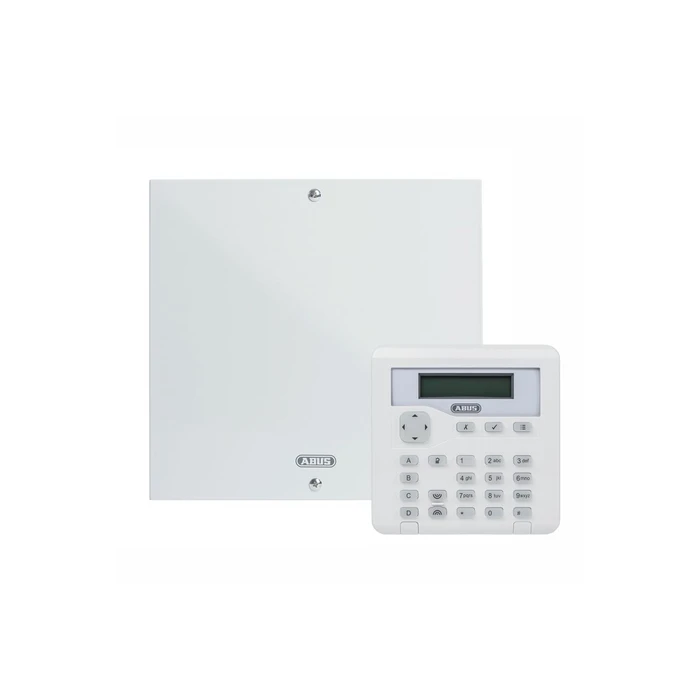

ABUS Terxon SX Κεντρική μονάδα συναγερμού

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ABUS (ABUS Security Center)
• Model / Product
  Terxon SX Einbruchmeldezentrale (Intrusion alarm control panel)
• MPN
  AZAA10000
• SKU
  599771
• EAN
  4043158226393
• System type
  Wired intrusion alarm control panel
• Maximum wired detector zones
  10
• Sabotage zones
  10
• Sabotage monitoring
  Yes
• Zone wiring supported
  NC and DEOL
• BUS type
  RS485 BUS
• Maximum control units/keypads
  4
• Maximum users
  10
• Sub-areas / partitions
  4 (1 area + up to 3 partitions)
• Event memory
  Yes
• Stored events capacity
  350
• Switching outputs total
  11
• Transistor outputs (high current)
  3 x 500 mA
• Transistor outputs (low current)
  8 x 50 mA
• Mains supply
  230 V AC
• Battery supported
  12 V DC, 7.0 Ah lead‑acid (space and charger provided)
• Battery charging time
  Up to 72 hours
• Maximum backup duration
  Up to 12 hours (depending on load)
• Power consumption
  200 mA
• Fuses
  230 V: 250 mA; 12 V: 1 A fast-blow; Battery: 2 A fast-blow
• Housing material
  Metal alarm-centre housing; ABS for control-unit/keypad
• Control-panel dimensions (W×H×D)
  250 × 239 × 87 mm
• Product weight
  2.492 kg (product data) / 2.8 kg (alternate spec)
• Operating temperature range
  -10 °C to 55 °C
• Maximum relative humidity
  93%
• Environmental class
  II
• Display
  Two-line alphanumeric LCD
• Display languages
  6 selectable
• Event indication / Logging
  350 events stored
• Alarm communication
  Requires external dialer (no built-in alarm transmitter)
• Wireless networking
  No
• Hybrid expansion
  No
• Remote configuration/maintenance
  No
• Installation type
  Fixed wall-mounted alarm control cabinet
• Intended use
  Smaller residential or commercial properties
• Manuals / Guides
  Installation Guide and User Manual available (ABUS documentation)
