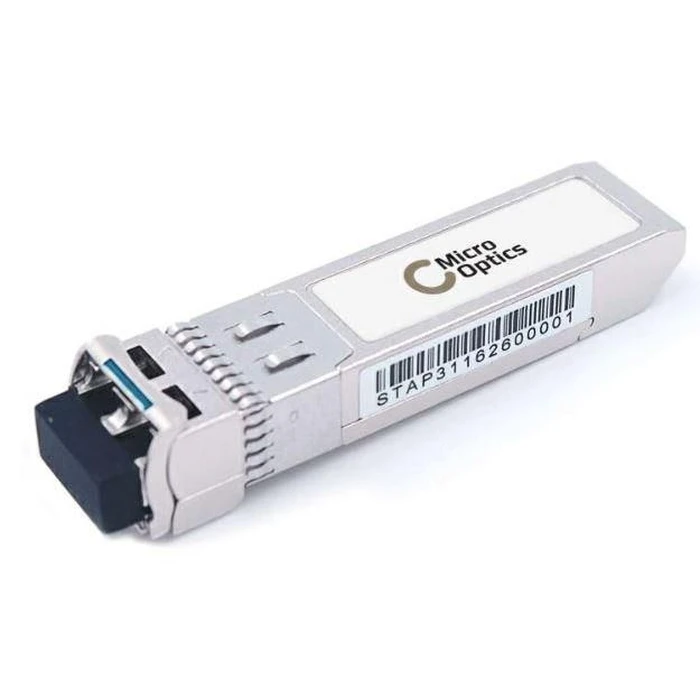

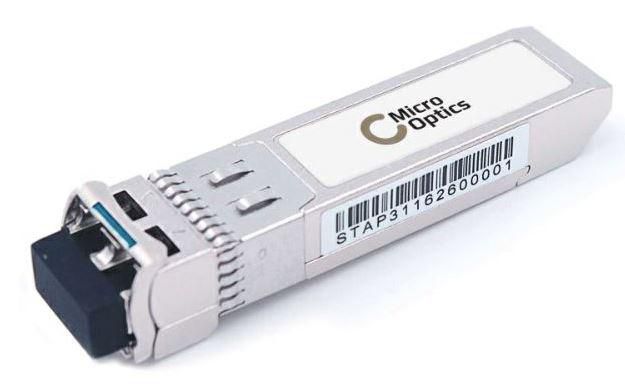

Zyxel Συμβατό SFP10G LR Μετατροπέας Οπτικών Ινών SFP Plus 1310nm SMF 10km LC

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Form Factor
  SFP+
• Product Type
  Optical Transceiver Module
• Compatibility
  Zyxel compatible
• Standard
  10GBASE-LR
• Data Rate
  10.3 Gbps
• Wavelength
  1310 nm
• Maximum Reach
  10 km
• Fiber Type
  Single-mode fiber SMF
• Connector
  Duplex LC
• Hot Pluggable
  Yes
• Digital Diagnostics Monitoring
  DDM DOM supported
• Transmitter Type
  DFB laser
• Receiver Type
  PIN
• Power Supply
  3.3 V
• Power Consumption
  Up to 1 W
• Commercial Temperature Range
  0 to 70 °C
• MSA Compliance
  Yes
• IEEE Compliance
  IEEE 802.3ae
• Extinction Ratio
  Greater than 3.5 dB
• Power Budget
  6.2 dB
• Transmit Power
  Minus 8.2 to 0.5 dBm
• Receiver Sensitivity
  Less than minus 14.4 dBm
• Receiver Overload
  0.5 dBm
• Safety Standards
  EN 60825-1, EN 60825-2, FDA 21CFR1040.10 Class 1 Laser
• RoHS Compliance
  Yes
• CE Marked
  Yes
• Weight
  Approximately 18 g
• Dimensions
  55.88 x 15.24 x 12.7 mm
