ZTE MC889 ODU 5G εξωτερική μονάδα (ODU) με RJ45-RJ45F-W-20-CAT5E

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ZTE
• Model
  MC889 (sometimes listed as MC889A)
• SKU
  NET-4G-ZTE-052
• EAN
  5902002385541
• MPN
  MC889 ODU 5GRJ
• Product Type
  Outdoor 5G ODU / 5G CPE router
• Chipset / Modem
  Qualcomm Snapdragon X62 (SDX62) 5G modem
• Mobile Standards
  5G NR, 4G LTE (fallback), some listings include 3G support
• 5G Modes
  SA (Standalone) and NSA (Non-Standalone)
• 5G Bands (reported)
  n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n66,n71,n75,n77,n78,n79
• 4G LTE Bands (reported)
  B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B26,B28,B30,B32,B66,B71 and TDD B34,B38,B39,B40,B41,B42,B48 (vendor-dependent listings)
• 3G Bands (reported)
  B1,B2,B5,B8 (varies by listing)
• MIMO
  4x4 MIMO (sub-6 GHz), 2x2 MIMO (mmWave, per some listings)
• Modulation
  256-QAM (sub-6 GHz), 64-QAM (mmWave, per some listings)
• Peak Throughput (reported)
  5G DL up to ~3.55–5.0 Gbps (vendor variance), 4G DL up to ~1 Gbps
• Ethernet Ports
  1 × 2.5 GbE RJ45 (WAN/LAN) with PoE support
• PoE
  Yes (PoE-powered - typical PoE input listed as DC 48V / ~0.32A / ~15W on some docs)
• Wi‑Fi
  Some retailer listings show dual-band Wi‑Fi (2.4 GHz / 5 GHz) with 802.11a/b/g/n/ac/ax support (varies by SKU/listing)
• SIM
  1 × SIM card slot
• Antenna
  Omnidirectional 4 dBi and directional 6.5 dBi antenna variants referenced in different listings (ODU external antennas)
• Indicators
  LED indicators (power, network, signal - per quick-start guide)
• MU‑MIMO
  Listed as supported by some retailer specs
• Ingress Protection
  IP65 (dust & water resistant)
• Operating Temperature
  –40 °C to +60 °C
• Dimensions
  189.6 × 108.8 × 31.2 mm (unit)
• Weight
  ~500 g (unit)
• Color
  White
• Power Consumption / Input
  PoE (DC 48V typical spec listed on some sources)
• Environmental Protection
  Lightning protection mentioned on some datasheets, shock/vibration resistance noted in vendor info
• Mounting
  Wall or pole mounting kit included (outdoor mounting hardware)
• Included Items
  MC889 ODU unit, PoE adapter, CAT5E network cable (RJ45), installation kit, quick-start guide (varies by seller)
• Package Notes

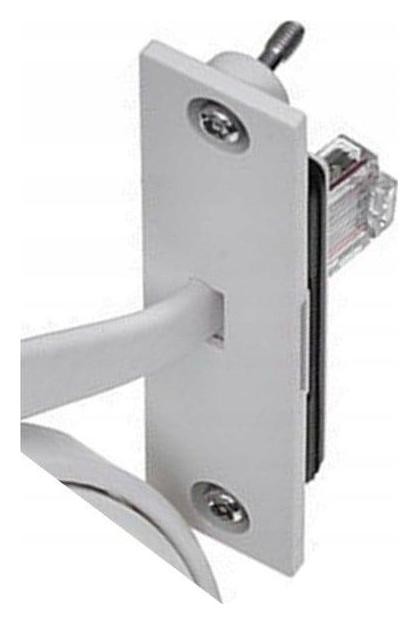

  Package often references RJ45-RJ45F-W-20-CAT5E cable wording in kit / quick-start guide
• Certifications / Regulatory
  Vendor dependent; check local regulatory/firmware SKU for exact band support
