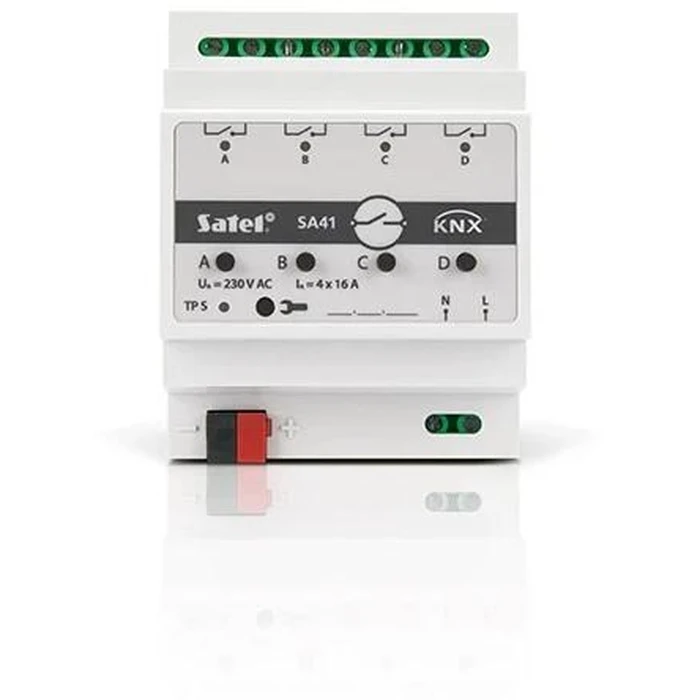

Χρονικό Ράγας Satel KNX 4-channel KNX-SA41

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Supply voltage
  230 V AC
• Maximum power consumption
  5 W
• Current draw from KNX bus
  < 10 mA
• Contact rating
  16 A
• Rated load current (AC1)
  16 A / 250 V AC
• Rated load current (AC15)
  3 A / 120 V, 1.5 A / 240 V
• Maximum switching power (AC1)
  4,000 VA
• Maximum switching frequency at rated load (AC1)
  600 cycles/h
• Maximum switching frequency at no load
  3,600 cycles/h
• Resistive load
  3,680 W
• Capacitive load
  16 A, max. 200 µF
• Incandescent lamps
  3,680 W
• HV 230V halogen lamps
  3,680 W
• Switching cycles (AC1, 600 cycles/h)
  > 10⁵ at 16 A / 250 V AC
• Switching cycles (DC1, 600 cycles/h)
  > 10⁵ at 16 A / 24 V AC
• Switching cycles (AC3, I = 3.5 A)
  > 2.5 × 10⁵
• Switching cycles (AC1 with 1000 W incandescent lamps)
  > 0.9 × 10⁵
• Maximum response time to telegram
  < 20 ms
• Maximum number of communication objects
  69
• Maximum number of group addresses
  256
• Maximum number of associations
  256
• Logical functions
  AND, NAND, OR, NOR, XOR, XNOR
• Integrated KNX bus connector
  Yes
