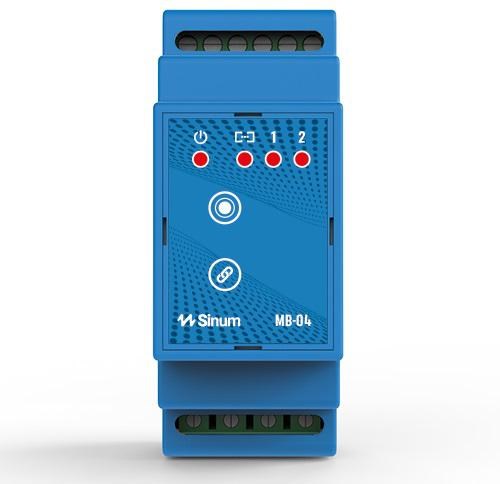

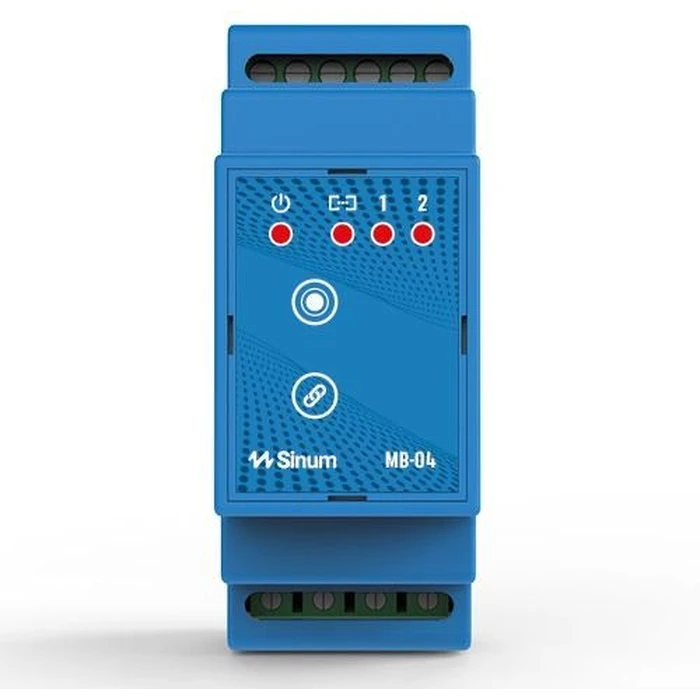

Ασύρματο module πύλης για DIN-rail MB-04 Tech

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  TECH Controllers (TECH Sterowniki)
• Model / MPN
  MB-04 WG.23.0175
• SKU
  WLONONWCRJEB3
• EAN / Barcode
  5902479667140
• Mounting
  DIN rail (TH35)
• Power supply
  24 V DC ±10%
• Power consumption
  ≈1 W
• Typical current consumption
  20 mA
• Communication
  Wireless (868 MHz)
• Max transmitter power
  25 mW
• Relay outputs
  2 (voltage-free / changeover style: dual-state outputs)
• Digital inputs
  2 (dual-state)
• Maximum relay load
  2 A (AC1) / 2 A (DC1) per relay (manual); some retailer pages list 0.5 A
• Operating temperature range
  5 °C to 50 °C
• Ambient relative humidity
  <80% RH
• Dimensions (H x W x D)
  89 mm x 35 mm x 65 mm
• Product weight
  ~280 g
• Mounting location
  Electrical distribution cabinet / enclosure
• Compatible central unit
  Sinum central unit
• Package contents
  Module (device); documentation (exact contents per retailer/manual)
• Typical applications
  Gate automation, remote/manual gate control, integration in home/building automation scenes
