Επιτοίχιος φορτιστής για ηλεκτρικά αυτοκίνητα Besen SQ20-7KW-APP

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Besen
• Model
  SQ20-7KW-APP
• MPN / SKU / EAN
  SQ20-7KW-APP / 5907085525341 / 5907085525341
• Product type
  Wall-mounted AC EV charger (wallbox)
• Output power
  7 kW class (7.0–7.2 kW typical for 32 A single-phase)
• Input voltage
  AC 230 V, single phase
• Maximum current
  32 A
• Frequency
  47–63 Hz
• Connector / Outlet
  Type 2 (IEC 62196-2) / SAE J1772 compatible; GB/T available for certain regions

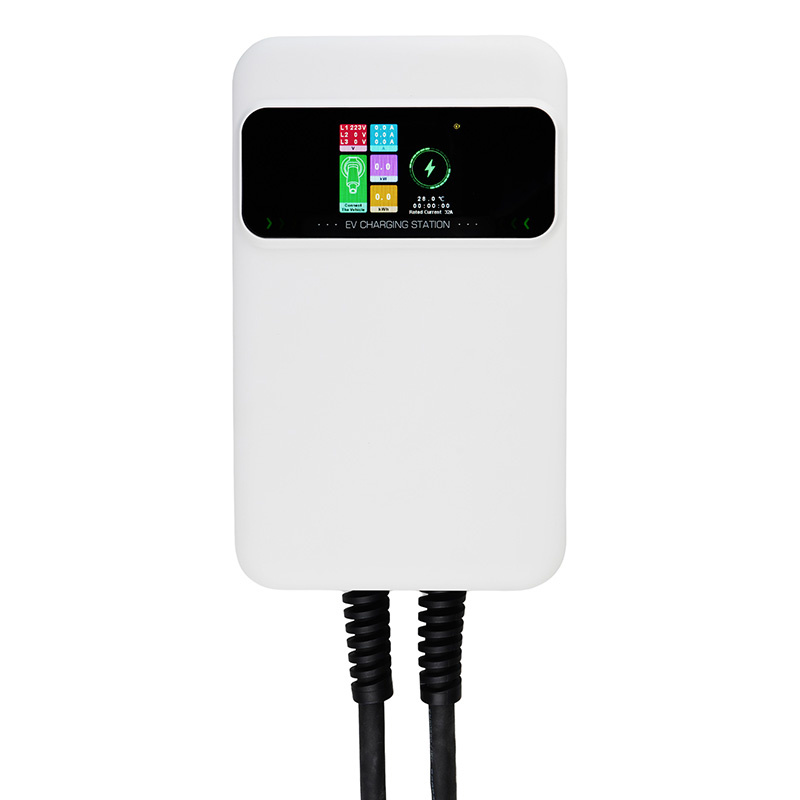

• Display
  3.5-inch color LCD
• App control
  Yes (EVSEMaster app for remote start/stop, scheduling, current adjustment, history)
• Communication options
  Wi‑Fi, Ethernet, 4G, Bluetooth (model-dependent/optional)
• Ingress protection
  IP66
• Impact protection
  IK10 (family specification)
• RCD / Ground fault protection
  Type A or Type A + 6 mA DC (model-dependent); ground-fault detection features listed
• Electrical protections
  Over-voltage, Under-voltage, Overload, Short circuit, Earth leakage/ground fault, Over-temperature, Lightning protection
• Standby power consumption
  < 8 W
• Dimensions (product)
  295 × 195 × 65 mm
• Product weight
  ~8000 g
• Package weight
  ~9000 g (typical boxed weight)
• Mounting
  Wall-mounted (pole/floor mounting optional in family)
• Operating temperature range
  -25°C to +55°C
• Operating humidity
  0–95% non-condensing
• Maximum installation altitude
  < 2000 m
• Certifications (family)
  CE, FCC, CSA, RoHS, ETL, REACH
• Application area
  Home and professional/commercial use

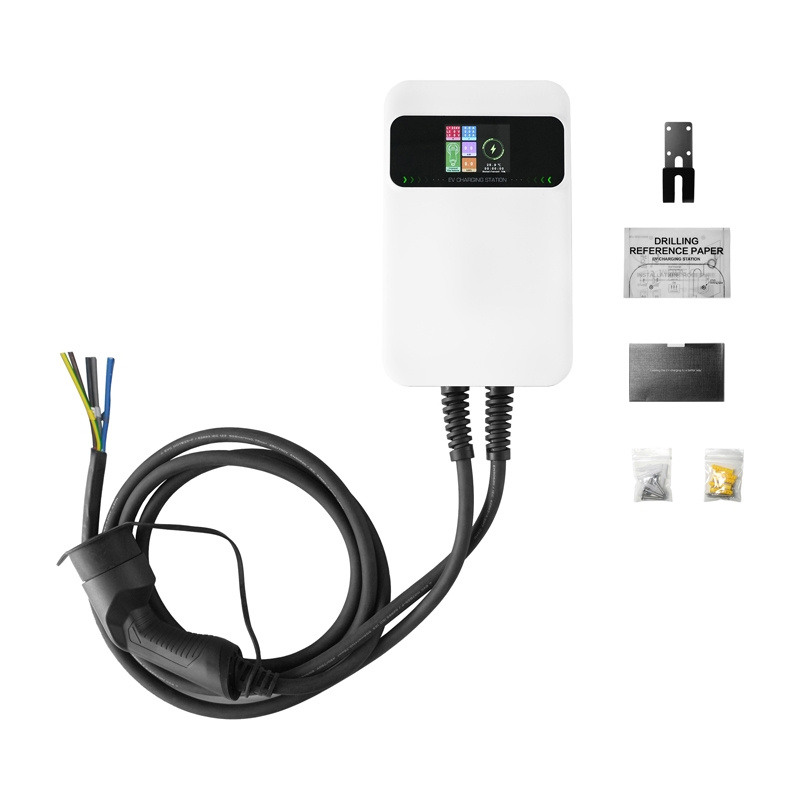

• Included in box
  Charger unit, wall-mounting kit/bracket, user manual, mounting hardware (exact contents may vary by retailer/region)
• Standards compliance
  IEC 62196-2, SAE J1772, GB/T (region-dependent)
