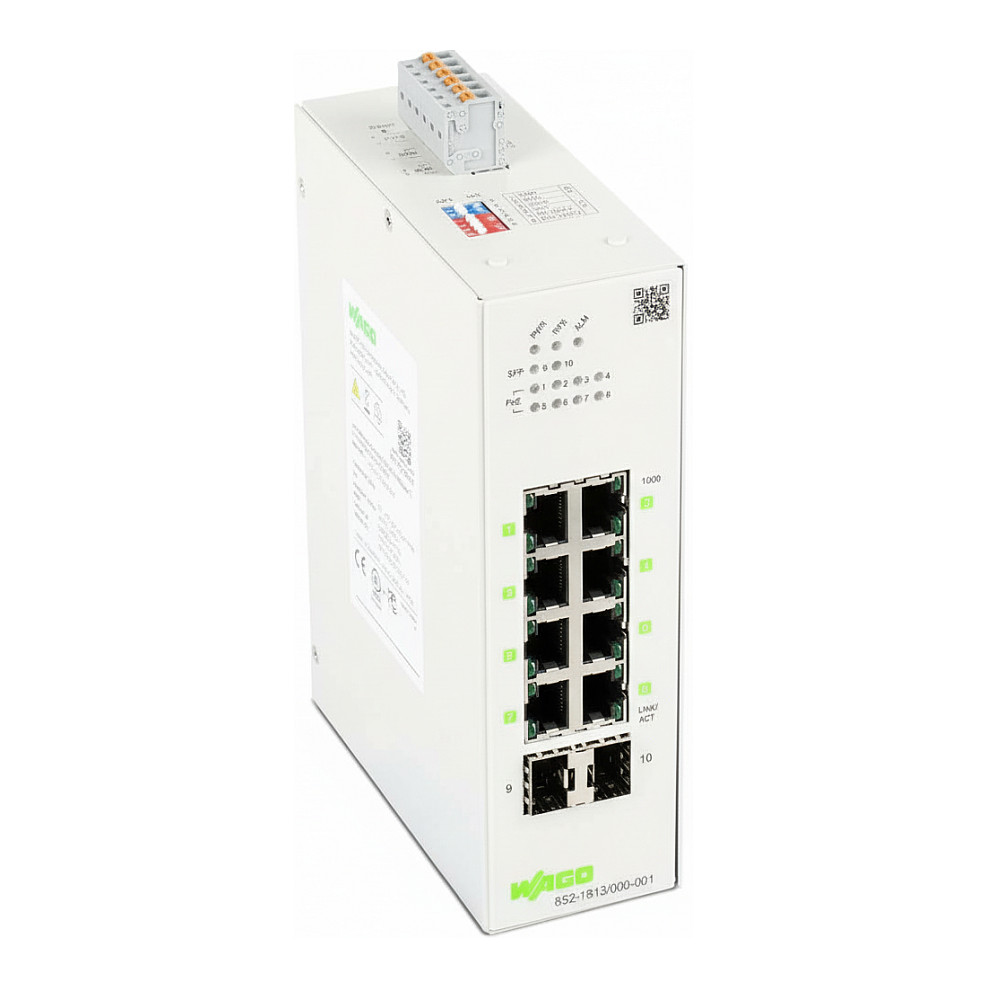

WAGO 852-1813/000-001 Lean-Managed Switch 8 θυρών 1000Base‑T με 2 SFP (1000Base‑SX/L), 8x PoE+

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  WAGO
• Model
  852-1813/000-001
• Product type
  Lean Managed Industrial Ethernet Switch (DIN-rail)
• Ports
  8 x RJ-45 1000Base‑T (10/100/1000 Mbps), 2 x SFP slots (1000Base‑SX/LX)
• Total ports
  10 (8 copper + 2 SFP)
• PoE
  8 x PoE+ (IEEE 802.3at), up to 30 W per port (total PoE budget supports 8 ports at 30 W each reported)
• Switching mode
  Store-and-forward, non-blocking
• Standards
  IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Management & diagnostics
  Modbus TCP, SNMP, syslog, SNMP traps, diagnostics dashboard, topology map, port statistics, traffic monitor
• Redundancy protocols
  STP, RSTP, ERPS v1/v2 (supports up to 2 rings per switch, up to 16 switches per ring, <800 ms switching time)
• Security features
  Access-control list (up to 32 entries), port security, IEEE 802.1X authentication
• VLAN support
  Port-based and tag-based VLANs (reportedly up to 5 VLANs in some listings)
• MAC table size
  8000 addresses
• Jumbo frames
  Up to 10,000 bytes
• Power input
  24–57 VDC nominal (supports redundant DC power)
• Power consumption (no PoE)
  ~13 W
• Power consumption (max PoE load)
  ~253 W (8 PoE+ ports at 30 W each)
• Mounting
  DIN-rail
• Dimensions (H×W×D)
  160 × 50 × 120 mm
• Protection rating
  IP30
• Operating temperature
  −40 to +60 °C (distributor listing)
• Storage temperature
  −40 to +85 °C
• ESD immunity
  8 kV contact / 15 kV air discharge
• Material / Color
  Not explicitly specified in available sources
• Country of origin
  Taiwan
• Compliance
  RoHS
• HS code
  8517.62
• Security advisory
  Reported affected by CVE-2026-3587; vendor recommends firmware update to V1.2.1.S0 or later
