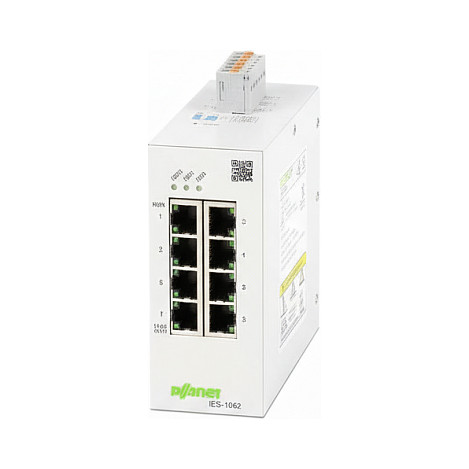

WAGO Lean Managed Switch 852-1812 — Διαχειριζόμενος βιομηχανικός διακόπτης 8 θυρών 1000Base-T (ανοιχτό γκρι)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  WAGO
• Model / MPN
  852-1812
• SKU
  21187454
• EAN / Barcode
  4066966073003
• Product Type
  Lean Managed industrial Gigabit Ethernet switch
• Ports
  8 x RJ45
• Supported Speeds
  10 Mbps, 100 Mbps, 1 Gbps (auto-negotiation)
• Ethernet Standard
  1000Base-T on all 8 ports (also 10/100Base-T supported)
• Management
  Lean-managed (web UI), SNMP v3, SSH/Telnet CLI, Modbus registers
• VLAN
  IEEE 802.1Q VLAN support (up to 5 VLANs)
• Authentication
  IEEE 802.1X
• ACL / Firewall
  Access-control list support (up to 32 entries)
• Port Security
  Supported (port-based restrictions)
• Redundancy / Resilience
  RSTP support, ERPS (up to 2 rings), loop detection
• Diagnostics
  Topology map, diagnostics dashboard, SNMP traps, syslog
• Traffic Features
  Port mirroring, storm control, per-port statistics
• Power Input
  24–48 VDC (supports redundant DC power supplies)
• Monitoring
  Relay-based function monitoring, alarm thresholds
• Energy Efficiency
  Supports Energy Efficient Ethernet (IEEE 802.3az)
• Mounting
  DIN-rail (35 mm)
• Housing Material
  Rugged metal housing
• Ingress Protection
  IP30
• Operating Temperature
  -40 °C to +60 °C
• Typical Use
  Industrial networking, automation applications
• Weight (approx.)
  500 g
