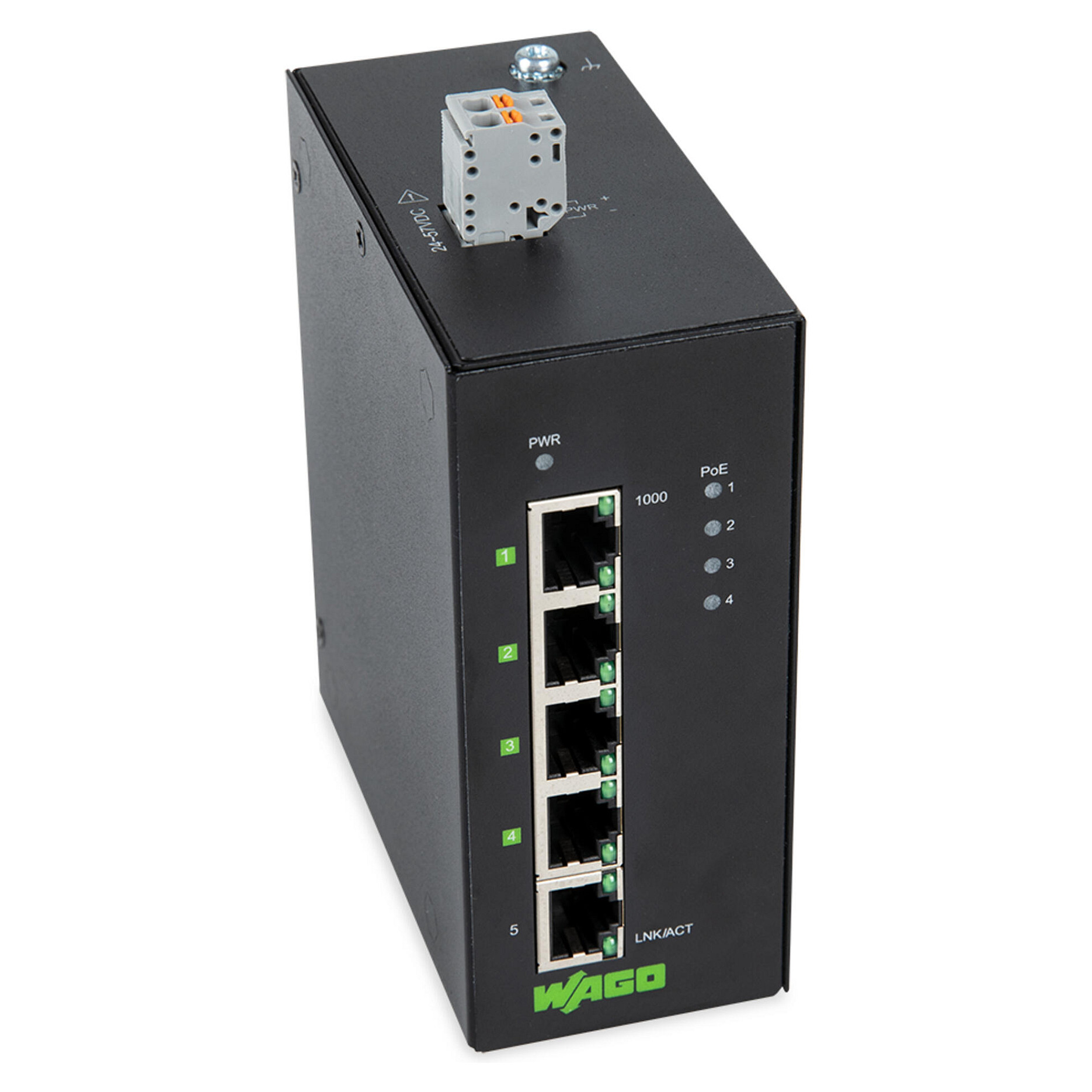

WAGO 852-1411/000-001 INDUSTRIAL-ECO-SWITCH — Βιομηχανικός unmanaged Ethernet switch 5 θυρών, 4x PoE+

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  WAGO
• Model / MPN
  852-1411/000-001
• Product Type
  Industrial unmanaged Ethernet switch (Industrial-ECO-Switch)
• Ports
  5 × 10/100/1000 Mbit/s RJ45
• PoE Support
  4 × PoE+ ports (IEEE 802.3at)
• PoE Power per Port
  Up to 30 W per PoE+ port
• Total PoE Budget
  ~133 W (with 4 PoE ports as per datasheet)
• Switching Method
  Store-and-forward
• MAC Address Table
  Up to 8000 MAC addresses
• Duplex Modes
  Half and Full Duplex
• Auto-Negotiation
  Yes
• Auto-MDI/MDI-X
  Yes
• Flow Control
  IEEE 802.3x (full-duplex)
• Power Input
  24 to 57 VDC
• Power Supply Feature
  Integrated voltage transformer for operation from 24 VDC control-cabinet supplies
• Mounting
  DIN-rail mounting
• Operating Temperature
  -40 to 70 °C
• Storage Temperature
  -40 to 80 °C
• Protection Rating
  IP30
• Overvoltage Protection
  Included
• Dimensions (approx.)
  Height 104 mm; another dimension listed 115 mm (see datasheet)
• Weight
  550 g (device weight)
• Humidity
  Up to 95% relative humidity
• Material / Construction
  Rugged industrial enclosure suitable for control cabinets (metal/plastic composite as typical for DIN-rail switches)

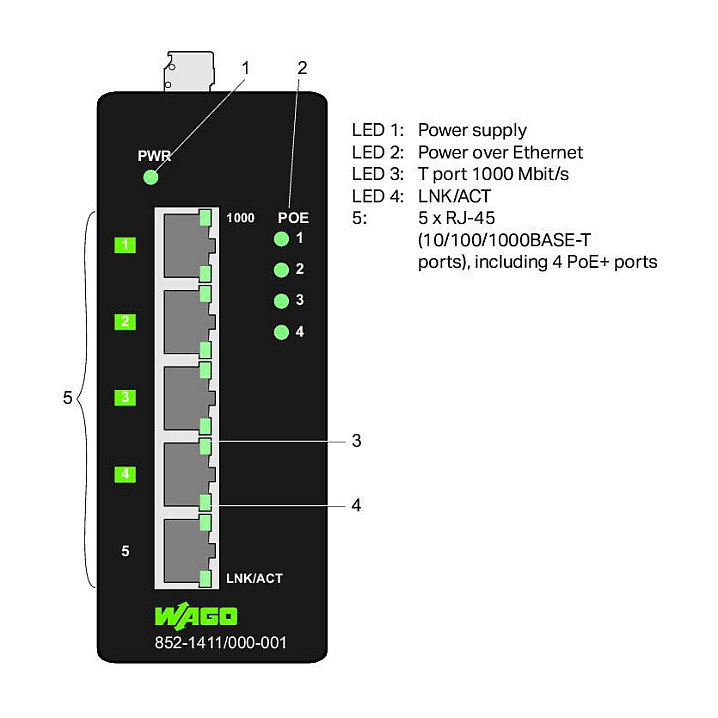

• Indicators
  Front-panel diagnostic LEDs
• Cable Type
  Copper Cat 5e or higher, up to 100 m per port
• Regulatory / Standards
  IEEE 802.3, IEEE 802.3at for PoE+
• Use Cases
  Industrial networks, control cabinets, IP cameras, wireless APs, small/medium network segments requiring PoE
