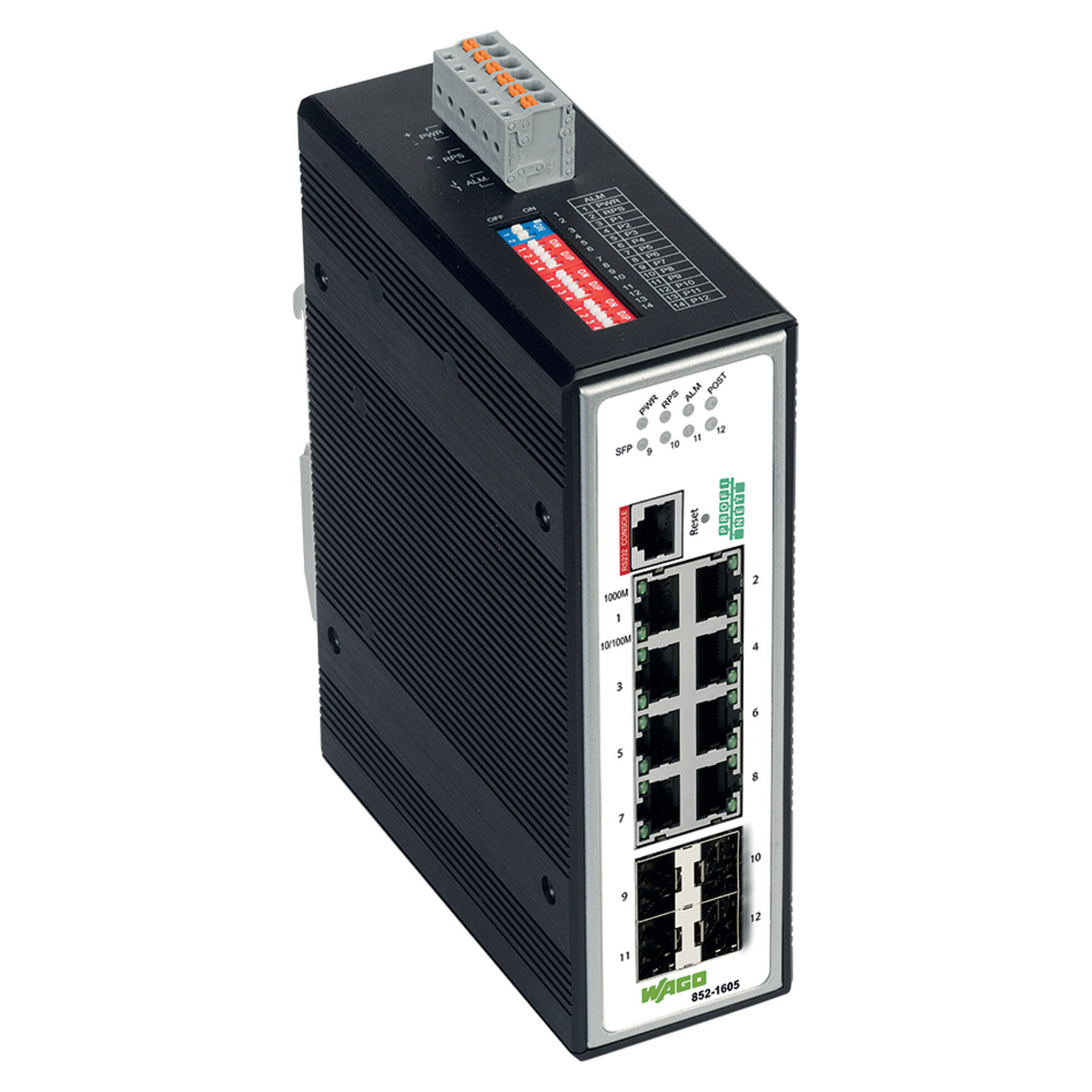

WAGO 852-1605 Βιομηχανικός Διαχειριζόμενος Ethernet Switch

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  852-1605
• SKU
  21187476
• EAN
  4055143918701
• Brand
  WAGO
• Ports (RJ45)
  8 × 10/100/1000BASE-T (Gigabit)
• Ports (SFP)
  4 × 1000BASE-SFP (SX/LX, multi-/single-mode compatible)
• Total Ports
  12 (8 copper + 4 fiber)
• Max Port Speed
  1 Gbit/s per port
• Switching Capacity
  Non-blocking, ~8 Gbit/s aggregate
• Switching Method
  Store-and-Forward, non-blocking
• Power Supply
  Redundant DC 12–60 V inputs
• Power Consumption
  ~18 W (typical)
• Operating Temperature
  -40 °C to +70 °C
• Mounting
  DIN-35 rail and wall mount
• IP Rating
  IP30
• Enclosure Material
  Metal (steel), industrial housing
• Dimensions (W×D×H)
  50 mm × 120 mm × 162 mm
• Weight (product)
  ~950 g
• Standards
  IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.1d/w/s/Q/p
• Industrial Protocols
  PROFINET (Conformance Class B), Ethernet/IP
• Redundancy
  MRP (Manager/Client), RSTP (802.1w)
• VLAN
  802.1Q VLANs (port/protocol-based)
• Multicast
  IGMP Snooping
• Management
  Web GUI, SNMP v1/v2c/v3, RMON, CLI (if applicable)
• Security
  Port security, ACLs, DHCP snooping
• Advanced
  Port trunking/link aggregation, port mirroring, bandwidth limiting, storm control, loop detection
• Accessories/variants
  Variant with USB interface (852-1605/000-001)
• Certifications/Conformance
  PROFINET Conformance Class B (GSD available)
