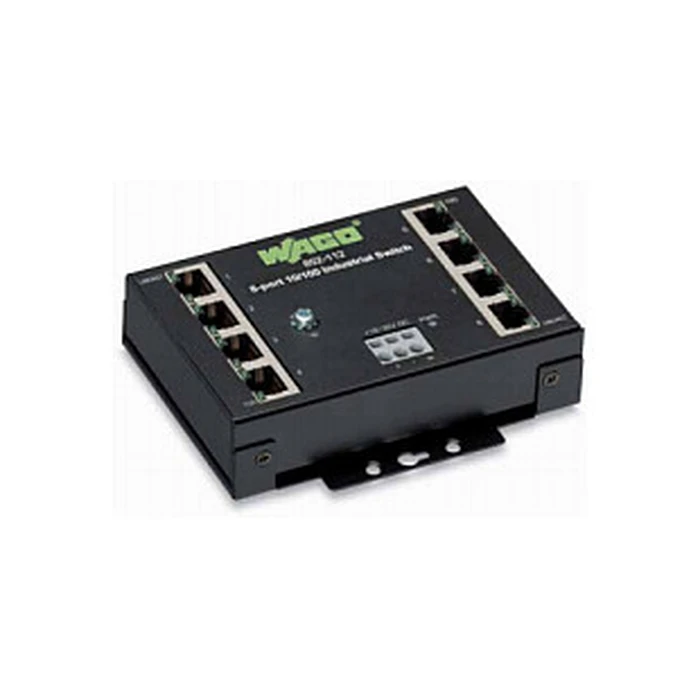

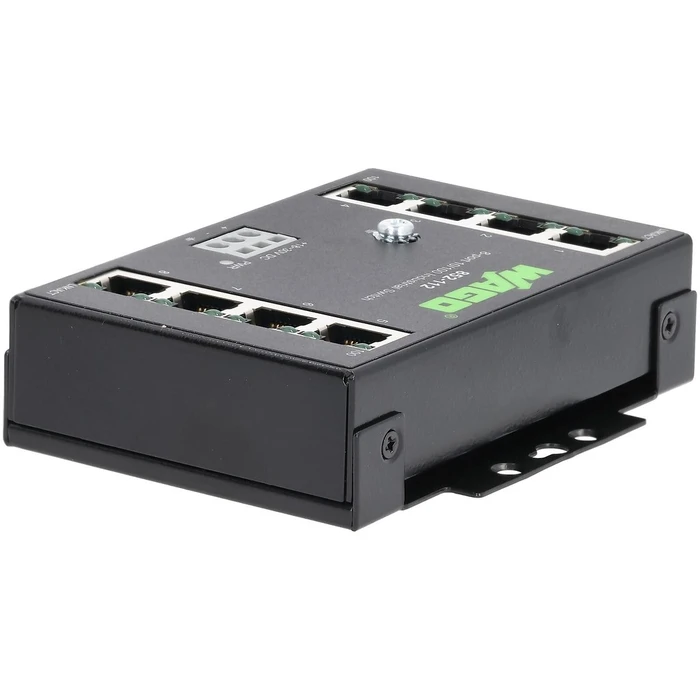

WAGO 852-112 Βιομηχανικός ECO Switch 8 θυρών 100BASE-TX

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  WAGO
• Model
  852-112 (852-112/000-001)
• Product type
  Industrial unmanaged ECO switch
• Ports
  8 x RJ-45
• Port speed
  10/100Base-TX (10/100 Mbps)
• Auto-negotiation
  Yes (all ports)
• Auto MDI/MDI-X
  Yes (all ports)
• Duplex modes
  Half- and full-duplex per port
• Switching method
  Store-and-forward, non-blocking
• MAC address table
  2,000 entries
• Flow control
  IEEE 802.3x (full-duplex)
• Indicators
  Power LED (green); per-port Link/Activity and 100 Mbps LEDs (green)
• Mounting
  DIN-rail (DIN 35)
• Supply voltage
  18–30 V DC
• Max power consumption
  Approximately 3 W
• Protection
  IP30
• Operating temperature
  -40 °C to +70 °C
• Storage temperature
  -40 °C to +80 °C
• Relative humidity
  Up to 95% non-condensing
• Dimensions (W×H×D)
  109.2 × 23.4 × 73.8 mm
• Weight
  415 g
• Max cable length
  100 m (with Cat5/Cat5e/Cat6 copper cables)
• Surge/overvoltage protection
  Yes (built-in)
• Standards compliance
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Color
  Black
• Material (housing)
  Plastic/metal industrial enclosure
• Typical applications
  Industrial Ethernet networks, machine building, factory automation
