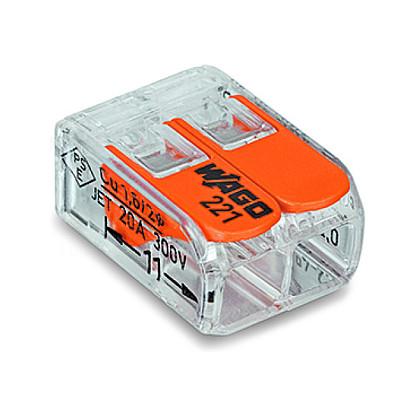

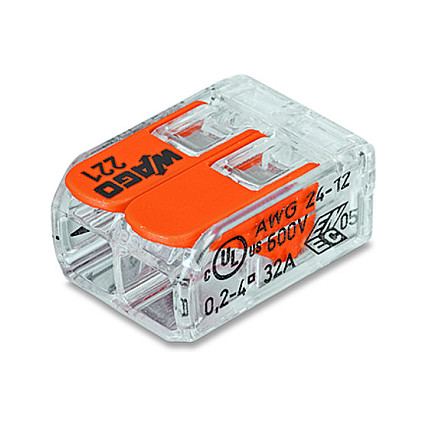

WAGO Serie 221 - 2*4mm (100 τεμάχια) – Συρματωτήρας 2 επαφών, διαφανής σώμα με πορτοκαλί μοχλό

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  WAGO
• Model / MPN
  221-412
• Product type
  221 Series compact 2-conductor splicing connector (lever)
• Pack size
  Jar of 100 pieces
• Connector count
  2
• Nominal cross-section
  4 mm² (12 AWG)
• Conductor compatibility
  Copper; solid/stranded/fine-stranded
• Conductor range (solid/stranded)
  0.2–4 mm² (24–12 AWG)
• Fine-stranded range
  0.14–4 mm²

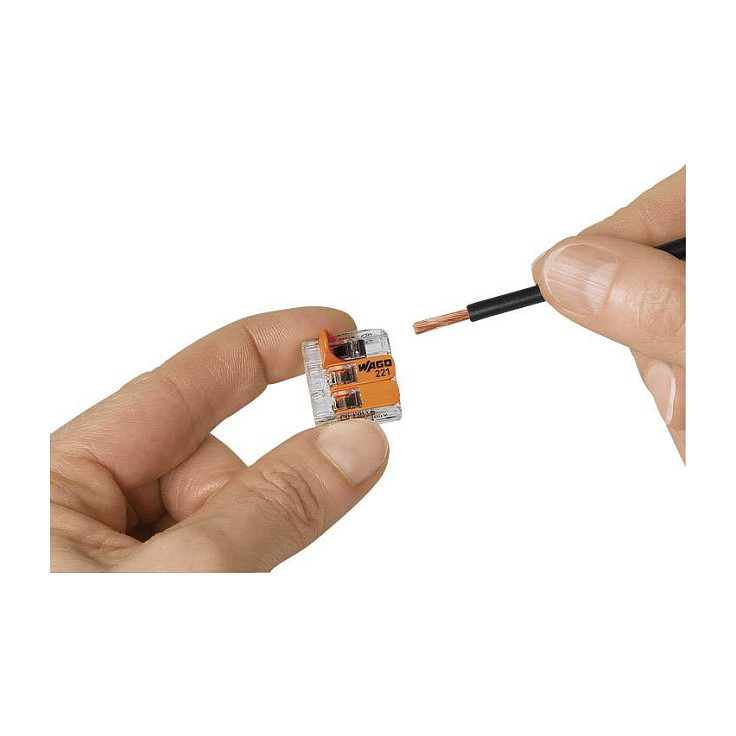

• Strip length
  11 mm
• Rated voltage
  450 V (IEC/EN)
• Rated current
  32 A
• Rated impulse voltage
  4 kV
• Standards / ratings basis
  EN 60664 / IEC/EN 60664-1
• Overvoltage category / pollution degree
  II / 2
• Connection technology
  CAGE CLAMP®
• Actuation type
  Lever (tool-free)
• Wiring direction
  Side-entry
• Housing material
  Polycarbonate (transparent)
• Actuator color
  Orange
• Dimensions (W×H×D)
  ~13.1–13.2 mm × 8.3–8.6 mm × 18.6–18.8 mm
• Single piece weight
  ~1.6–1.7 g
• Flammability class
  UL94 V2
• Ambient operating temperature
  Up to 85°C (T85)
• Continuous operating temperature
  Up to 105°C
• Features
  Tool-free lever operation; reusable; visual inspection through transparent housing; gas-tight, vibration-proof connection; compact for tight spaces

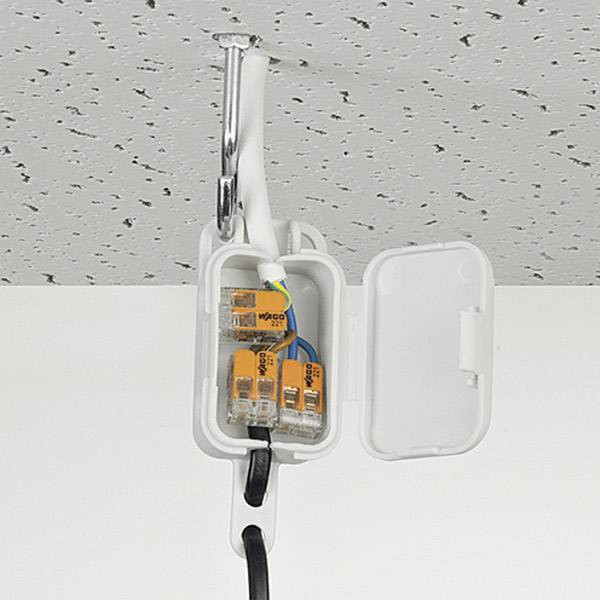

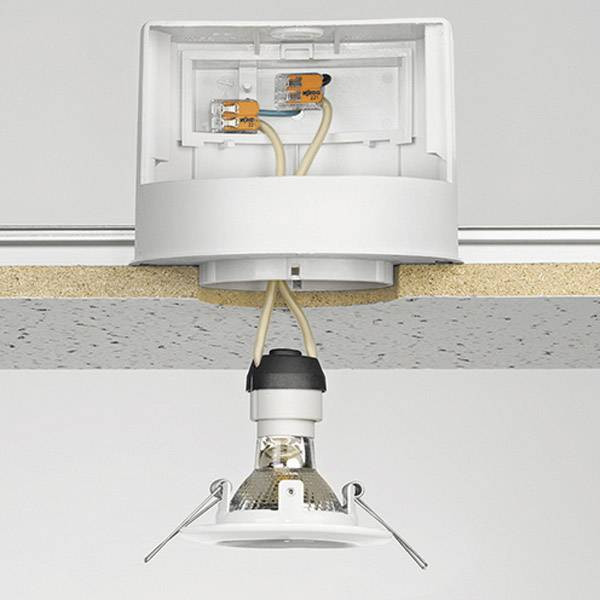

• Typical applications
  Electrical junction boxes, general electrical installations, splicing in tight spaces
