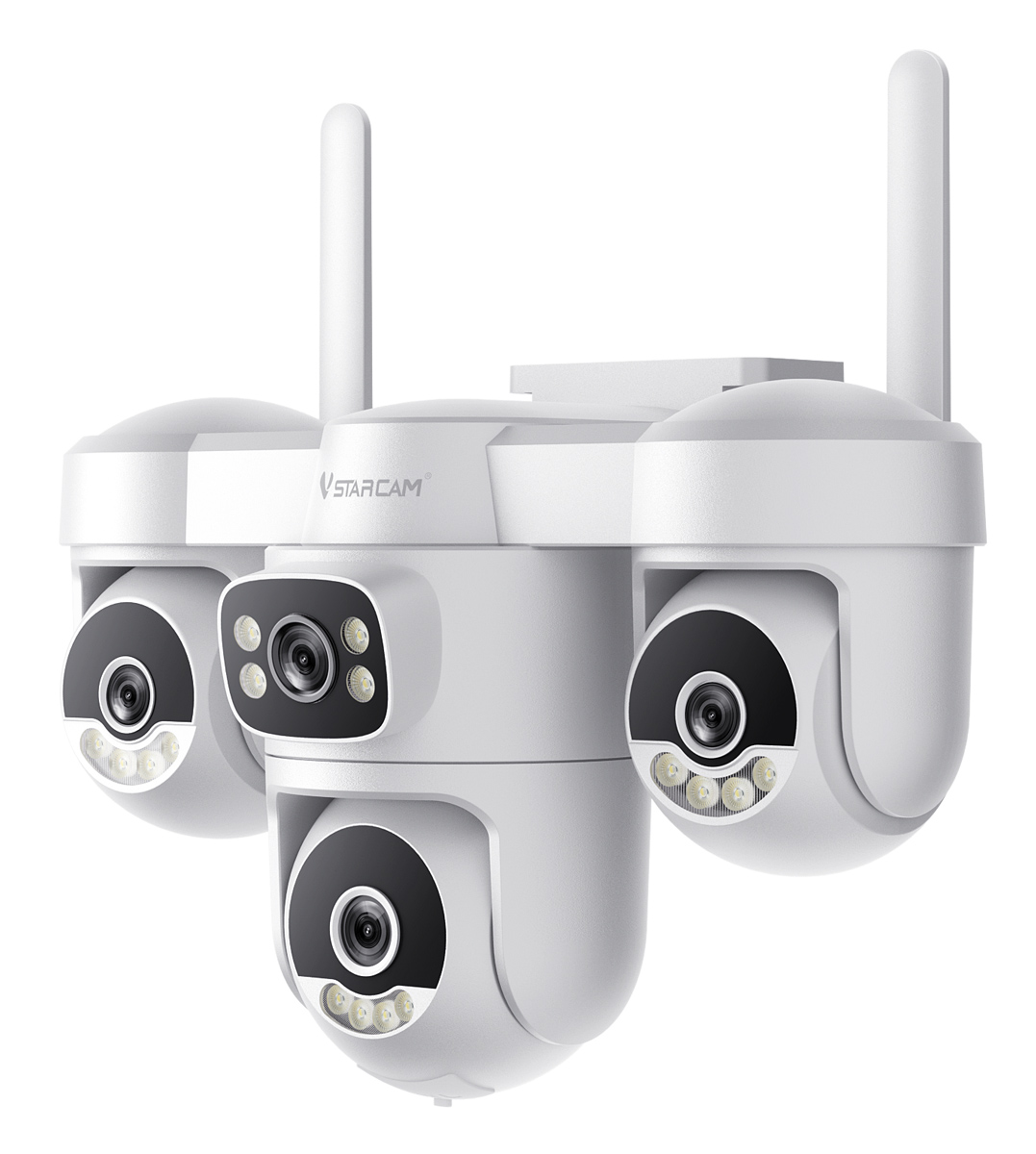

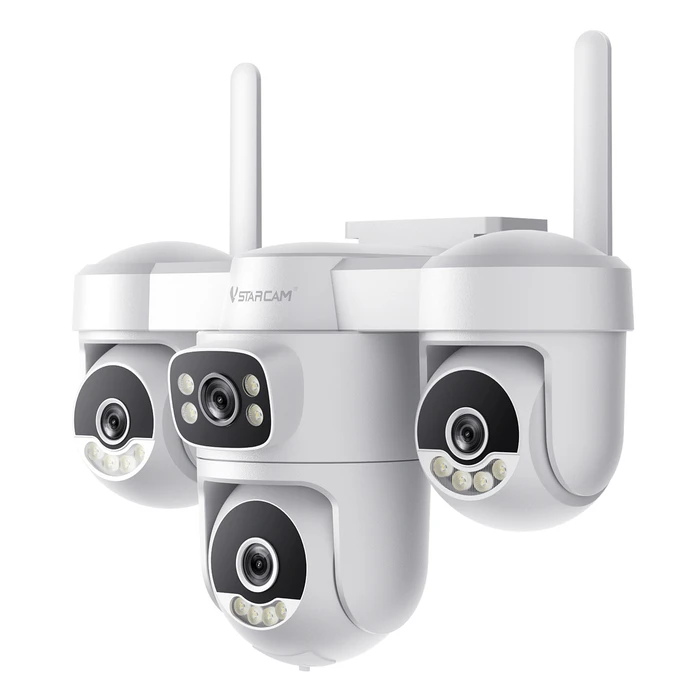

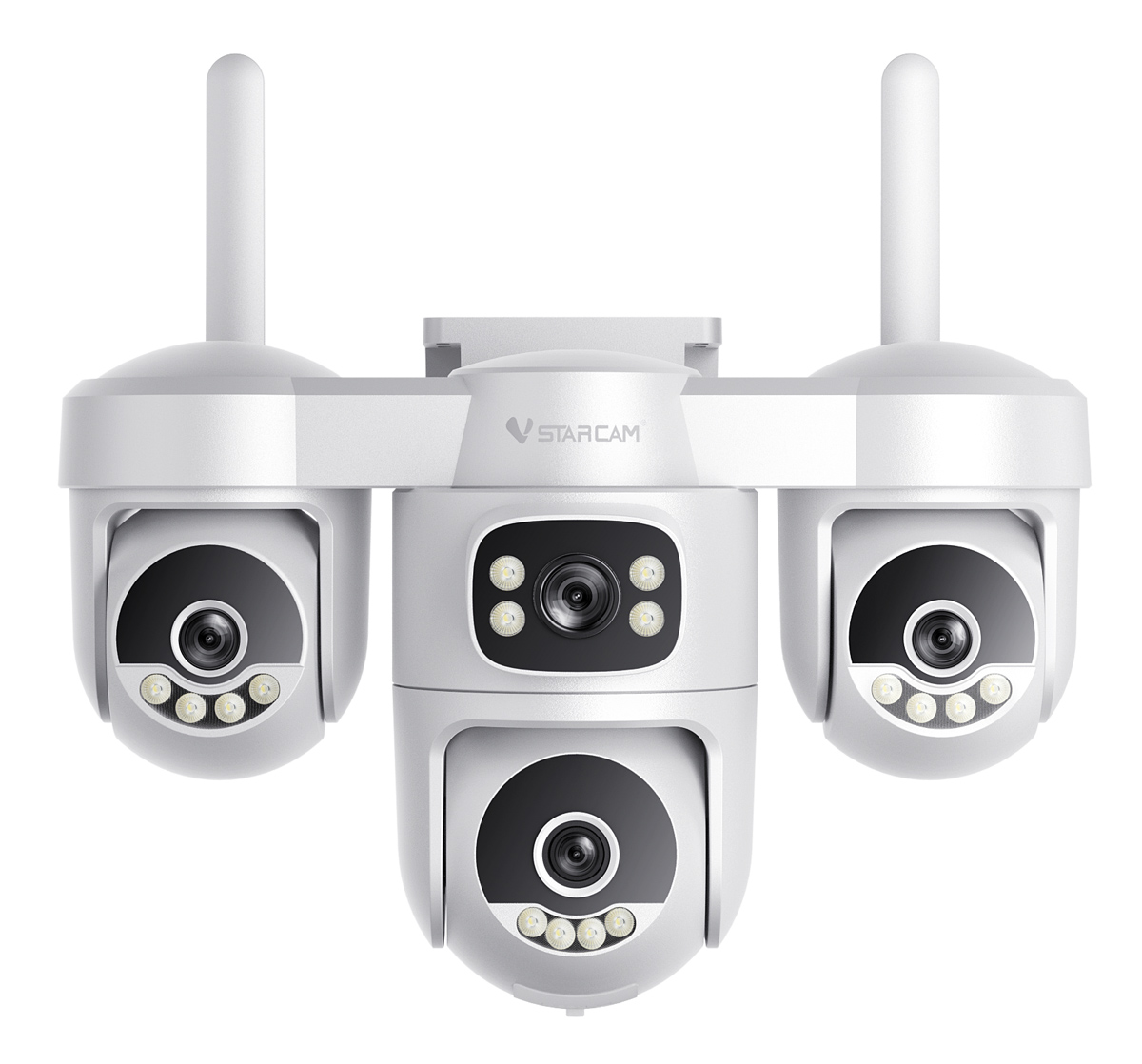

VSTARCAM smart κάμερα CS623FR (4 φακοί, 2MP, WiFi, PTZ, IP66)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VSTARCAM
• Model
  CS623FR
• Type
  Smart outdoor surveillance camera (multi-lens, PTZ)
• Lens
  4 × 4mm, 1G3P
• Image sensor
  1/3.3" 1080p GC20C3 progressive scan CMOS
• Resolution
  2MP (1920×1080)
• Viewing angle
  69°

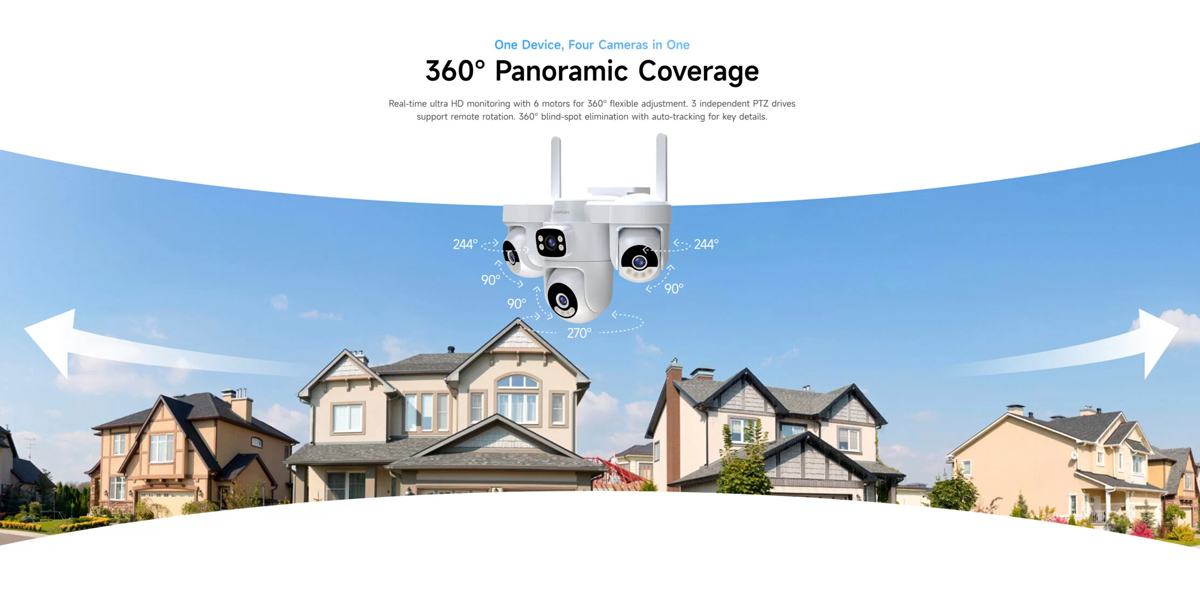

• Pan/Tilt (rotation angle / PTZ camera)
  Horizontal 270°, Vertical 90°
• Panoramic camera angle
  Horizontal 244°, Vertical 90°
• Main stream
  1080P (1920x1080) @ 10 FPS
• Sub stream
  640P (640x360) @ 10 FPS
• Night vision
  Black & white night vision and full-color night vision, 20-30 m
• Min. illumination
  0.5 Lux (color), 0.1 Lux (B/W)
• Compression
  H.265, MJPEG, JPEG
• IR control
  IR-CUT with soft photosensitive control
• Bit rate
  128 ~ 4096 kbps
• Image adjustment
  Brightness, Contrast, OSD display
• Audio input
  Built-in microphone (-38 dB)
• Audio output
  Built-in 2 × 1W speaker
• Audio sampling
  8 kHz / 16 bit
• Audio compression
  G711A
• Alarm features
  Motion detection, human detection, human framing, human tracking, siren alarm, area detection
• Network interface
  10 Mbps / 100 Mbps
• Network protocols
  TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P
• Wireless standards
  IEEE 802.11 b/g/n
• Wireless frequency
  2.4 GHz - 5.8 GHz
• Wireless security
  WEP 64/128, WPA-PSK, WPA2-PSK
• Concurrent online viewers
  Supports 4 visitors simultaneously
• External storage
  microSD (T-Flash) up to 256 GB
• Cloud storage
  Supported (paid plans available)
• Rated voltage
  DC 12V ±5%
• Power consumption
  Typical 8.16W (0.68A), Maximum 14.04W (1.17A)
• Operating temperature
  -10 ~ 55 °C
• Operating humidity
  <90%
• Ingress protection
  IP66 (weatherproof)
• Camera dimensions
  192 × 286 × 173 mm
• Included apps
  VStarcam Ultra (Android, iOS) and PC client (Windows)
• Supported languages / UI
  On-device OSD / app control
• Special features
  Multi-lens panoramic capture, PTZ tracking, human tracking, full-color night mode
