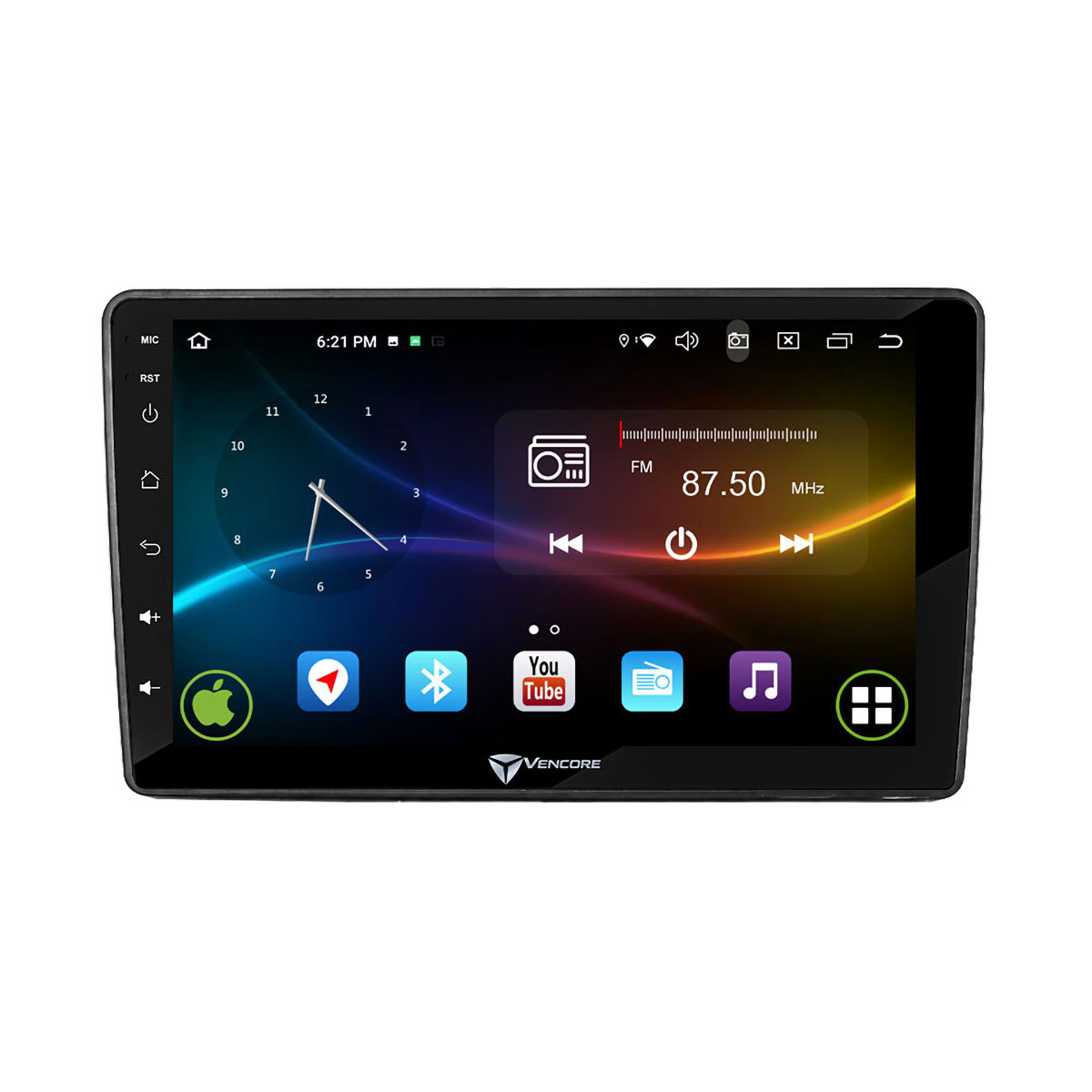

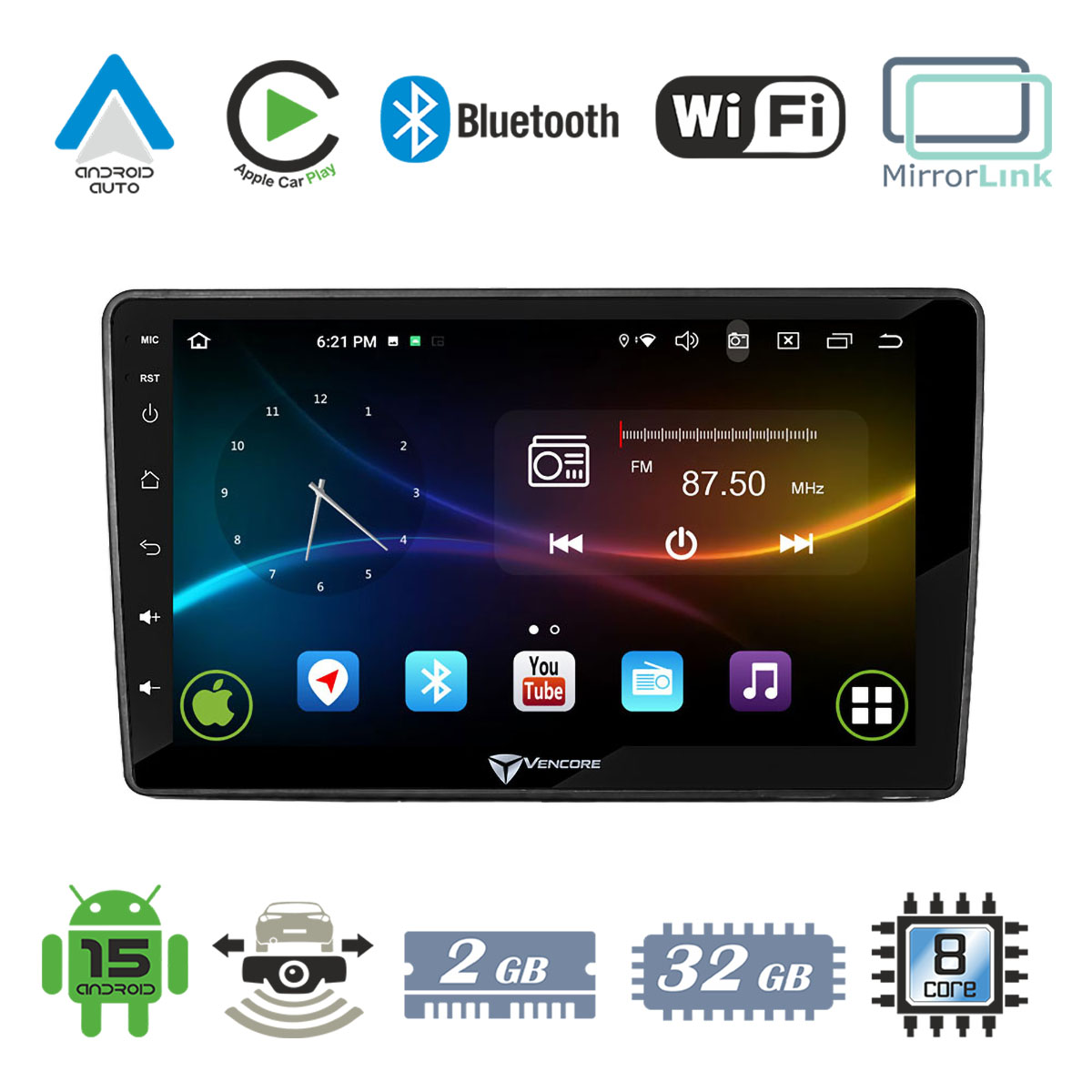

VenCore 3236-10008-0410B - Οθόνη Multimedia Android 15 10.1" για Fiat 500L 2012-2018

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part Number
  3236-10008-0410B (Multimedia model 9109A)
• Product Type
  Android multimedia head unit with 10.1" front panel
• Compatible Vehicles
  Fiat 500L
• Compatible Years
  2012, 2013, 2014, 2015, 2016, 2017, 2018
• Screen Size
  10.1"
• Panel Type
  IPS
• Resolution
  1280 × 720 pixels (HD)
• Touch Type
  Capacitive multi-touch
• Split Screen / Multi-Window
  Yes
• Operating System
  Android 15
• Chipset
  MTK6762
• CPU
  Octa-Core (4× Cortex-A53 @2.0GHz + 4× Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Fast Boot / Sleep Mode
  Yes
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Built-in with external GPS antenna (supports Google Maps)
• CANbus Box
  Included (for steering wheel controls, vehicle data integration)
• Audio Output Power
  4×50W (4.1 channel)
• Audio Output Type
  4.1 Channel, preamp outputs and subwoofer output
• Supported Audio Formats
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• FM Radio
  Yes (RDS)
• FM Stations Memory
  18
• AM Radio
  Yes
• AM Stations Memory
  12
• Rear Camera Input
  AHD / TVI input (supports 720p and 1080p AHD cameras)
• 360° Camera Support
  Not supported
• Front Camera Support
  No
• USB Ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• AUX Input
  Yes
• Video Inputs
  AHD/TVI 1080p capable
• Subwoofer Output
  Yes (RCA)
• Power Supply Voltage Range
  9–14.4 V
• Max Current (fuse rating suggestion)
  10 A
• Operating Temperature
  −20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update Method
  Via USB
• Package Contents

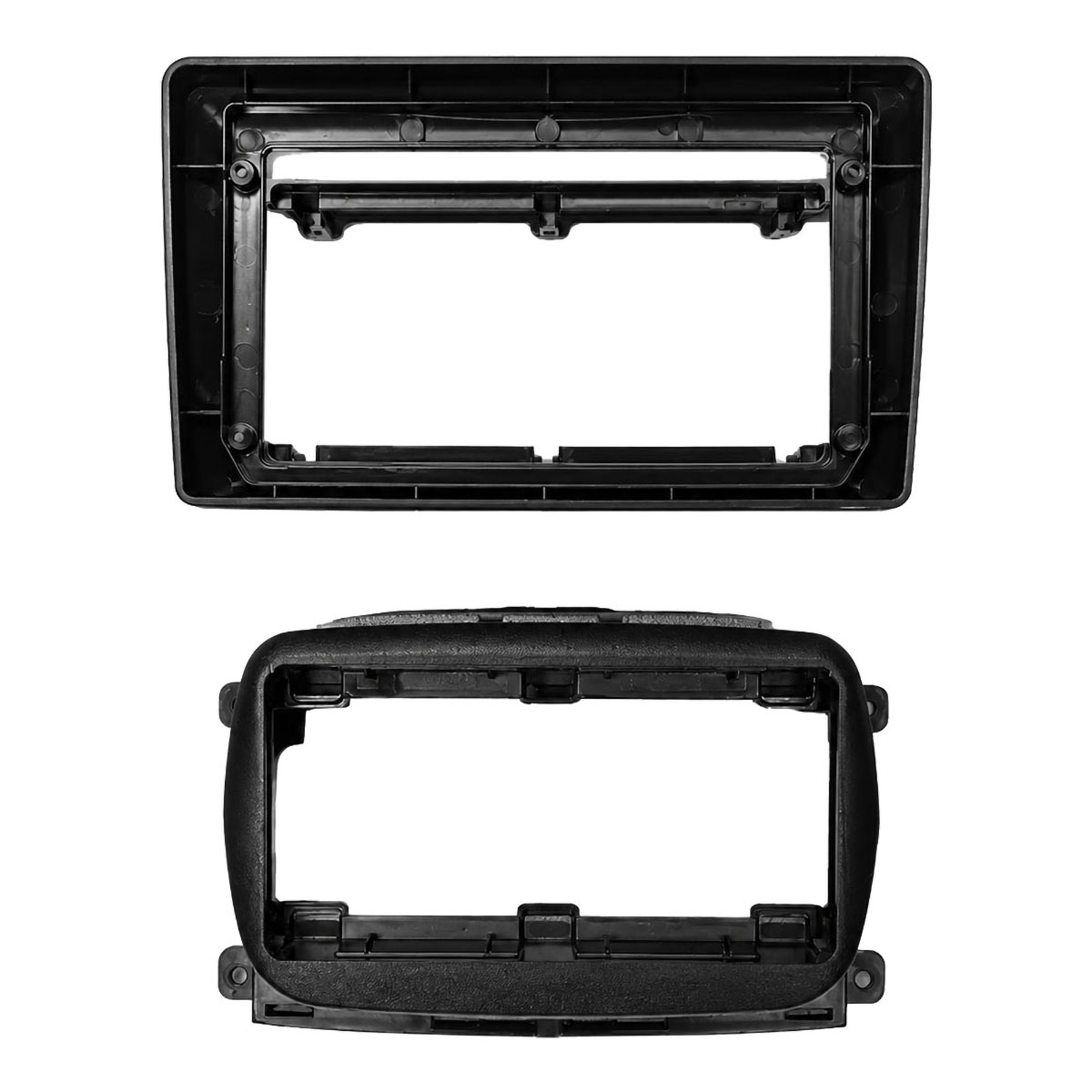

  Multimedia head unit 10"; 10.1" front panel; CANbus Box; Installation frame and brackets; Power cable (ISO); USB adapter cable (4P/6P); Front RCA output cable 20P; AUX input cable; Rear view input & antenna cable 10P; Rear RCA output & CANbus cable 8P; GPS antenna; screws and mounting accessories
