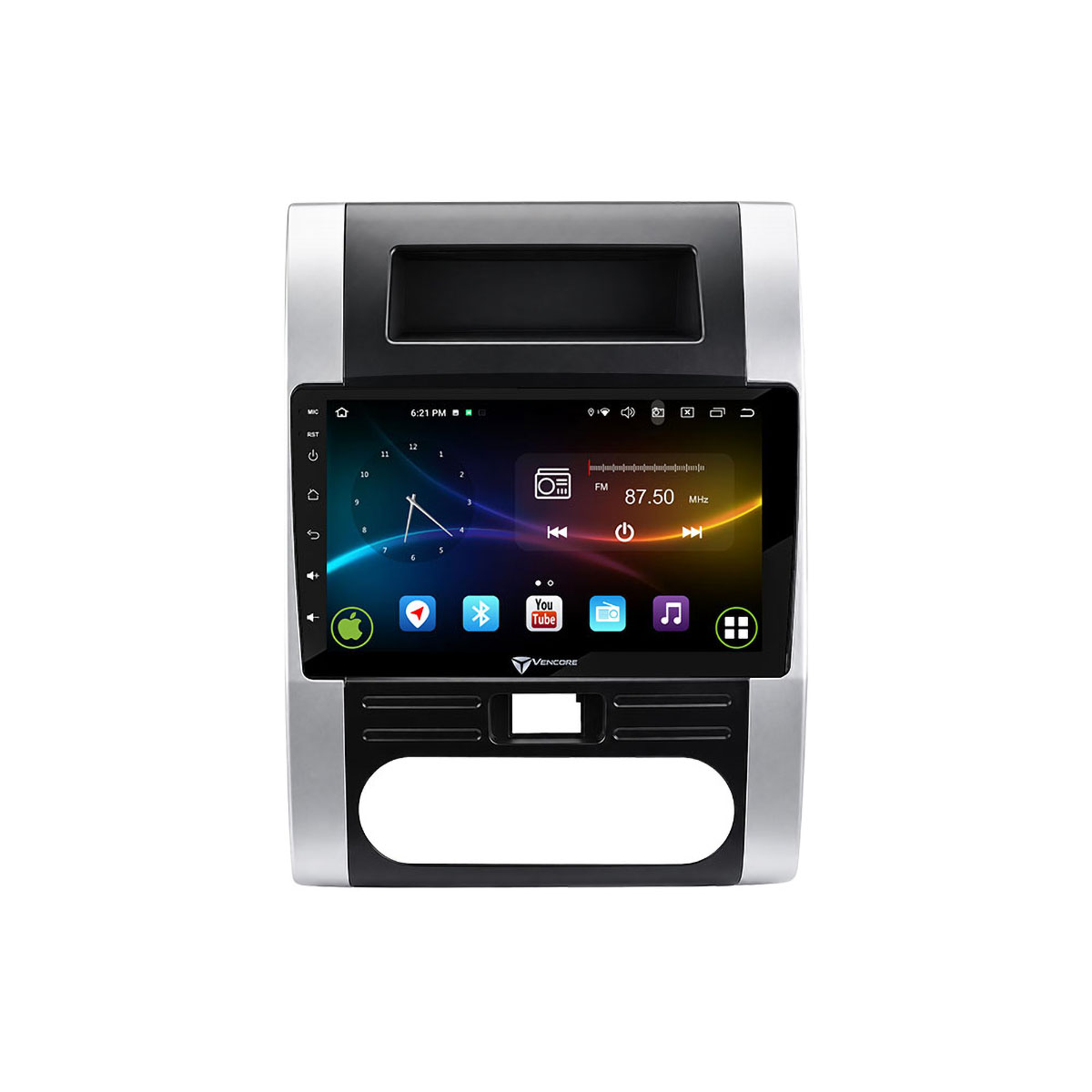

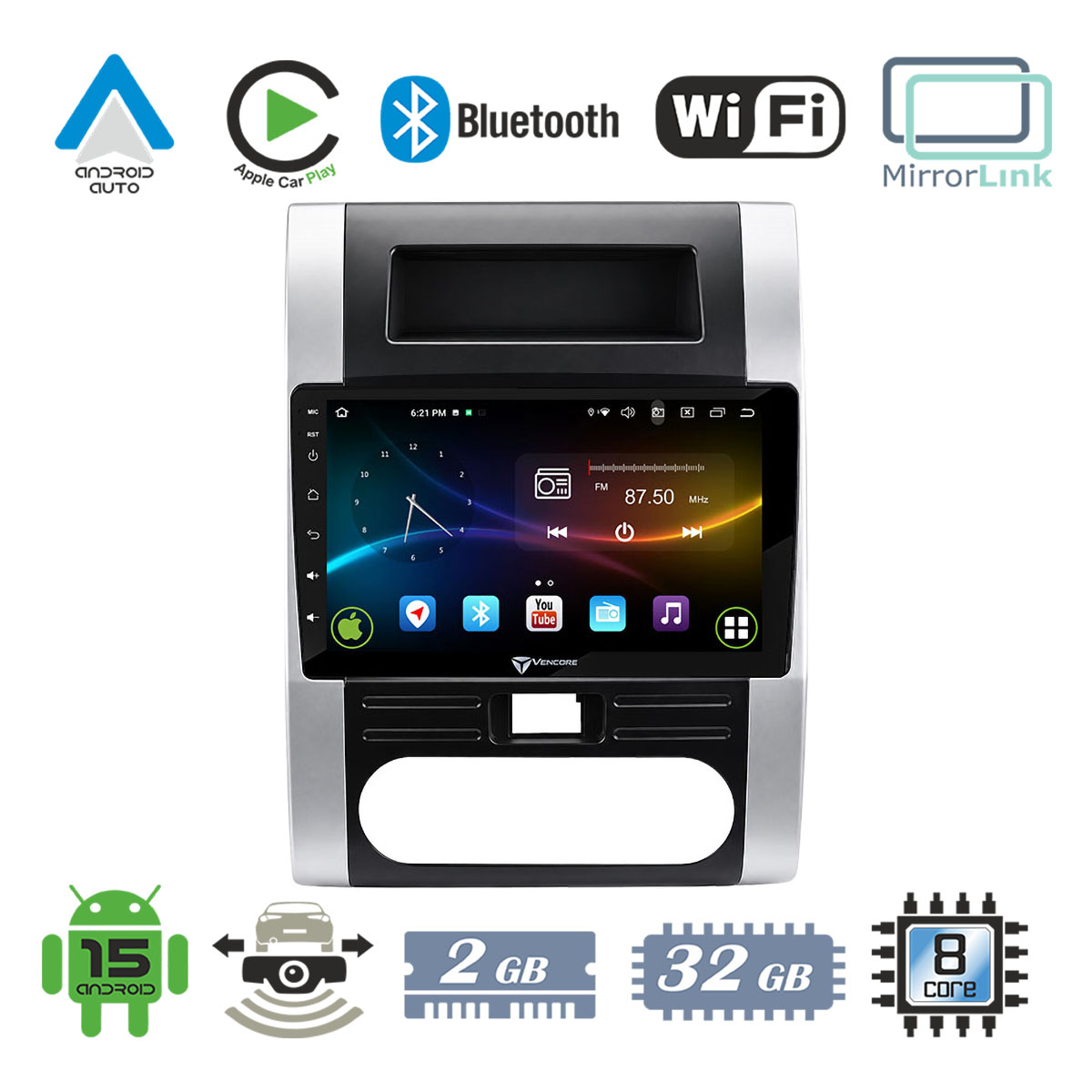

VenCore 3236-10008-0223S - Οθόνη Multimedia Android 15 10.1" για Nissan X-Trail 2007-2013 - Ασημί

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part Number
  3236-10008-0223S
• Product Type
  Multimedia Android Head Unit with Front Fascia and CANbus Box
• Compatible Models
  Nissan X-Trail 2007-2013
• Display Size
  10.1 inches
• Panel Type
  IPS
• Display Resolution
  1280 × 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Multi-Window / Split Screen
  Yes
• Operating System
  Android 15
• Chipset
  MTK6762
• CPU
  Octa-Core (4× Cortex-A53 @2.0GHz + 4× Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, Audio Streaming, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Built-in with external GPS antenna
• Navigation Apps
  Supports Google Maps and third-party navigation apps
• Amplifier / Audio IC
  YD7388
• Audio Output Power
  4 × 50W (4.1 Channel)
• Subwoofer Output
  Yes (preamp/subwoofer output)
• FM Radio
  Yes (RDS) - 18 FM presets
• AM Radio
  Yes - 12 AM presets
• Audio Formats Supported
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• USB Ports
  2 × USB 2.0 (500mA charging output)
• AUX Input
  Yes
• Video Inputs
  AHD / TVI video input (up to 1080p)
• Reverse Camera Support
  AHD 720p / 1080p supported (camera not included)
• 360° Camera System Support
  No
• CANbus Box
  Included (for steering wheel controls and vehicle data integration)
• Steering Wheel Control Support
  Yes (via CANbus)

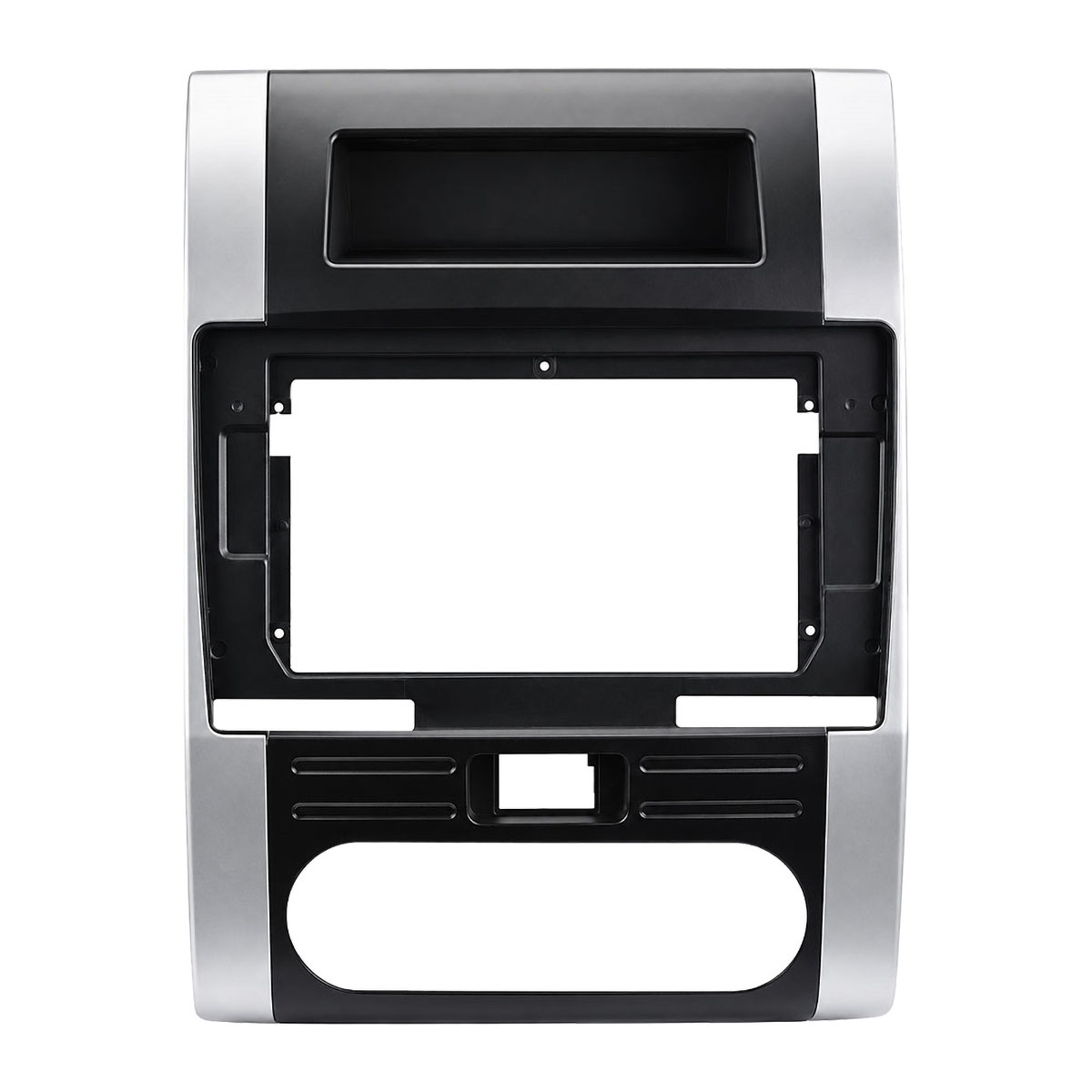

• Front Panel Color / Material
  Silver front fascia (plastic finish)
• Mount Type
  Vehicle-specific OEM-style fascia for Nissan X-Trail
• Power Supply Voltage
  9–14.4 V
• Recommended Fuse / Current
  10 A
• Operating Temperature Range
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update Method
  USB
• Package Contents
  Multimedia head unit 10.1", CANbus box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable, AUX cable, Rear view input & antenna cable, Rear RCA output & CANbus cable, GPS antenna, mounting screws and manual
• Product Weight (approx.)
  1800 g
• Package Weight (set)
  2500 g
