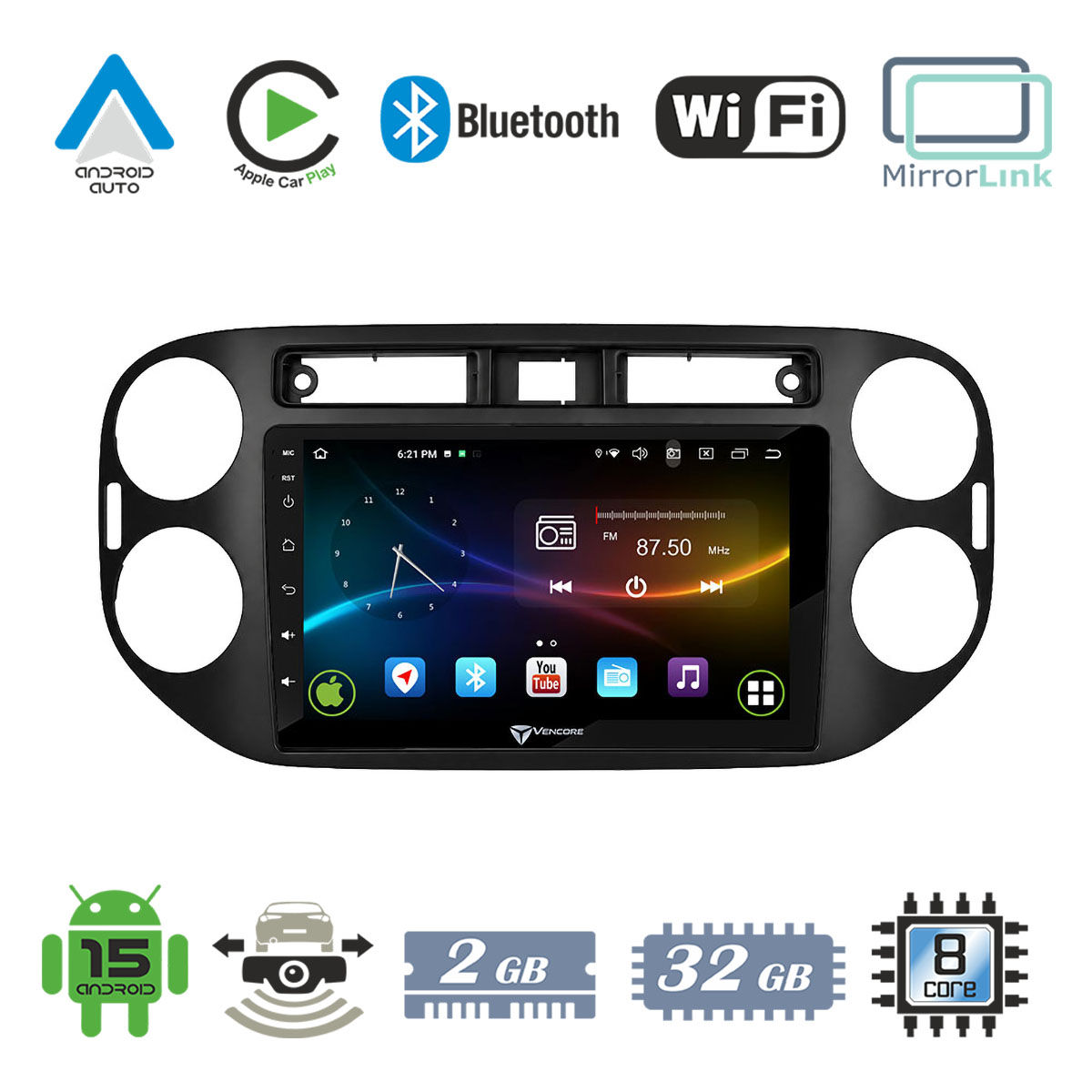

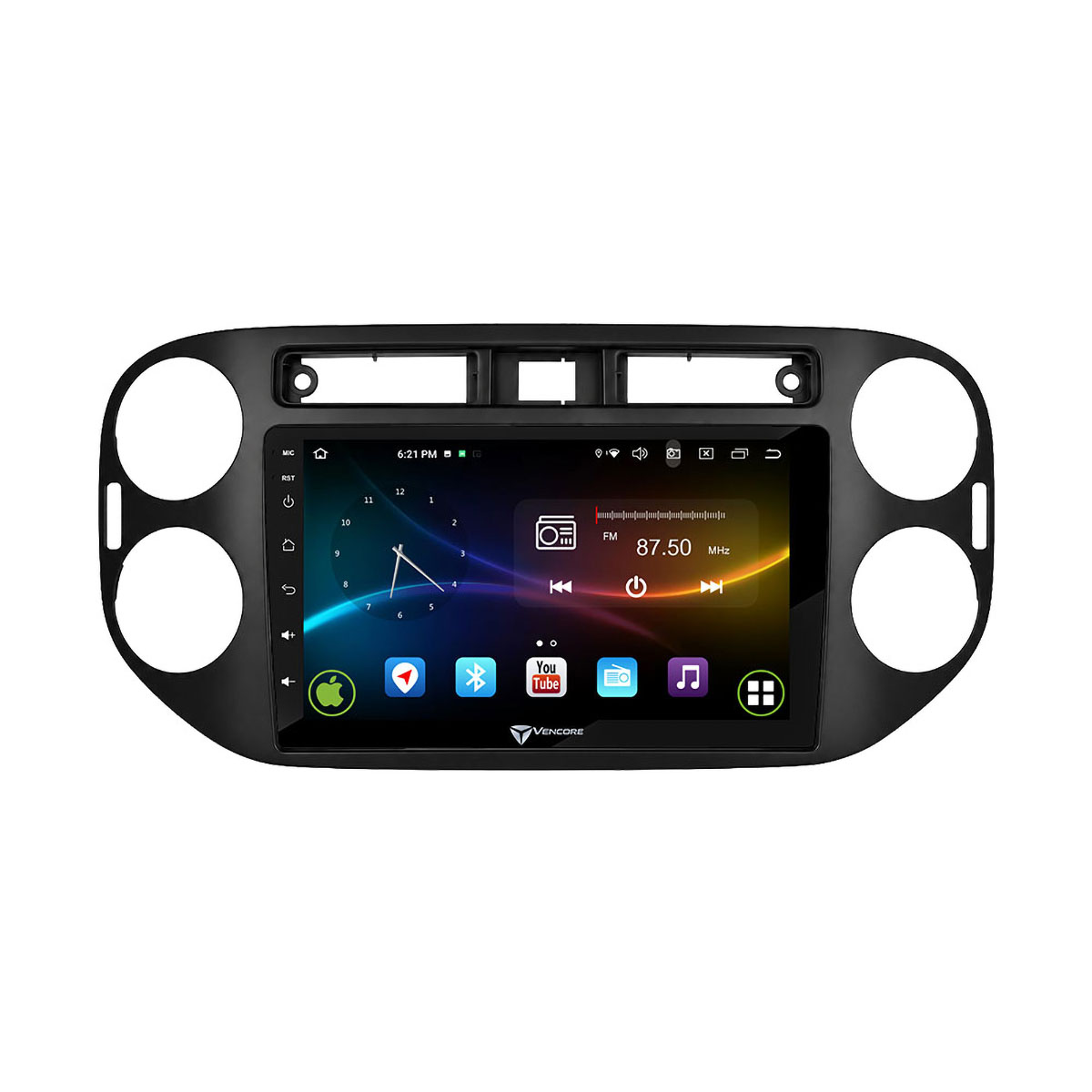

VenCore 3236-10007-0639B - Οθόνη Multimedia Android 15 9" για VW Tiguan 2008-2016 με Πρόσοψη, CarPlay, Android Auto και Υποστήριξη Κάμερας Οπισθοπορείας AHD

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part Number
  3236-10007-0639B
• Product Type
  9" Android Multimedia Head Unit with Facia and CANbus Box for VW Tiguan
• Compatible Vehicles
  Volkswagen Tiguan (2008-2016)
• Screen Size
  9 inches
• Panel Type
  IPS
• Resolution
  1280 x 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Split Screen / Multi-Window
  Yes
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  Bluetooth 5.0 (Hands-Free, A2DP)
• Smartphone Connectivity
  Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink
• GPS
  External GPS antenna included; supports Google Maps
• Built-in Amplifier
  YD7388, 4 x 50W, 4.1 Channel
• Audio Formats
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• FM Radio
  FM with RDS (18 presets)
• AM Radio
  Yes (12 presets)
• Camera Input
  AHD / TVI video input; supports 720p and 1080p rear cameras
• 360° Camera
  Not supported
• USB Ports
  2 x USB 2.0 (USB firmware update supported)
• USB Charging Output
  500 mA
• AUX Input
  Yes
• RCA Outputs
  Front and Rear RCA outputs
• Subwoofer Output
  Yes (dedicated)
• CANbus
  CANbus Box included (retains steering wheel controls and instrument integration)
• Power Supply
  9 – 14.4 V
• Recommended Fuse / Max Current
  10A
• Operating Temperature
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Color
  Black
• Package Weight
  2.50 kg
• Accessories Included

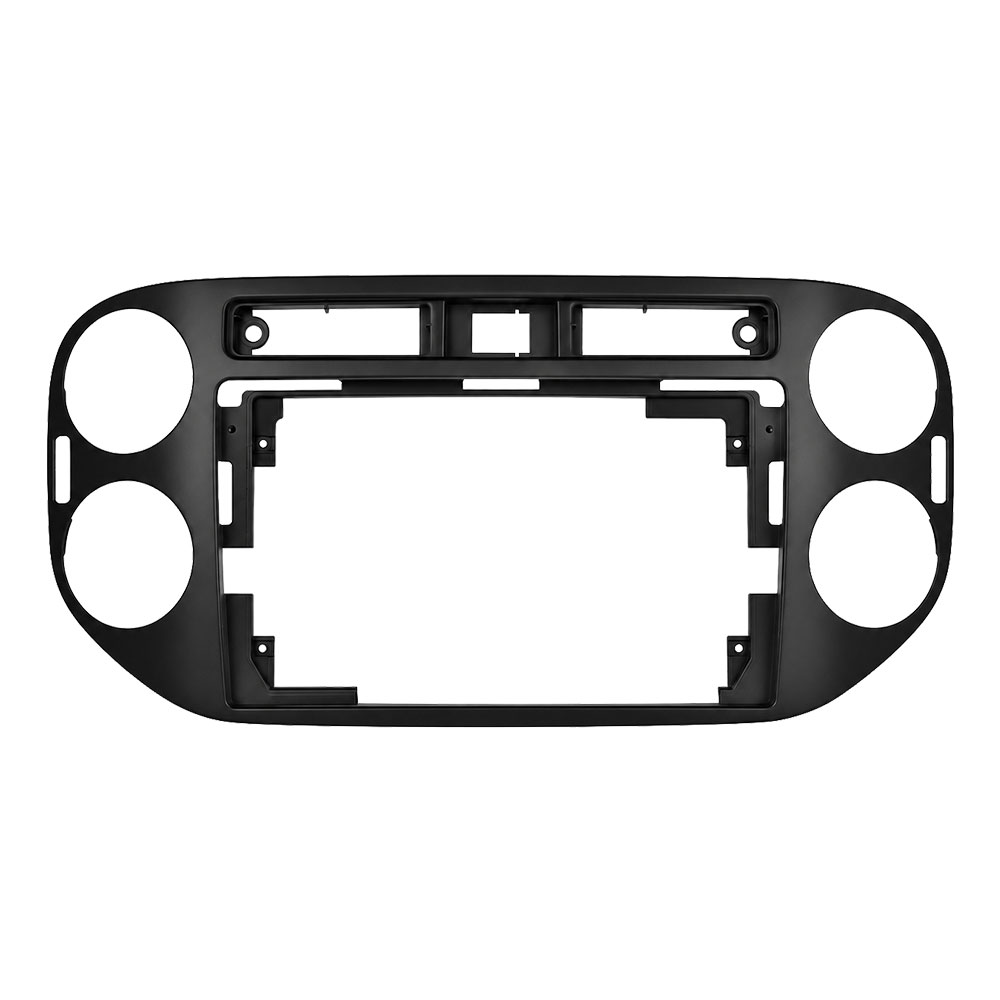

  CANbus Box; Multimedia head unit 9" facia for VW Tiguan; Power Cable ISO; USB Adapter Cable 4P/6P; Front RCA Output Cable 20P; AUX Input Cable; Rear View Input & Antenna Cable 10P; Rear RCA Output & CANbus Cable 8P; GPS antenna; mounting screws
