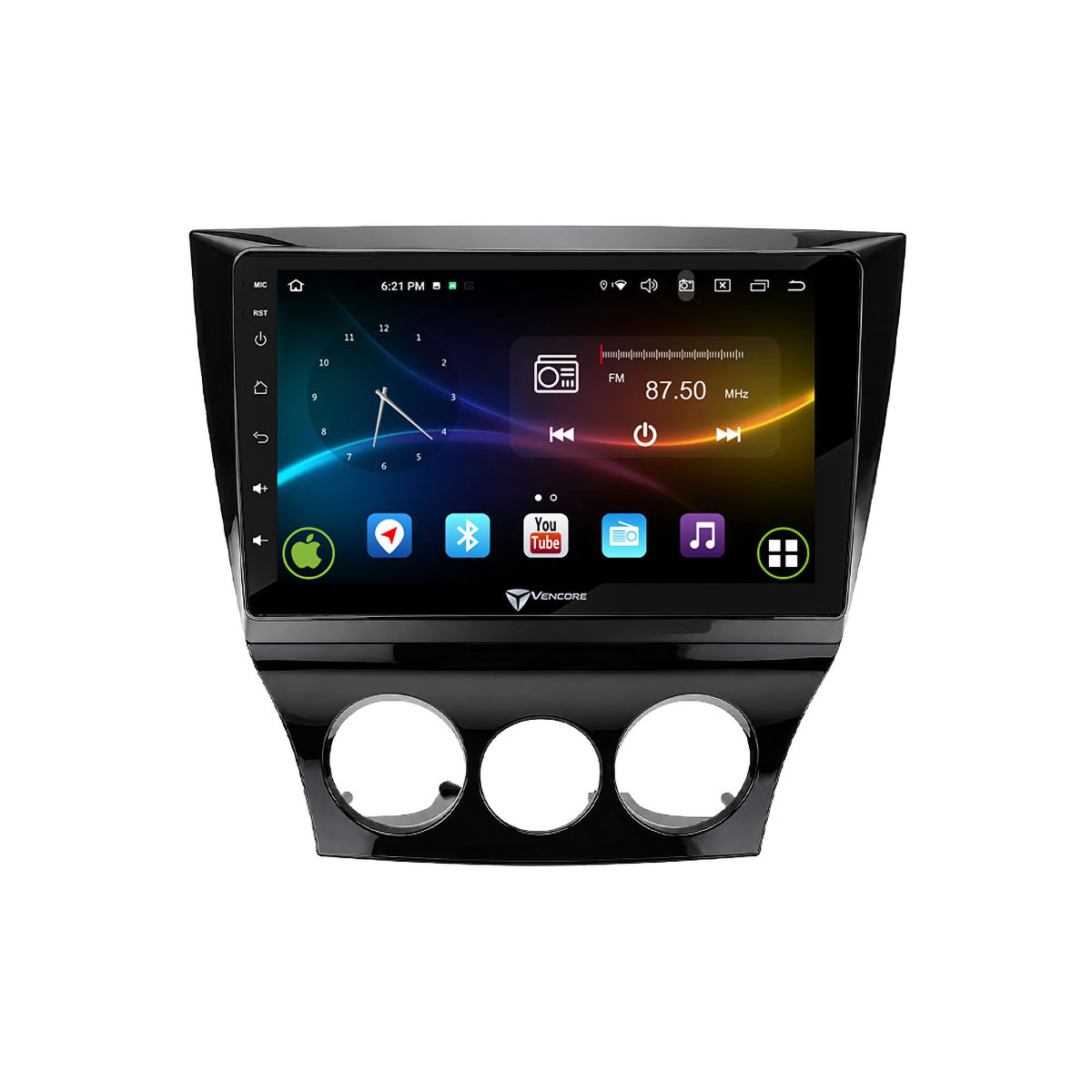

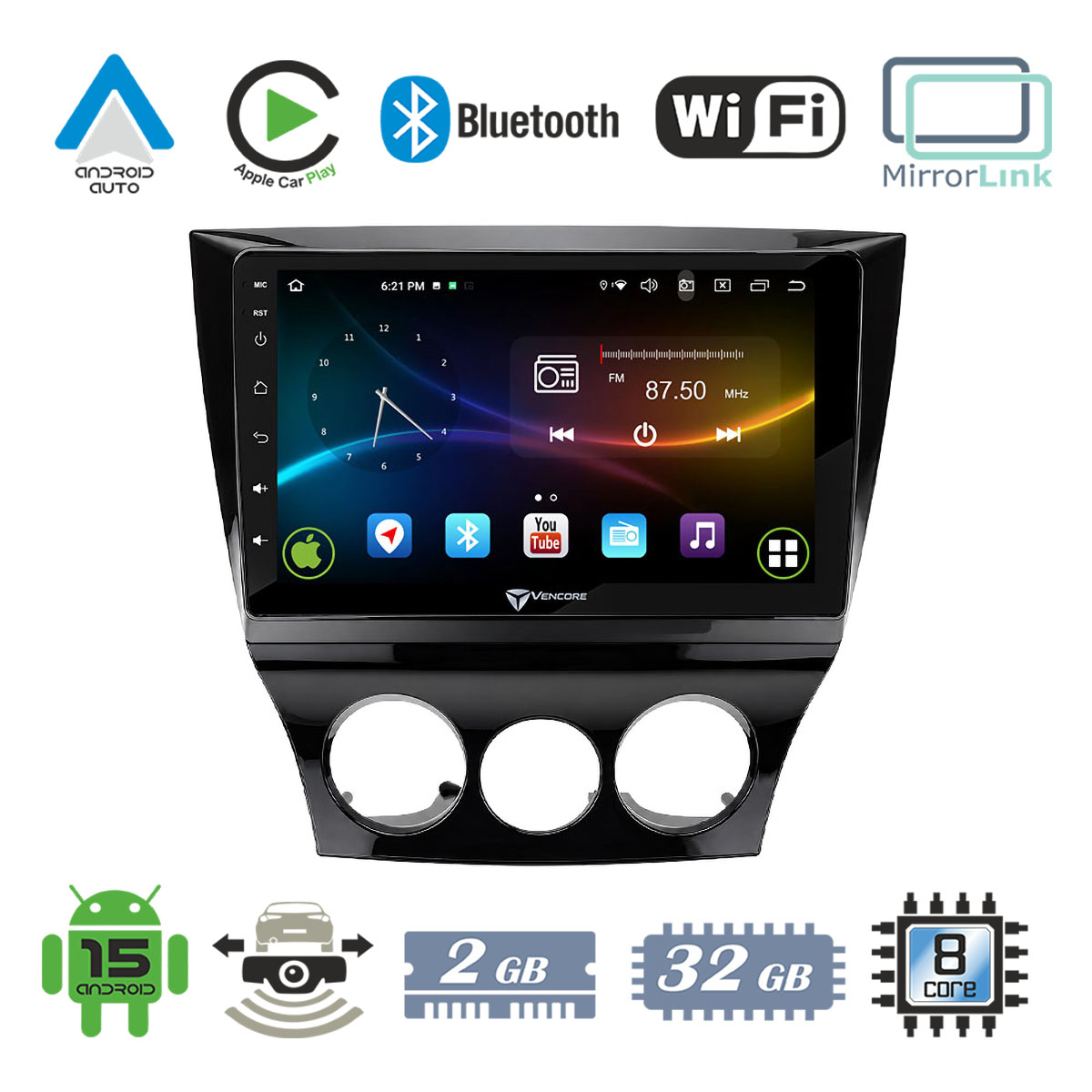

VenCore 3236-10007-0452B - Οθόνη Multimedia Android 15 9" 9109A MTK6762 Octa-Core 2GB/32GB IPS με Πρόσοψη, CarPlay, Android Auto και Υποστήριξη Κάμερας Οπισθοπορείας AHD για Mazda RX8 2008-2012 – Μαύρη

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part Number
  3236-10007-0452B
• Multimedia Model
  9109A
• Product Type

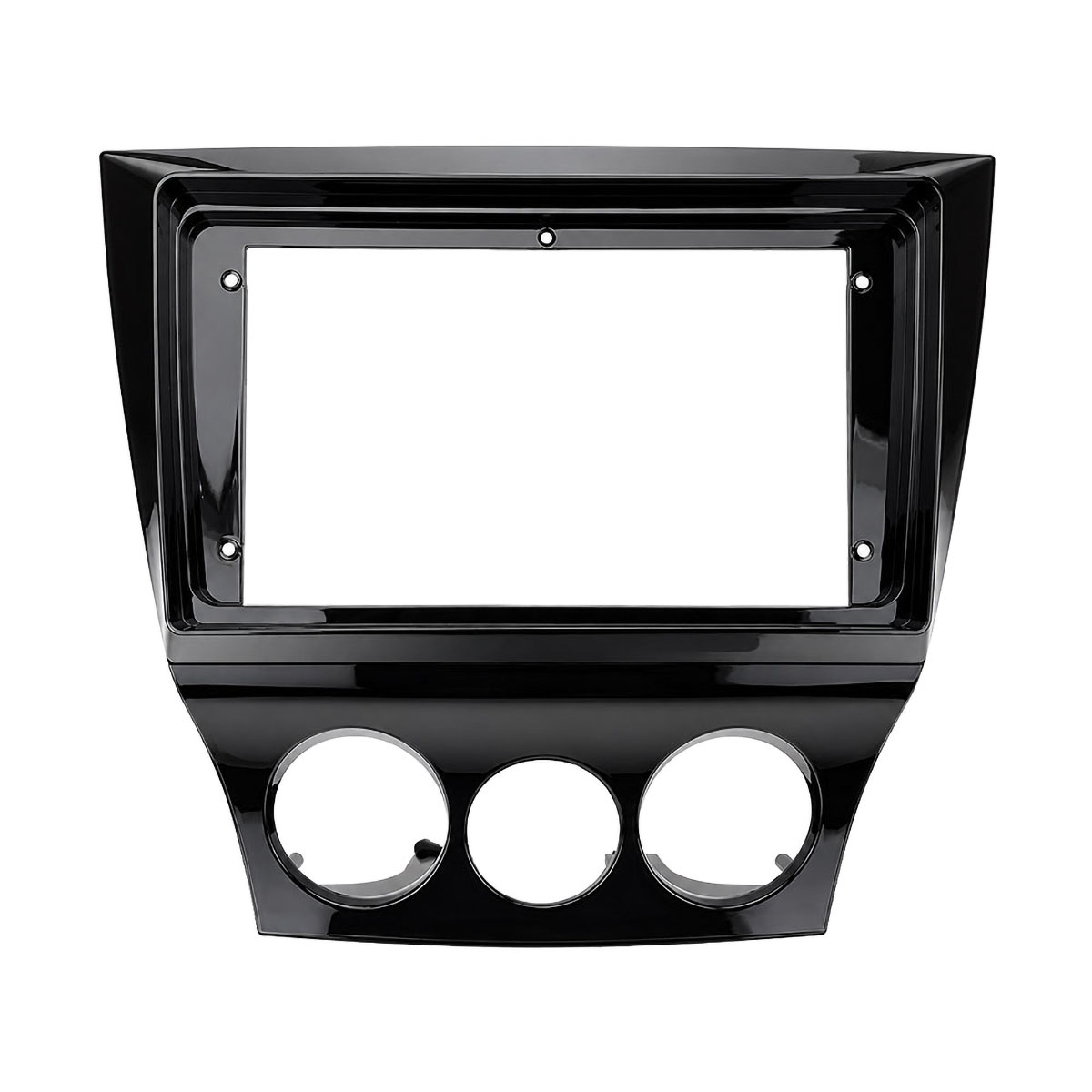

  Android multimedia head unit with front panel (9") and CANbus Box
• Compatible Vehicle
  Mazda RX-8
• Compatible Years
  2008-2012
• Color
  Black
• Screen Size
  9 inches
• Panel Type
  IPS
• Resolution
  1280 x 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Android Version
  Android 15
• Chipset
  MTK6762 Octa-Core (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Fast Boot / Sleep Mode
  Yes
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Yes (external GPS antenna included)
• Navigation
  Supports Google Maps and offline navigation apps
• Audio Amplifier Model
  YD7388
• Audio Output Power
  4 x 50W
• Audio Channels
  4.1 Channel
• External Subwoofer Support
  Yes
• FM Radio
  Yes (RDS, 18 FM presets)
• AM Radio
  Yes (12 AM presets)
• Audio Formats Supported
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• Camera Input
  AHD / TVI video input (720p / 1080p)
• Rear Camera Support
  Yes (AHD), 360° camera system support possible
• 360° Camera Compatibility
  Yes (interface ready)
• CANbus
  Included (preserves steering wheel controls and original vehicle settings)
• USB Ports
  2 x USB 2.0 (charging output 500mA)
• AUX Input
  Yes
• RCA Outputs
  Front RCA output (cable included)
• Subwoofer Output
  Yes (external subwoofer output)
• Power Supply Voltage
  9–14.4 V
• Recommended Fuse/Max Current
  10 A
• Operating Temperature Range
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Package Contents
  9" multimedia head unit, CANbus Box, 6-pin multimedia harness, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable (20P), AUX input cable, Rear view input & antenna cable (10P), Rear RCA output & CANbus cable (8P), GPS antenna, manual
• Set Weight
  2500 g
