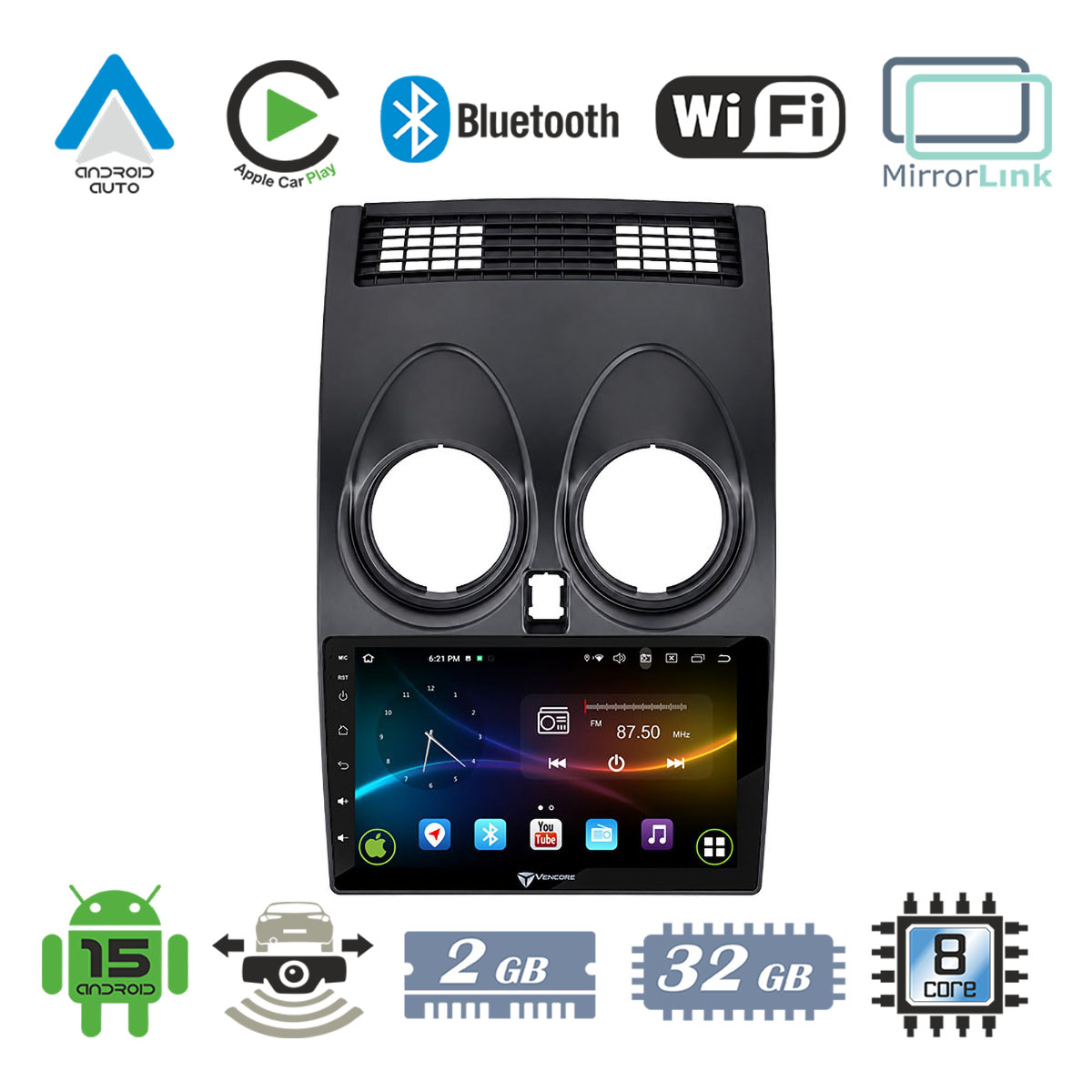

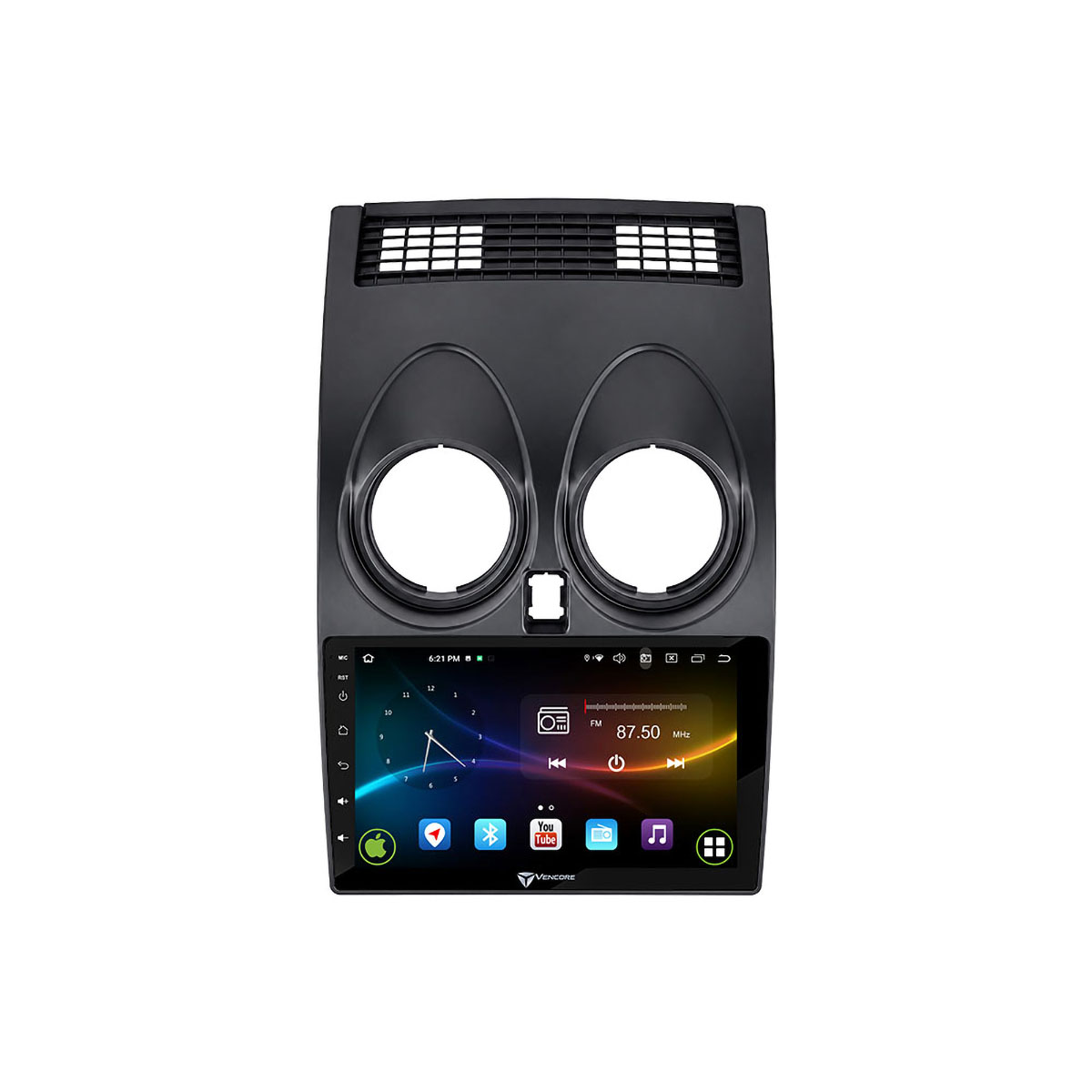

VenCore 3236-10007-0264AB - Οθόνη Multimedia Android 15 9" 9109A MTK6762 Octa-Core 2GB/32GB IPS με Πρόσοψη, CarPlay, Android Auto και Υποστήριξη Κάμερας Οπισθοπορείας AHD για Nissan Qashqai J10 2006-2013 – Μαύρη

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part Number
  3236-10007-0264AB
• Product Type
  Android multimedia head unit with fascia for Nissan Qashqai J10
• Compatible Vehicles
  Nissan Qashqai J10 (2006-2013)
• Screen Size
  9 inches
• Display Panel
  IPS
• Resolution
  1280 × 720 pixels
• Touch Type
  Capacitive multi-touch
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  Bluetooth 5.0 (Hands-Free, A2DP)
• Smartphone Integration
  Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink
• GPS
  Yes (internal support with external GPS antenna included)
• Audio Amplifier
  YD7388 integrated, 4×50W (4.1 channel)
• Subwoofer Output
  Yes (external subwoofer output)
• Audio Formats Supported
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• Radio
  FM with RDS (up to 18 FM presets), AM support (up to 12 presets)
• Camera Input
  AHD / TVI video input (720p / 1080p supported)
• Reverse Camera Auto Switch
  Yes
• 360° Camera System Support
  No
• Steering Wheel Control
  Supported via CANbus Box
• CANbus Box
  Included
• USB Ports
  2 × USB 2.0 (charging output 500mA)
• AUX Input
  Yes
• Video Outputs
  Front and rear RCA outputs
• Power Supply Voltage
  9–14.4 V
• Recommended Fuse / Max Current
  10 A
• Operating Temperature Range
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Color
  Black
• Fascia Included

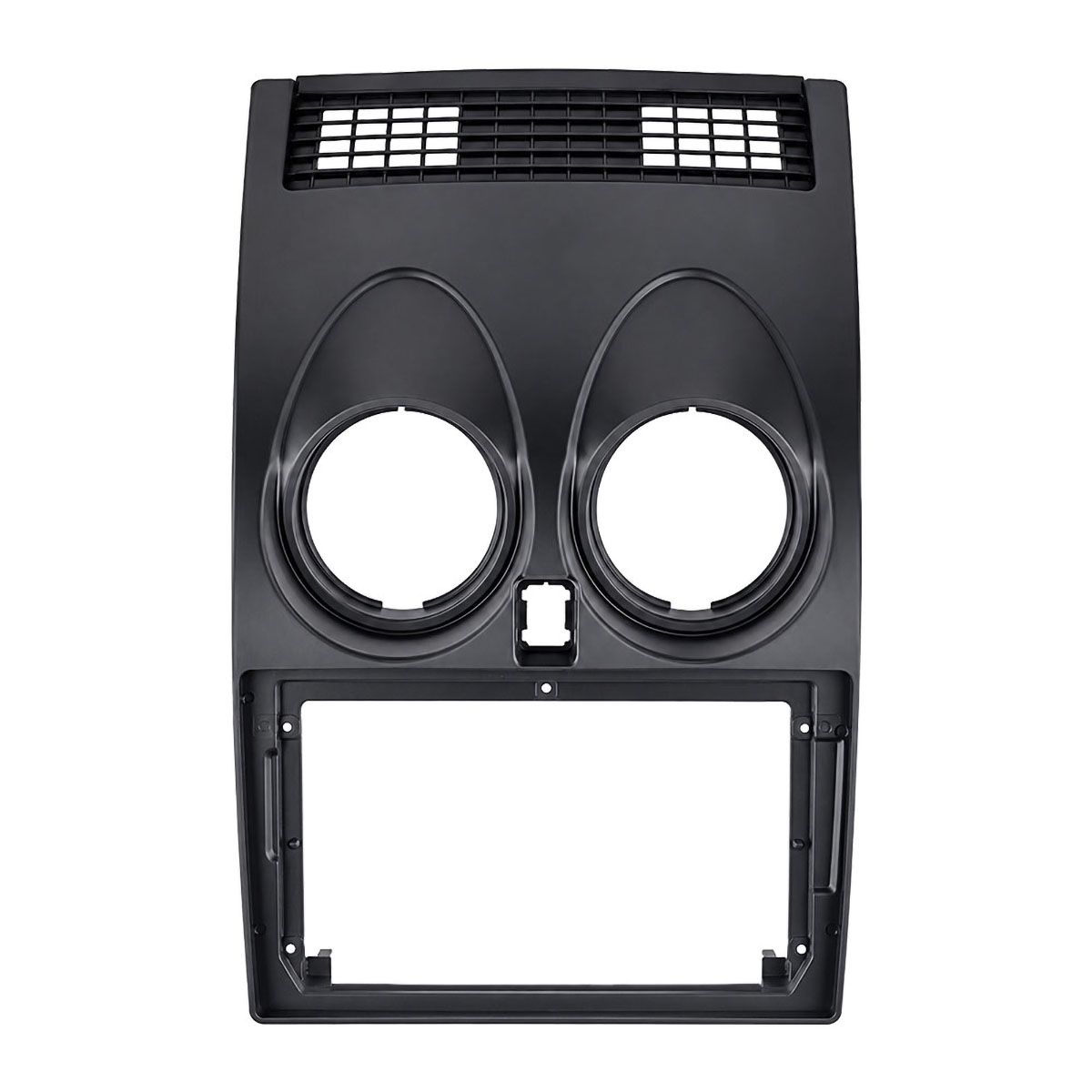

  9" front fascia for Nissan Qashqai J10 (part reference 3550-0264AB)
• Package Weight
  2.50 kg
• Included Accessories
  Multimedia head unit 9", fascia panel, CANbus Box, 6-way multimedia harness, ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna, mounting screws
