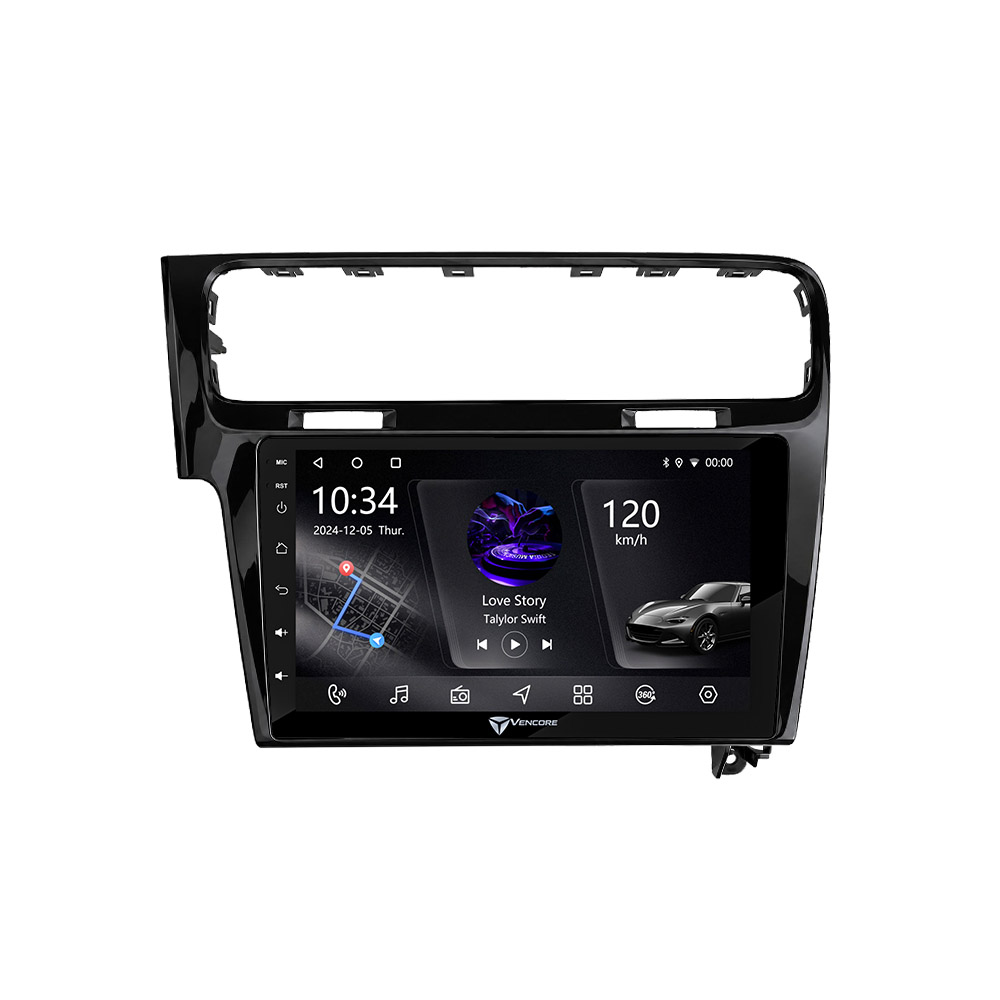

VenCore 3236-10006-0003B Οθόνη Multimedia Android 15 10'' IPS για Volkswagen Golf 7 (2013-2021) με CANbus, CarPlay, Android Auto, Bluetooth, GPS

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  VenCore
• Model / Part number
  3236-10006-0003B
• Product Type
  In-dash Android Multimedia Head Unit (Car Stereo)
• Compatible Vehicle
  Volkswagen Golf 7
• Compatible Years
  2013-2021

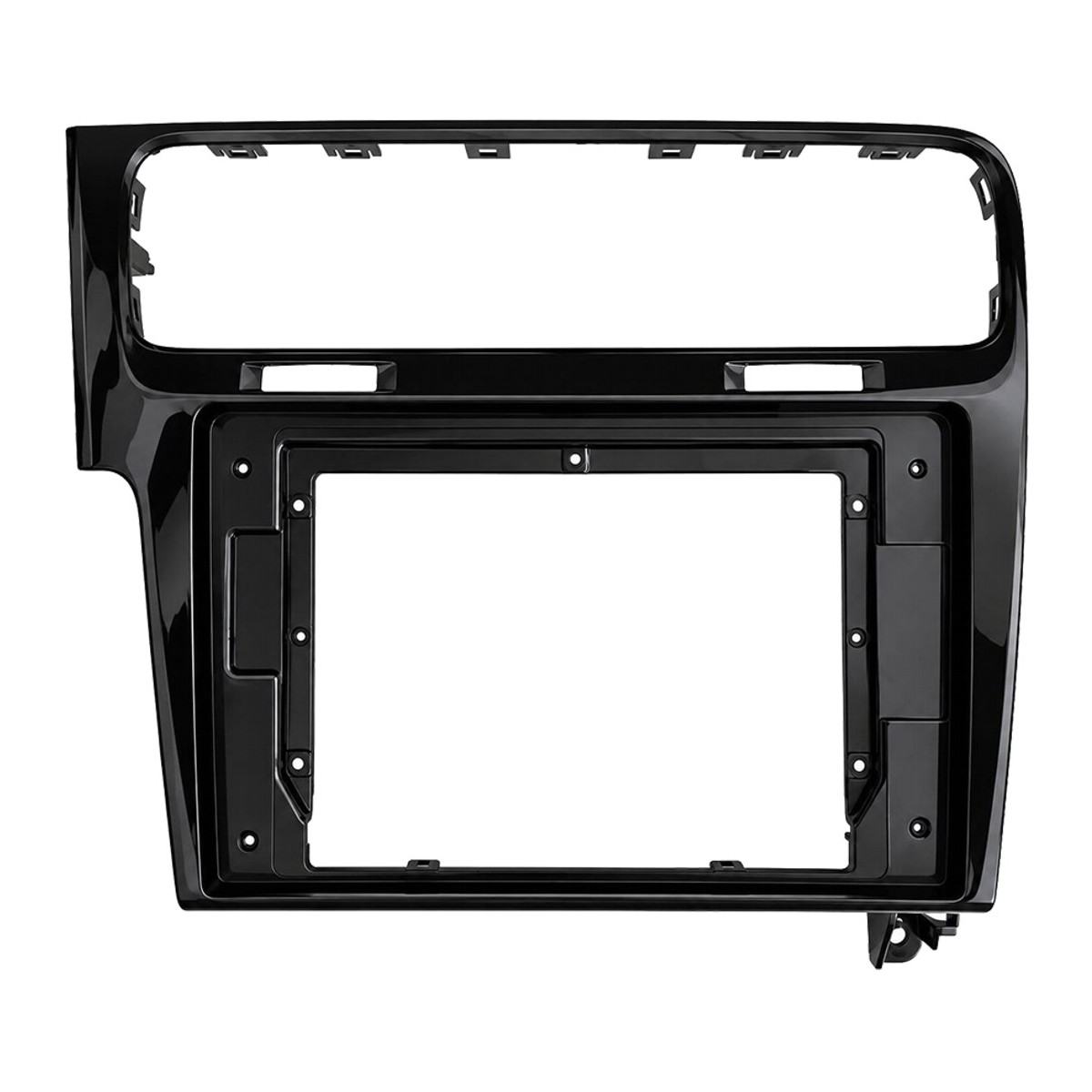

• Front Panel / Fascia Code
  3550-0003B
• Screen Size
  10.1" (10" nominal)
• Display Panel
  IPS
• Resolution
  1280 × 720 pixels (HD)
• Touch Type
  Capacitive Multi-Touch
• Split Screen / Multi-Window
  Yes
• Operating System
  Android 15
• Chipset / Platform
  PX5S
• CPU
  Octa-Core 8 × Cortex-A55 @ 1.8GHz
• RAM
  2GB DDR4
• Internal Storage
  32GB
• Android Updates
  Not supported (no OTA stated)
• Fast Boot / Sleep Mode
  Yes
• Video Playback Max
  1080p
• Built-in GPS
  Yes (external GPS antenna included)
• GPS Map Support
  Google Maps
• Wi-Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  V2.1+EDR (compatible with Bluetooth 5.0)
• Hands-Free Calling
  Yes
• Bluetooth Audio Streaming
  Yes (A2DP/AVRCP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• MirrorLink / Screen Mirroring
  Yes
• FM Radio
  Yes with RDS
• FM/AM Bands Count
  FM 18 / AM 12 (channels info)
• Audio Amplifier IC
  YD7388
• Audio Power (stated)
  4 × 50W (peak) (YD7388)
• RCA Line Out
  4 × (FL / FR / RL / RR)
• Subwoofer Output
  1 ×
• Video Inputs
  4 ×
• Microphone Input
  1 ×
• USB Ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• Rear Camera Input
  AHD 720p / 1080p supported
• 360° Camera Support
  Yes (supports 360° cameras and 360° Control Module)
• CANbus Box
  Included (maintains steering wheel controls and instrument cluster functions)
• Radio Antenna Adapter
  Not required / included (adapter status: included)
• Unit Dimensions (WxHxD)
  228 × 130 × 12 mm
• Package Weight (set)
  2.50 kg
• Product Weight (approx)
  1800 g
• Power Supply Voltage
  9–14.4 V
• Recommended Fuse / Current
  10 A
• Operating Temperature
  −20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update Method
  USB
• Languages / Menu
  Greek (available)
• Package Contents
  Multimedia head unit, 10.1" front fascia for VW Golf 7, CANbus box, 6-pin multimedia harness, ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX input cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna, screws
• Special Notes
  Designed to fit Volkswagen Golf 7 2013-2021, retains many factory functions via CANbus
