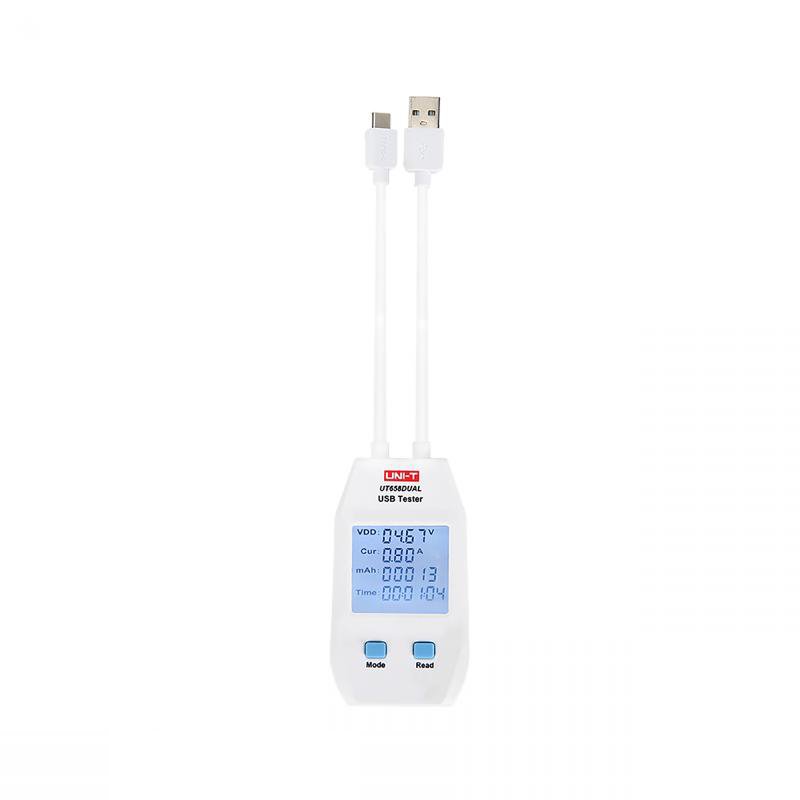

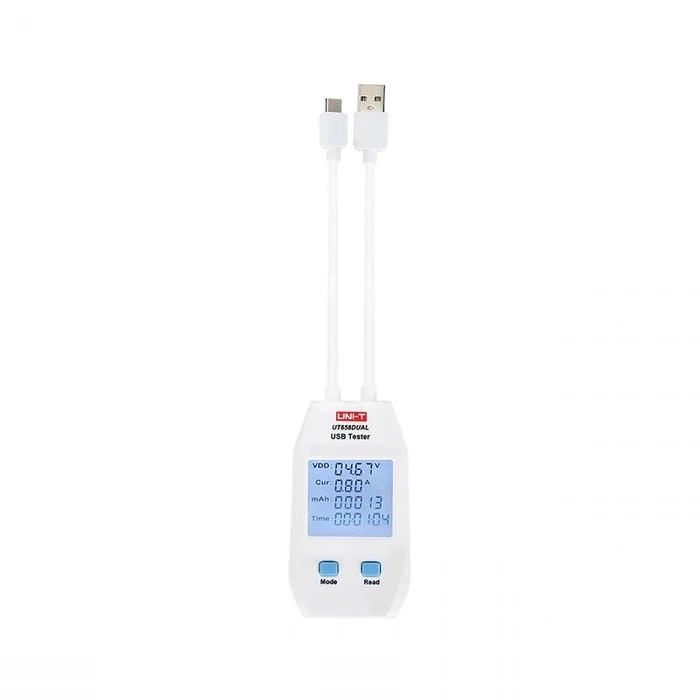

Uni T USB Tester

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Uni-T
• Model
  UT658D
• SKU
  UT-658-D
• EAN
  5901890056878
• MPN
  UT-658-D
• Product Type
  USB tester
• Connector Type
  USB Type A and USB Type C
• Supported Functions
  Voltage measurement, current measurement, capacity measurement, energy measurement, resistance measurement, D plus and D minus voltage measurement
• Voltage Range
  4 to 24 V DC for DUAL variant
• Voltage Resolution
  0.01 V
• Voltage Accuracy
  ±1 percent or ± 1 percent plus 5 digits depending on variant
• Current Range Type A
  0.05 to 3 A or 3.5 A DC depending on variant
• Current Range Type C
  0.05 to 5 A DC
• Current Resolution
  0.01 A
• Current Accuracy
  ±1 percent or ±2 to 5 digits depending on variant
• Capacity Range
  0 to 99999 mAh or 0 to 39999 mAh depending on variant
• Capacity Resolution
  1 mAh
• Energy Range
  0 to 1000 Wh
• Circuit Resistance Range
  1 to 4800 ohms
• USB Data Line Voltage Range
  0 to 3.3 V
• Measurement Memory
  10 sets
• Maximum Timing
  99 hours 59 minutes 59 seconds
• Time Resolution
  1 second
• Fast Charge Support
  QC 2.0, QC 3.0, QC 4.0 depending on port and variant
• Display
  LCD
• Power Consumption
  About 6 mA
• Internal Resistance
  About 0.11 ohm including connectors
• Sense Resistor
  0.05 ohm
• Cable Length
  10 cm
• Working Temperature
  0 to 40 C or minus 10 to 40 C depending on source
• Storage Temperature
  Minus 10 to 50 C
• Humidity
  Less than 75 percent
• Certifications
  CE
• Dimensions
  Approximately 93 x 55 x 13 mm for DUAL variant
• Weight
  Approximately 65.8 g
• Usage
  Charger testing, cable testing, power bank testing, USB device diagnostics, DIY electronics
