ACS USB NFC Reader Module με Αποσπώμενη Κεραία ACM1252U-Y3

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ACS
• Model
  ACM1252U-Y3
• Product Type
  USB NFC Reader Module
• Category
  NFC Smart Card Reader Module
• Interface
  USB 2.0 Type A
• Compliance
  CCID compliant
• Operating Frequency
  13.56 MHz
• Read/Write Speed
  Up to 424 Kbps
• Reading Distance
  Up to 50 mm depending on tag type
• USB Speed
  Full Speed 12 Mbps
• Power Supply
  Regulated 5V DC via USB
• Current Consumption
  Maximum 200 mA
• Supported Cards and Tags
  ISO 14443 Type A and B, MIFARE cards, FeliCa cards, ISO 18092 NFC tags
• Supported MIFARE Types
  MIFARE 7-byte UID, MIFARE Plus, MIFARE DESfire
• Operating Modes
  Card Reader Writer Mode, Peer to Peer Communication Mode, Card Emulation Mode
• Features

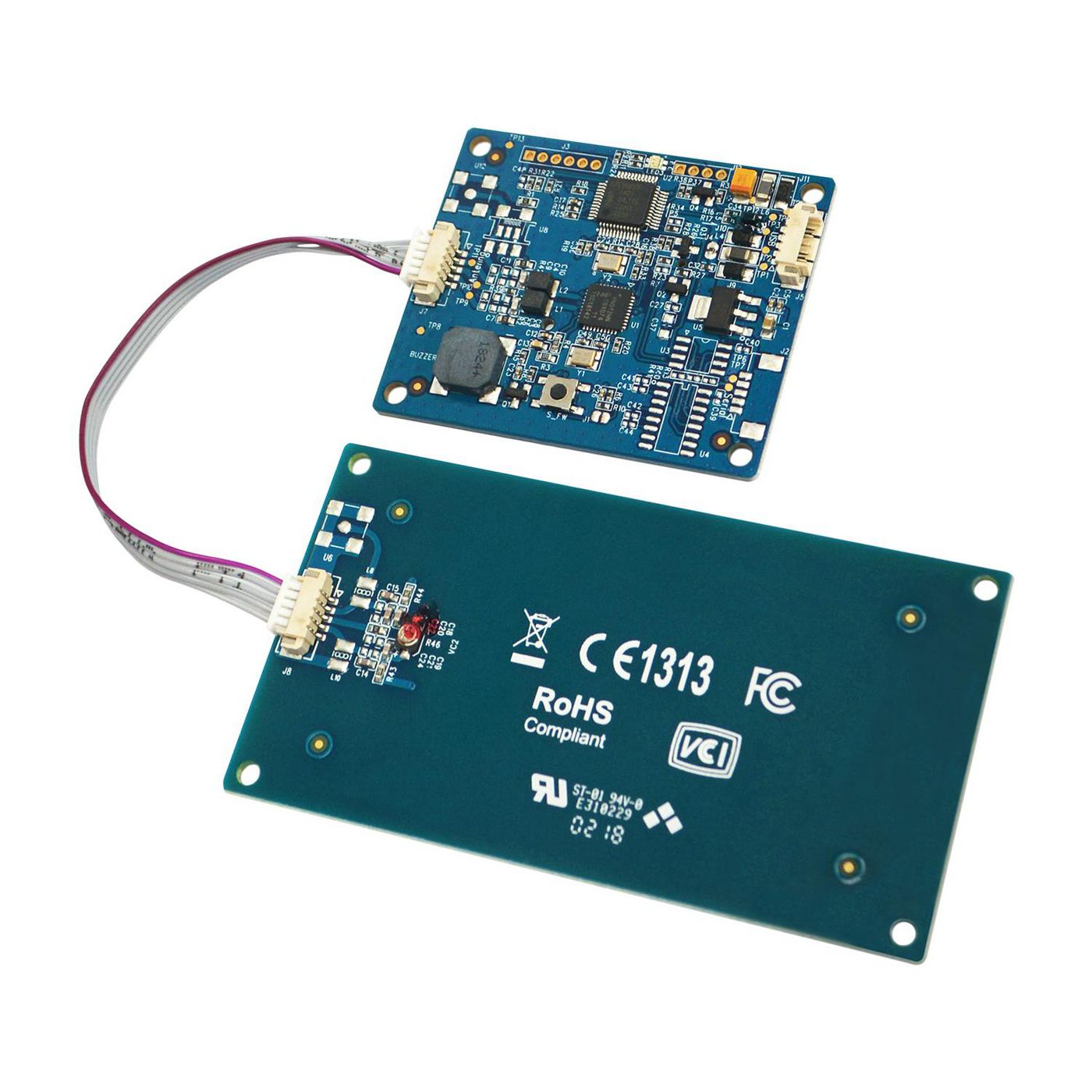

  Detachable antenna board, user-controllable bi-color LED, user-controllable buzzer, built-in anti-collision, USB firmware upgradeability
• API Support
  PC/SC, CT-API through wrapper on top of PC/SC
• Main Reader Board Dimensions
  55.0 mm x 45.0 mm x 5.1 mm
• Antenna Board Dimensions
  91.0 mm x 49.5 mm x 5.1 mm
• Weight
  26.6 g
• Material
  ABS
• Operating Temperature
  0 to 60 C
• Compliance Certifications
  CE, FCC, REACH, RoHS 2
• Cable Length
  1.0 m detachable optional
