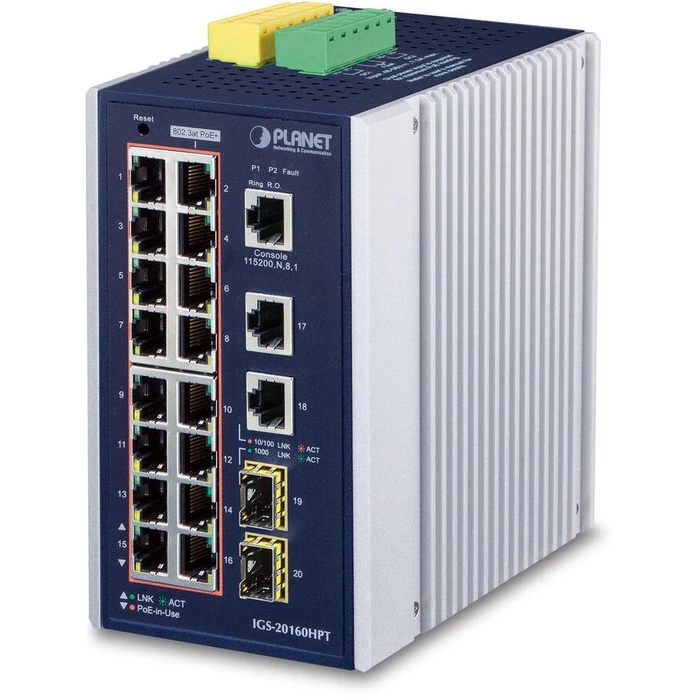

Network Switch Planet Industrial 16-Port PoE 10/100/1000T 2xUP 2xSFP

Τεχνικά Χαρακτηριστικά

• Number of basic switching RJ-45 Ethernet ports
  18
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Number of installed SFP modules
  2
• mesh standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah , IEEE802.3at, IEEE802.3u, IEEE802.3x, IEEE802.3z
• Copper Ethernet cabling technology
  10BASE-T, 100BASE-T, 1000BASE-T
• port mirroring
  yes
• full duplex
  yes
• IP routing
  yes
• Routing inputs
  32
• Auto negotiation function
  yes
• Support data flow control
  yes
• link aggregation
  yes
• IP addresses area
  8th
• VLAN support
  yes
• Virtual LAN functions
  Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
• Number of VLANs
  255
• Ethernet cable cabling technology
  1000BASE-BX, 1000BASE-LX, 1000BASE-SX
• MAC address table
  32000 entries
• Routing/Switching Capacity
  46 Gbps
• passage
  34.2 Mpps
• Store and Forward
  yes
• number of lines
  4
• Jumbo frames support
  yes
• jumbo frames
  10000
• Data packet buffer memory
  4MB
• access control list
  yes
• IGMP snooping
  yes
• Supported security algorithms
  128-bit SSL, SNMP, SSH
• Multicast support
  yes
• Multicast MAC address table
  4094 entries
• Number of filtered multicast groups
  255
• Rack mount
  no
• product color
  Blue White
• housing material
  aluminum
• reset button
  yes
• LED indicators
  Activity, Link, PoE, Power, Blackout, Ring
• DIN rail mounting
  yes
• International degree of protection (IP code)
  IP30
• wall mounting
  yes
• Security
  IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
• certification
  FCC 15A, CE
• switch type
  managed
• switch level
  L2/L3
• Quality of Service (QoS) support
  yes
• MIB support
  RFC-1213, IF, RFC-1493, RFC-1643, RFC-2863, RFC-2665, RFC-2819, RFC-2737, RFC-2618, RFC-2933, RFC-3411, LLDP, MAU
• Maximum data transfer rate
  1000Mbps
• Goods tariff number (HS)
  85176990
• Broad
  86mm
• depth
  107mm
• Height
  152mm
• Weight
  1.55kg
• operating temperatur
  -40 - 75?
• Storage temperature range
  -40 - 85?
• Operating relative humidity
  5 - 95%
• humidity during storage
  5 - 95%
• heat dissipation
  123 BTU/hr
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet (PoE) ports
  16
• Power over Ethernet (PoE) voltage range
  48 - 56V
• Total power Power over Ethernet (PoE)
  320W
• terminal block connector
  yes
• DC input voltage
  48 - 56V
