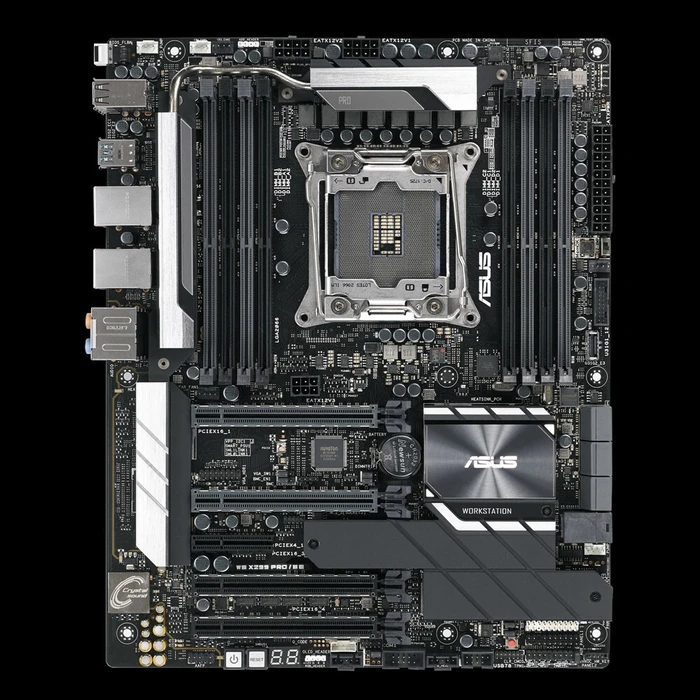

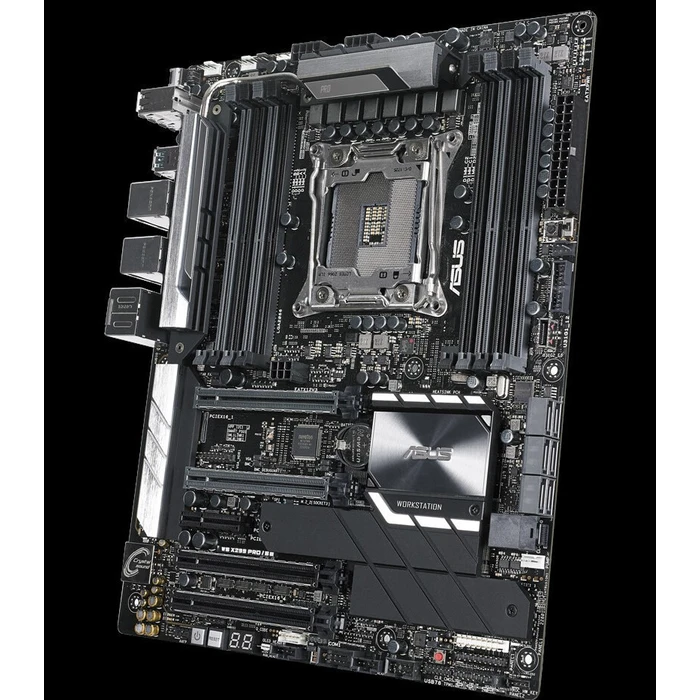

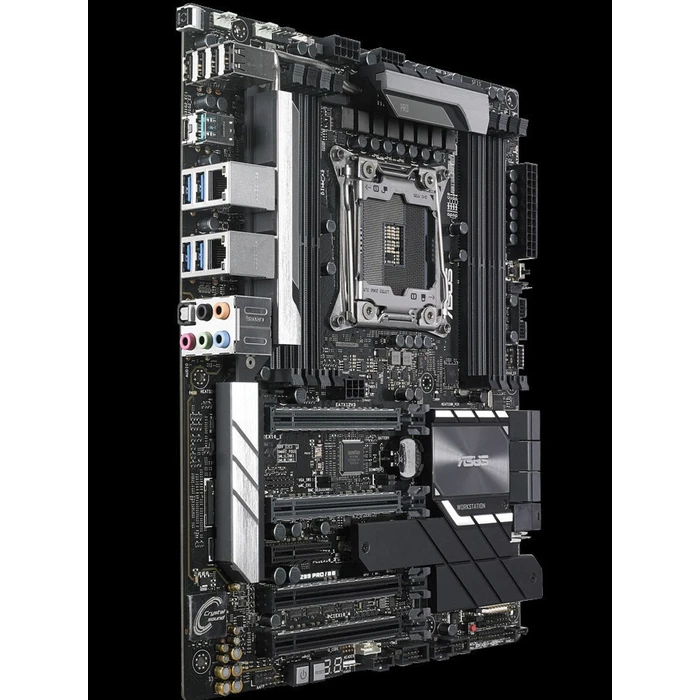

Motherboard Intel 2066 ASUS WS X299 PRO/SE

Τεχνικά Χαρακτηριστικά

• Product Type
  Motherboard - ATX
• Chipset Type
  Intel X299 Express
• Processor Socket
  LGA2066 Socket
• Max Processors Qty
  1
• Compatible Processors
  Core X
• Max Size
  128 GB
• Technology
  DDR4
• Bus Clock
  2400 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.)
• Supported RAM Integrity Check
  Non-ECC
• Registered or Buffered
  Unbuffered
• Features
  Intel Extreme Memory Profiles (XMP)
• Type
  HD Audio (8-channel)
• Audio Codec
  Realtek ALCS1220A
• Compliant Standards
  DTS Connect, High Definition Audio, DTS Headphone:X
• Network Controller
  Intel I210-AT
• Network Interfaces
  2 x Gigabit Ethernet
• Expansion Slots
  1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x4
• Storage Interfaces
  SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2
• RAID Features
  Intel Rapid Storage Technology
• Interfaces
  2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack
• Internal Interfaces
  2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x USB 3.1 Gen 2 - header
• Power Connectors
  24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors
• BIOS Features
  ASUS Quiet Thermal Solution, USB BIOS Flashback
• Hardware Features
  Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Smart Response Technology, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Crystal Sound 3, AURA RGB Lighting Control, Intel Optane Memory Ready, Intel VROC support, ASUS PRO Clock II Technology, M.2 heatsink, ASMB9-iKVM
• Software Included
  ASUS AI Charger+, ASUS Control Center
• Width
  30.5 cm
• Depth
  24.4 cm
• Service & Support
  Limited warranty - 3 years
