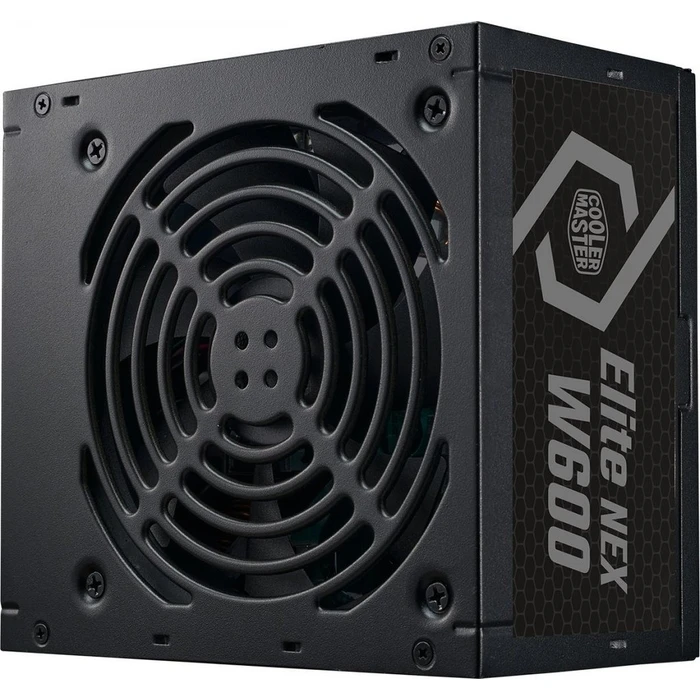

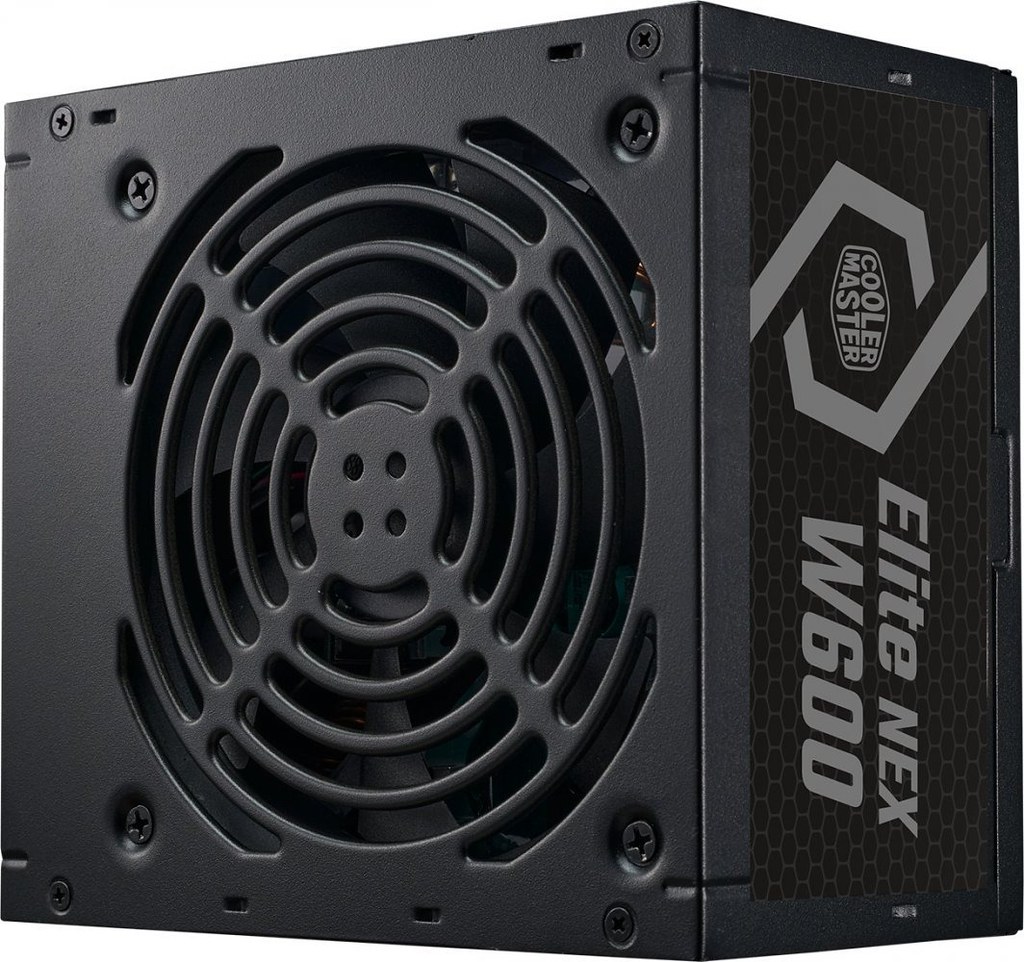

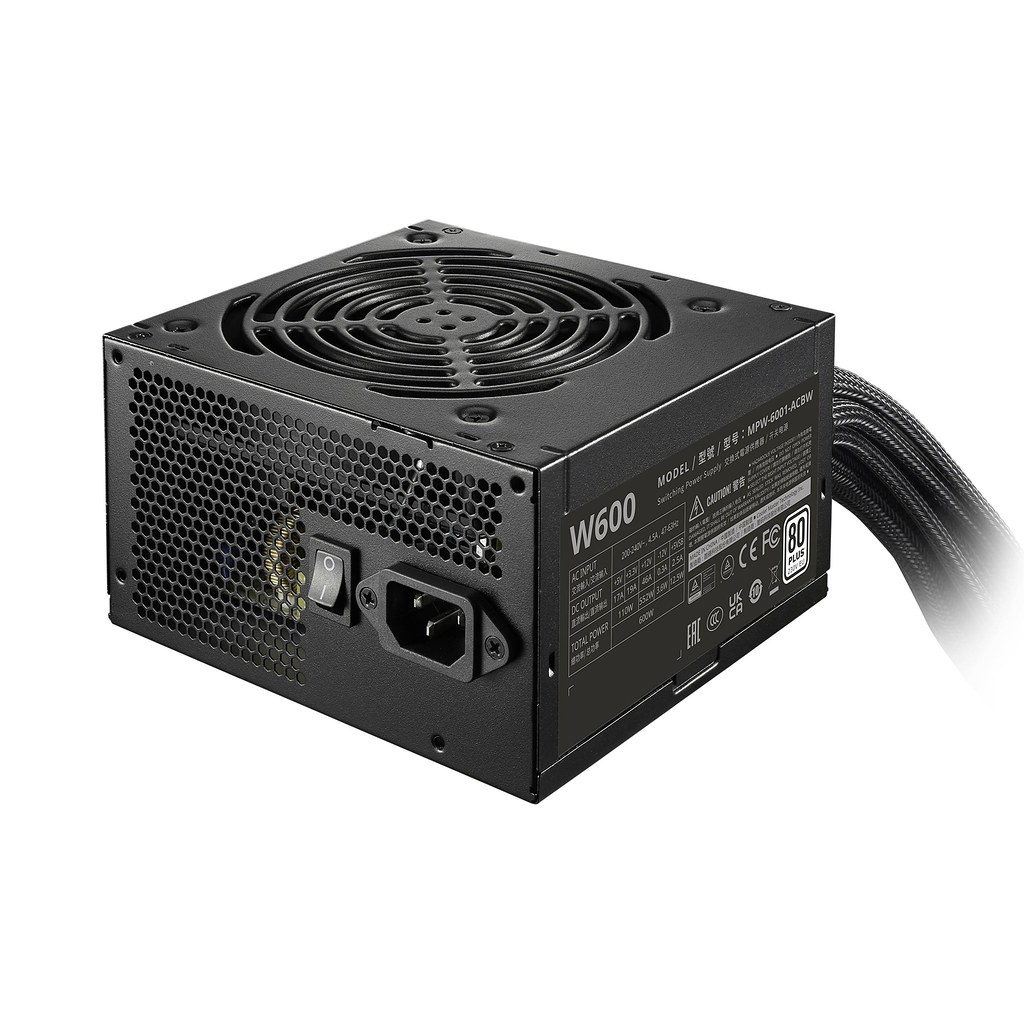

Τροφοδοτικό Cooler Master Elite NEX W600 230V A/EU Black Cable

Τεχνικά Χαρακτηριστικά

• Overall performance
  600W
• AC input voltage
  200 - 240V
• AC input frequency
  50/60Hz
• Input current
  4.5A
• Power factor correction filter (PFC)
  Active
• Combined current (+3.3V)
  110W
• Combined power (+12V)
  552W
• Combined current (+5V)
  110W
• Combined current (-12V)
  3.6W
• Combined current (+5Vsb)
  12.5W
• Max. output current (+3.3V)
  19 A
• Max. output current (+12V)
  46 A
• Max output current (+5V)
  17 A
• Max. output current (-12V)
  0.3A
• Max. output current (+5Vsb)
  2.5A
• Efficiency
  85%
• Hold time
  10 ms
• Power good signal delay range
  100 - 500 ms
• Energy protection properties
  Overload, overvoltage, overheating, short circuit, undervoltage
• Motherboard connector plug
  24-pin ATX
• Power cable length motherboard
  50cm
• Number of SATA power connectors
  5
• SATA power cable length
  150,400mm
• Number of Molex connectors 4pin
  3
• Peripheral (Molex) power cable length
  150,400mm
• EPS power connector (4+4 pin)
  yes
• Number of PCI Express power connectors 6+2pin
  2
• ATX power connector (24-pin)
  yes
• Cable type
  Non-modular
• Purpose
  PC
• Power supply unit (PSU) form factor
  ATX
• 80 Plus certification
  80 PLUS
• Supported motherboard form factors
  ATX
• ATX version
  2.41
• Mean Time Between Failures (MTBF)
  100,000 hours
• Certification
  TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
• Product color
  Black
• cooling
  Active
• Fan diameter
  12cm
• Number of fans
  1 fan
• Fan placement
  Above
• On/off switch
  yes
• operating temperatur
  0 - 40°C
• Packaging width
  190mm
• Packaging depth
  280mm
• Packaging height
  95mm
• Package weight
  1.88kg
• Packaging type
  box
• Width
  150mm
• depth
  140mm
• Height
  86mm
• Weight
  1.49kg
