Κάρτα Δικτύου PCIe 512MB Matrox M9120 2xDVI/2xVGA

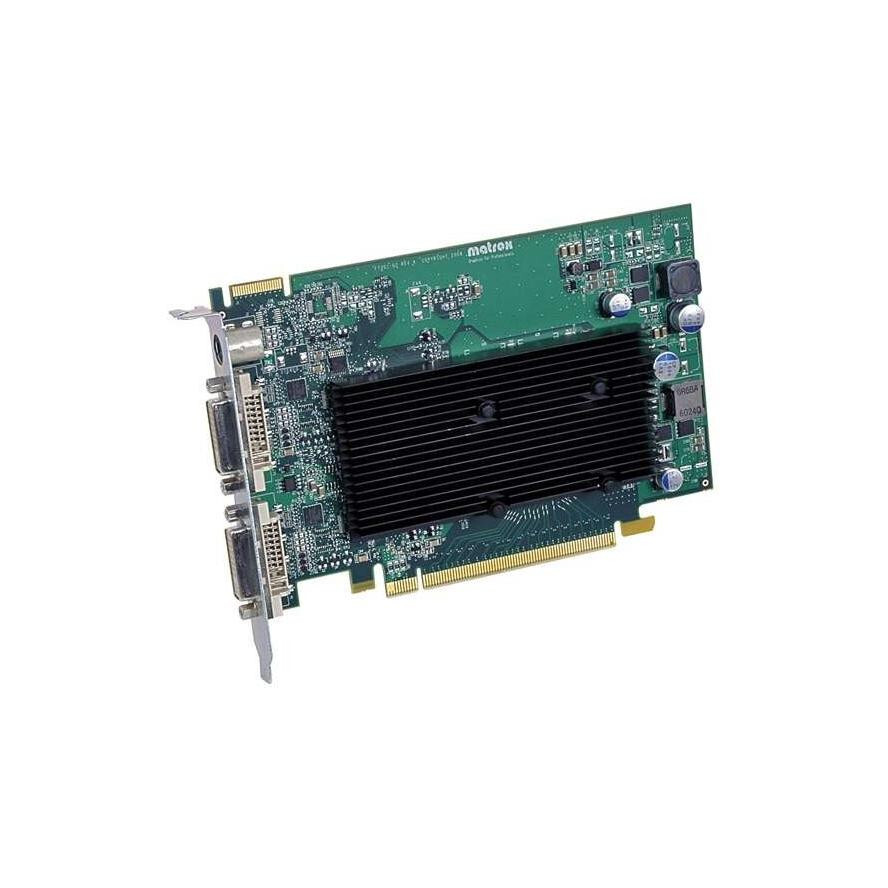

The Matrox M9120 PCIe x16 ATX graphics card renders pristine image quality with dual monitor support at resolutions up to 1920 x 1200 (digital) or 2048 x 1536 (analog) for an exceptional multi-display user experience. Equipped with a 512 MB memory and advanced desktop management M9120 graphics card offers through its exceptional graphics performance and support for two high-resolution monitors in both independent and stretched desktop improving effectiveness in business, industrial, and government applications. It is optimally designed to support Windows Vista Aero aligned (WDDM mode) and can be used together with a second graphics card Matrox M-Series, if additional outputs are required.

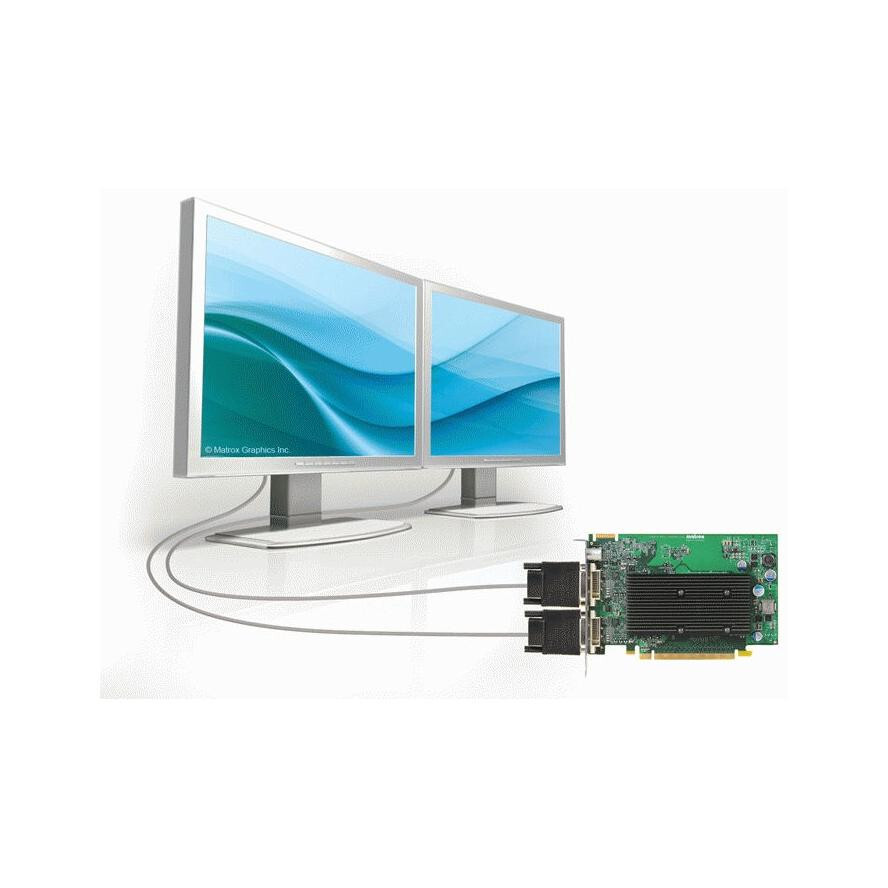

* High-resolution dual monitor support
Up to 1920 x 1200 digital and 2048 x 1536 analog per output
* Native PCI Express x16
performance Maximum bandwidth to ensure best performance
* 512 MB of memory
for enhanced performance in demanding multi-monitor applications
* ATX form factor
* Optimal support for Windows® Vista
Aero (WDDM mode) , XP and other operating systems
* Passive cooling and low power consumption
Fanless design for silent operation and to improve product reliability
* Joined graphics card mode
Allows the use of an additional graphics card Matrox M-series to increase the number of support monitors.
* wide enterprise flexibility
Unified driver package compatible with other Matrox products.
* Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
* Global sales and technical support

Bundled hardware

* Matrox M9120 PCIe x16 graphics card (with factory-installed ATX bracket)
* Two DVI-I-to-HD15 connector adapters

software included

* Matrox display drivers for Microsoft Windows Vista and Windows XP
(also available for download under www.matrox.com/graphics)
* Matrox PowerDesk desktop management software

processor
GPUs Family
Matrox
Maximum resolution
2048 x 1536 pixels
CUDA NO
Maximum displays per video card
2
Parallel processing technology support NO
Resolution (maximum, analog)
2 x 2048 pixels
Resolution (maximum, digital)
2 x 1920 pixels
memory
Graphics adapter memory type
GDDR2
Width of the memory interface
128 bit
Connectors and Interfaces
interface
PCI Express x16
VGA (D-Sub) ports
2
DVI-I connectors
2
DVI-D connectors
2
DVI port
2
Dual VGA
entrance NO
power
TV tuner integrated NO
PhysX NO
DirectX version NO
OpenGL version
2.0
Full HD
Dual-link DVI
Dual DVO
design
certification
EMC Certifications: Class B \ nROHS & WEEE compliant
cooling
passive
form factor
ATX
system requirements
Supported Windows Operating Systems
Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Supported Mac operating systems NO
Supported Linux operating systems
Supported server operating systems
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
More specifications
Mac compatibility NO
HDMI NO
Graphics Card Family
Matrox
Compatible operating systems
Microsoft Windows 7 (32 / 64bit) *, \ nMicrosoft Windows XP (32 / 64bit) *, \ nMicrosoft Windows Vista (32 / 64bit) *, \ nMicrosoft Windows Server 2003/2008 (32 / 64bit) *, \ Nsee website for details \ nLinux \ n (www.matrox.com/graphics/en/products/graphics_cards/m_series/linux_distributions.html)
packaging information
Bundled software
Matrox PowerDesk display driver & desktop management software \ n
Weight & dimensions
width
16.8 cm
height
11.1 cm
depth
1.9cm
