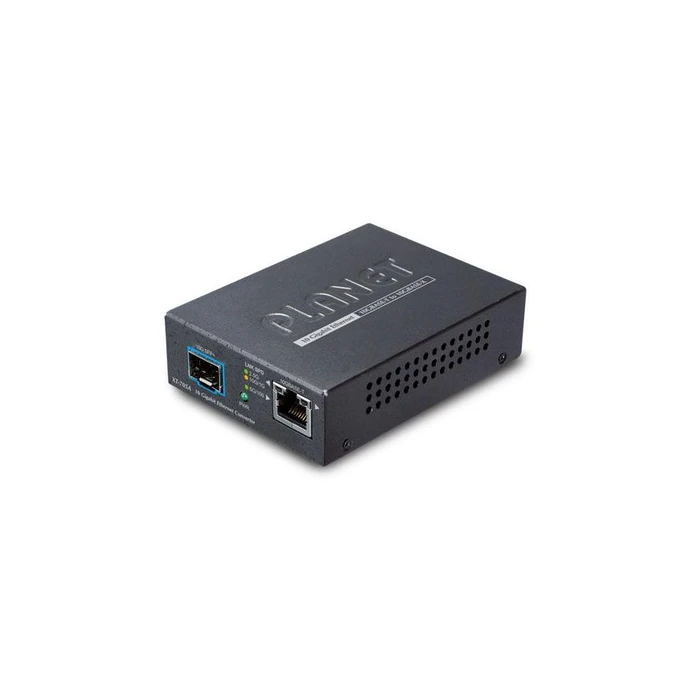

Converter Planet 10G/5G/2,5G/1G/100M Copper to 10G SFP+ Media

Τεχνικά Χαρακτηριστικά

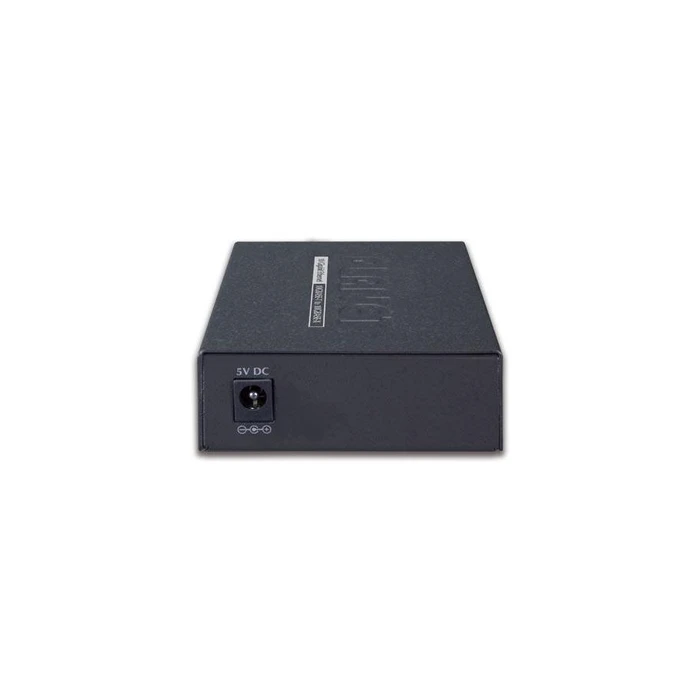

• Input voltage
  5 V
• Input current
  2 A
• Power consumption (in operation)
  26 W
• Maximum data transfer rate
  10000 Mbit / s
• Network standard
  IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
• Ethernet interface type
  2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Ethernet cable cabling technology
  10GBASE-X
• Jumbo frames support
  yes
• Jumbo frames
  16000
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full, half
• supported cable types
  Cat5, Cat5e, Cat6, Cat6a, Cat7
• Transmission technology
  Wired
• Number of Ethernet LAN connections (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SFP +
• Maximum possible transmission distance
  60000 m
• Cable fashion structure
  Multi mode, single mode
• Supported fiber cable diameters (core / cladding)
  9 / 125.50 / 125.62.5 / 125 ΅m
• Built-in
  no
• LED indicators
  Link, performance
• Housing material
  metal
• DIN rail mounting
  yes
• Certification
  FCC Part 15 Class A, CE
• Operating temperature range
  0 - 50 ° C
• Storage temperature range
  -10 - 70 ° C
• Humidity in operation
  5 - 95%
• Storage humidity
  5 - 95%
• broad
  94 mm
• depth
  70 mm
• height
  26 mm
• Weight
  180 g
