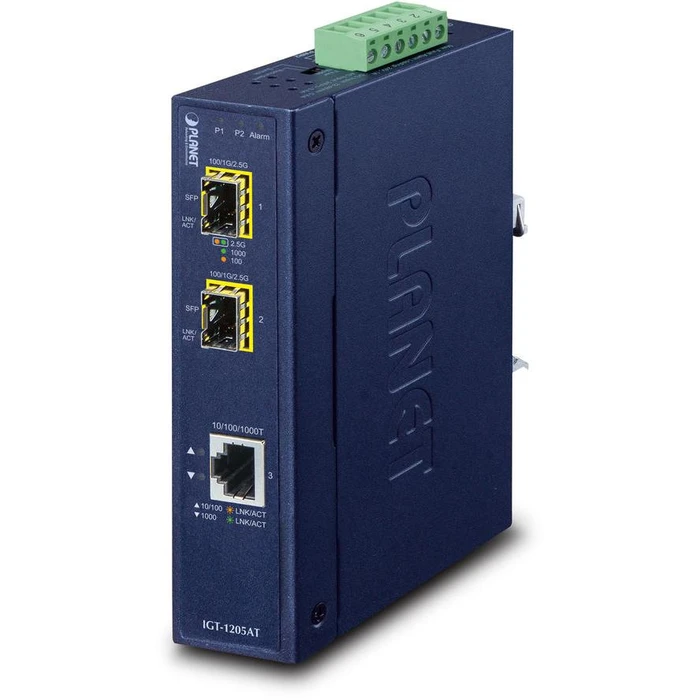

Converter Planet IP30 10/100/1000T to 2-Port 100/1000X SFP Gbit Conv.

Τεχνικά Χαρακτηριστικά

• Input voltage
  12 - 48 V.
• Power consumption (in operation)
  4.8 W.
• Maximum data transfer rate
  1000 Mbit / s
• Converter input interface
  10Base-T, 1000Base-T
• Converter output surface
  1000Base-BX, 1000Base-LX, 1000Base-SX
• Ethernet interface type
  Gigabit Ethernet
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Auto MDI / MDI-X
  yes
• Duplex system
  Full, half
• Transmission technology
  Wired
• Number of Ethernet LAN connections (RJ-45)
  1
• Number of fiber connections
  2
• Optical cable connector
  SFP
• Maximum possible transmission distance
  120000 m
• Built-in
  no
• LED indicators
  yes
• Housing material
  metal
• DIN rail mounting
  yes
• International protection class (IP code)
  IP30
• Product color
  blue
• Certification
  FCC Part 15 Class A, CE
• Operating temperature range
  -40 - 75 ° C
• Storage temperature range
  -40 - 75 ° C
• Humidity in operation
  5 - 95%
• Storage humidity
  5 - 95%
• broad
  32 mm
• depth
  87 mm
• height
  135 mm
• Weight
  412 g
