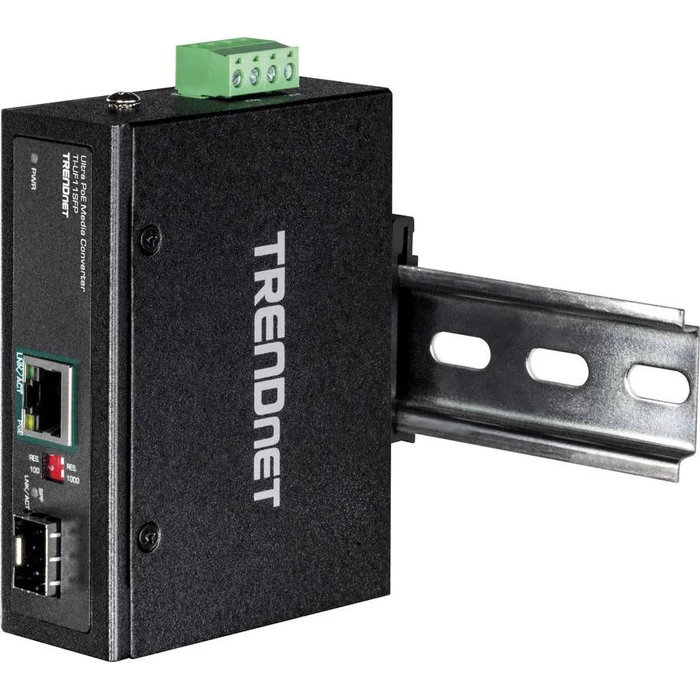

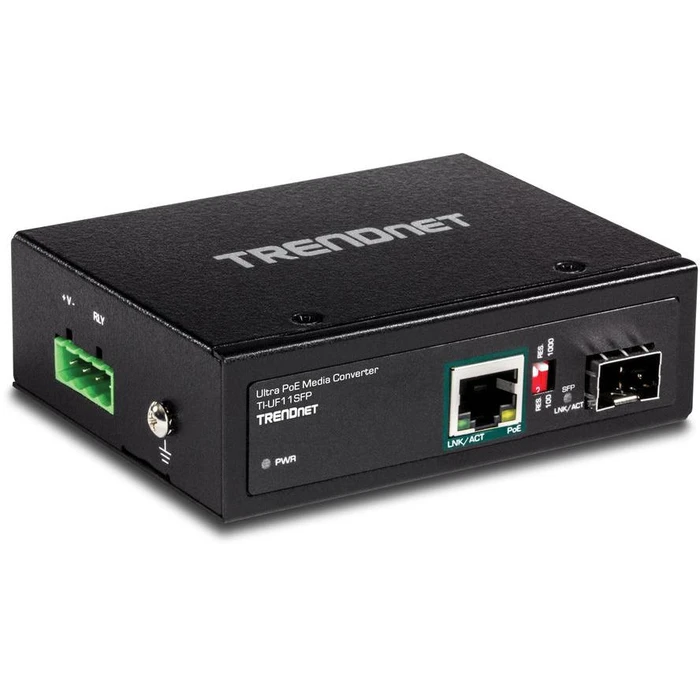

Μετατροπέας TRENDnet Industrieller SFP to Gigabit UPoE Medien

Τεχνικά Χαρακτηριστικά

• Total power over Ethernet (PoE)
  60 W
• Input voltage
  48 - 56 V
• Power consumption (max.)
  72 W.
• Power over Ethernet (PoE)
  yes
• Maximum data transfer rate
  1000 Mbit / s
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Ethernet interface type
  10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Ethernet LAN data transfer rates
  10 Mbit / s
• Jumbo frames support
  yes
• Jumbo frames
  9
• Auto-negotiation function
  yes
• Duplex system
  Full, half
• DC connection
  yes
• Transmission technology
  Wired
• Optical cable connector
  SFP
• Number of Power over Ethernet (PoE) connections
  1
• Mean Time Between Failures (MTBF)
  510,304 h
• Maximum possible transmission distance
  4000 m
• Buffer size
  1000 KB
• Certification
  FCC, CE, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), EN60950-1 (LVD)
• Built-in
  yes
• LED indicators
  yes
• DIN rail mounting
  yes
• Product color
  black
• Housing material
  aluminum
• International protection class (IP code)
  IP30
• Quick installation guide
  yes
• Operating temperature range
  -40 - 75 ° C
• Humidity in operation
  0 - 95%
• width
  103.5 mm
• depth
  81.5 mm
• height
  32 mm
• Weight
  153 g
