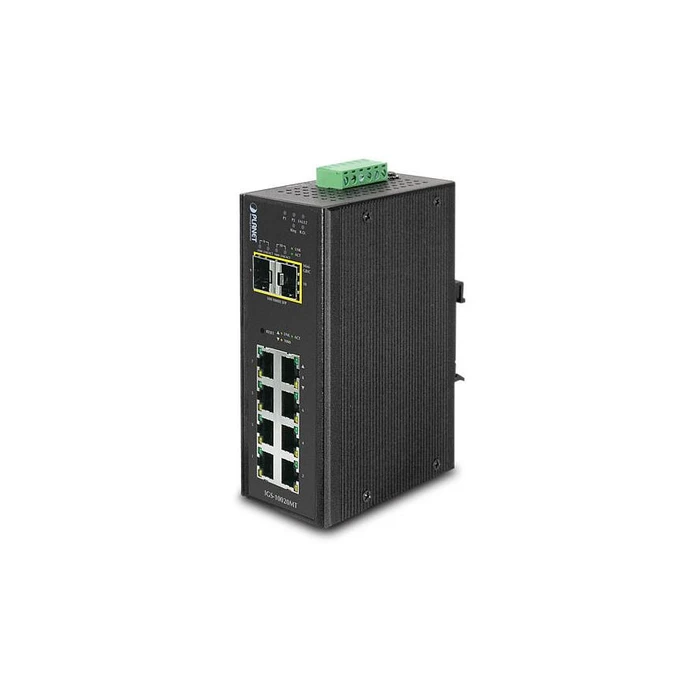

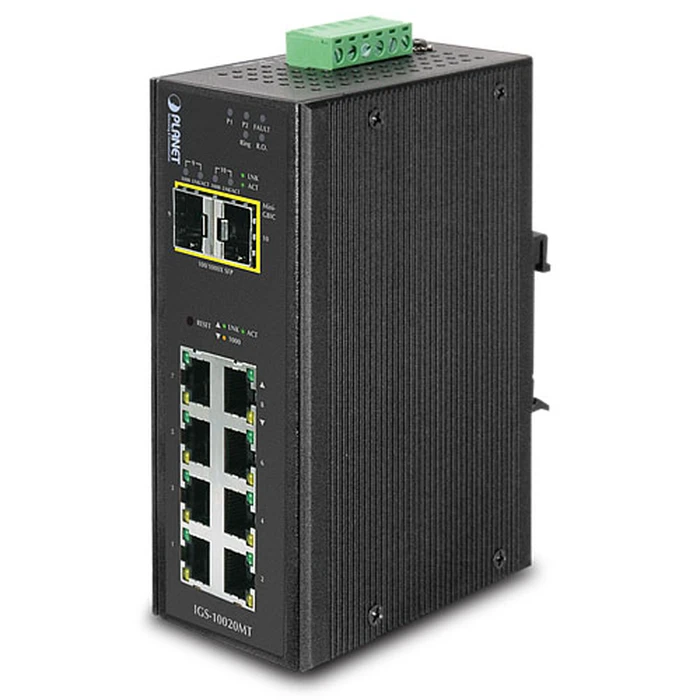

Network Switch PLANET Industrial 8-Port 10/100/1000T + 2 100/1000X SFP

Τεχνικά Χαρακτηριστικά

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  2
• VLAN support
  yes
• Number of VLANs
  255
• Network standard
  IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  1000BASE-T, 100BASE-TX, 10BASE-T
• Port mirroring
  yes
• Full duplex
  yes
• Link aggregation
  yes
• Spanning Tree Protocol
  yes
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• MAC address table
  8000 entries
• Routing / switching capacity
  20 Gbit / s
• Passage
  14.8 Mpps
• Store-and-forward
  yes
• Number of queues
  8th
• Jumbo frames support
  yes
• Access Control List
  yes
• IGMP snooping
  yes
• Supported security algorithms
  802.1x RADIUS, SSH, SSL / TLS
• Multicast support
  yes
• Management protocols
  SSH, SSL, SNMP, Telnet
• Certification
  FCC Part 15 Class A, CE
• Rack installation
  no
• Product color
  black
• Housing material
  aluminum
• LED indicators
  yes
• DIN rail mounting
  yes
• Wall mounting
  yes
• MIB support
  MIB, MIB-II
• Switch type
  Managed
• Switch level
  L2
• Quality of Service (QoS) support
  yes
• Web based management
  yes
• Buffer size
  512 KB
• Firmware upgradeable
  yes
• width
  87.8 mm
• depth
  56 mm
• height
  135 mm
• Weight
  720 g
• Heat dissipation
  34 BTU / hour
• Operating temperature range
  -40 - 75 ° C
• Storage temperature range
  -40 - 75 ° C
• Humidity in operation
  5 - 95%
• Storage humidity
  5 - 95%
• Power over Ethernet (PoE)
  no
• Power consumption (in operation)
  10 W
