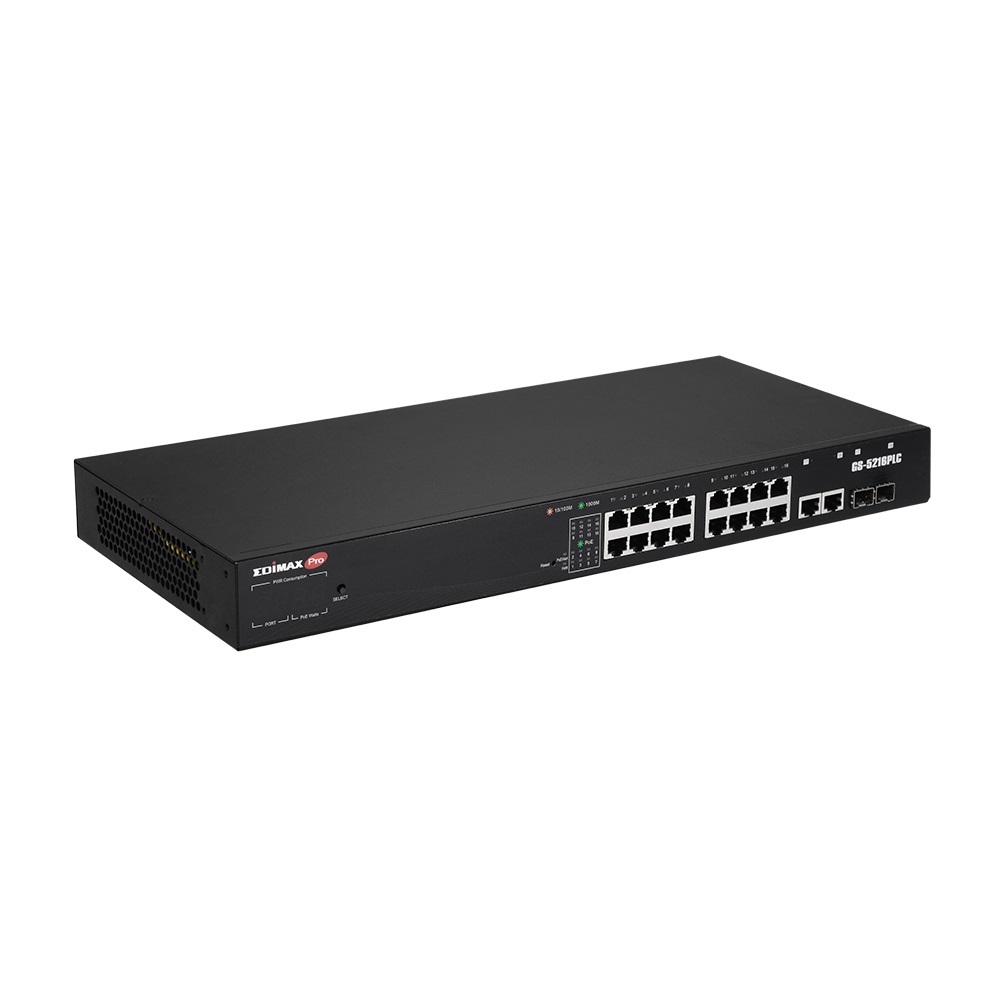

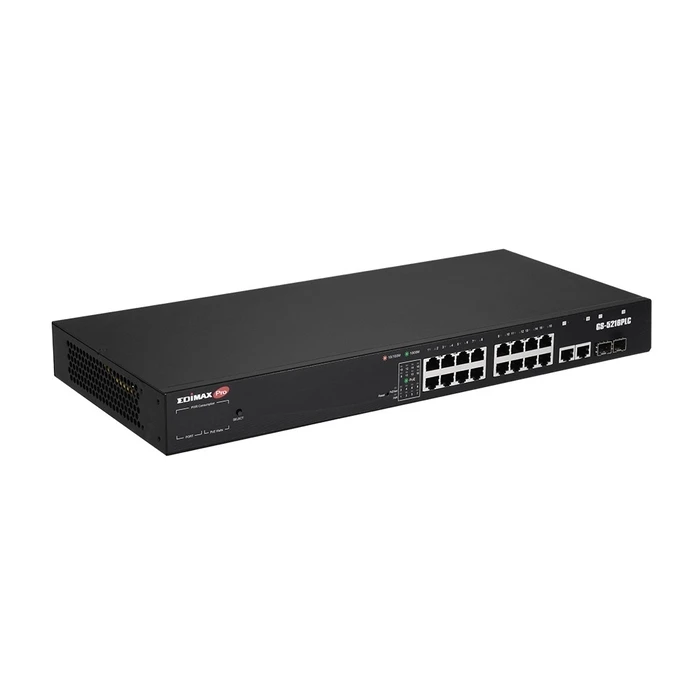

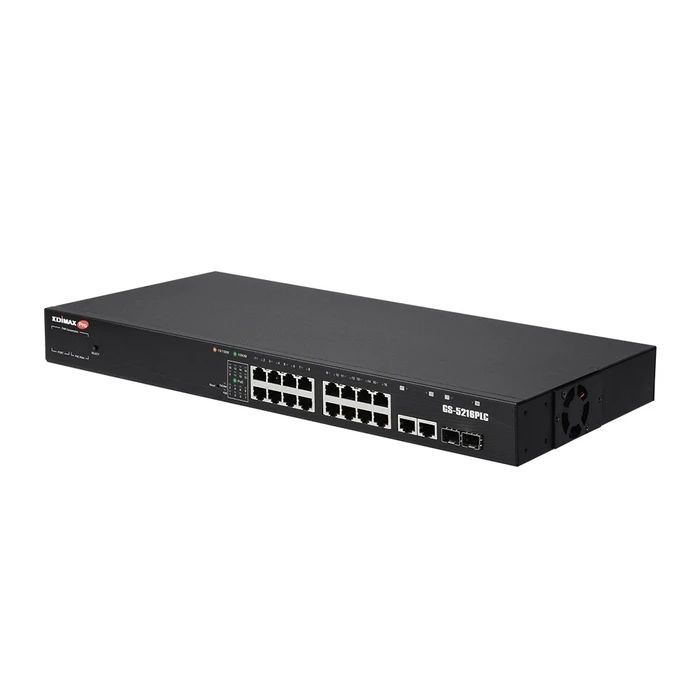

Network Switch Edimax GS-5216PLC, 16 ports

Τεχνικά Χαρακτηριστικά

• Built-in processor
  Y
• Virtual stacking (units)
  16
• Processor frequency
  800 MHz
• Memory type
  DDR3-SDRAM
• Internal memory
  256 MB
• Flash memory
  128 MB
• Built-in display
  LED
• Reset button
  Y
• Rack mounting
  Y
• Built-in fan
  Y
• Number of fans
  2 fan(s)
• Power over Ethernet (PoE)
  Y
• Power consumption (max)
  280 W
• AC input voltage
  100 - 240 V
• Authentication type
  AAA, RADIUS
• DoS attack prevention
  Y
• DHCP features
  DHCP client
• Remote Authentication Dial-In User Service (RADIUS)
  Y
• SSH/SSL support
  Y
• IGMP snooping
  N
• Security algorithms
  SNMP
• ARP attack prevention
  Y
• Polarity reverse circuit protection
  Y
• Operating temperature (T-T)
  0 - 50 °C
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  10 - 90%
• User operation log
  Y
• Quality of Service (QoS) support
  Y
• System event log
  Y
• VLAN support
  Y
• Web-based management
  Y
• Switch type
  Managed
• Depth
  441 mm
• Height
  44 mm
• Weight
  3.03 kg
• Width
  196 mm
• Full duplex
  Y
• Link aggregation
  Y
• Port mirroring
  Y
• Ethernet LAN data rates
  10,100,1000 Mbit/s
• 10G support
  N
• Multicast support
  Y
• Auto-negotiation
  Y
• Copper ethernet cabling technology
  10BASE-T
• Audio detection
  Y
• VLAN support
  Y
• Networking standards
  IEEE 802.1x
• Rate limiting
  Y
• Packet buffer memory
  4.1 MB
• Maximum cable length
  200 m
• Switching capacity
  36.6 Gbit/s
• Throughput
  14.8 Mpps
• MAC address table
  4096 entries
• IPv6 support
  Y
• Management protocols
  SNMP
• Jumbo frames support
  Y
• Spanning tree protocol
  Y
• MIB support
  RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB
• Gigabit Ethernet (copper) ports quantity
  16
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity
  2
