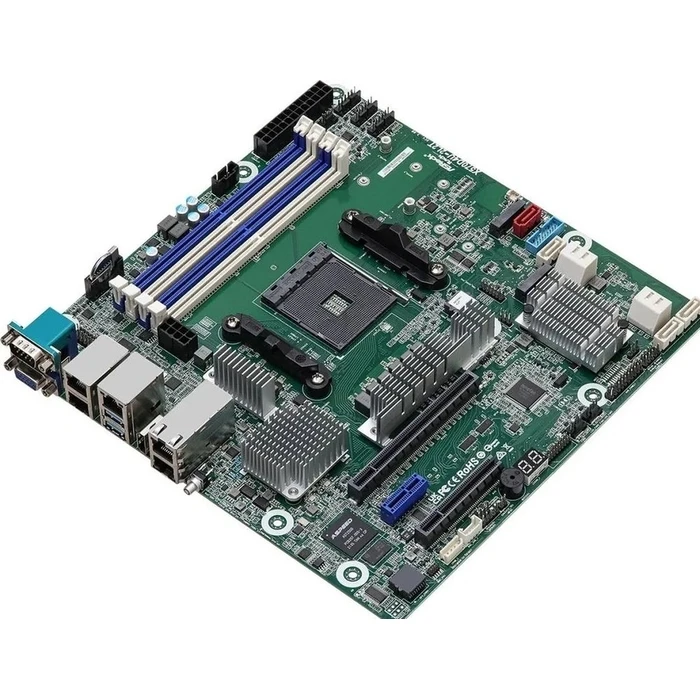

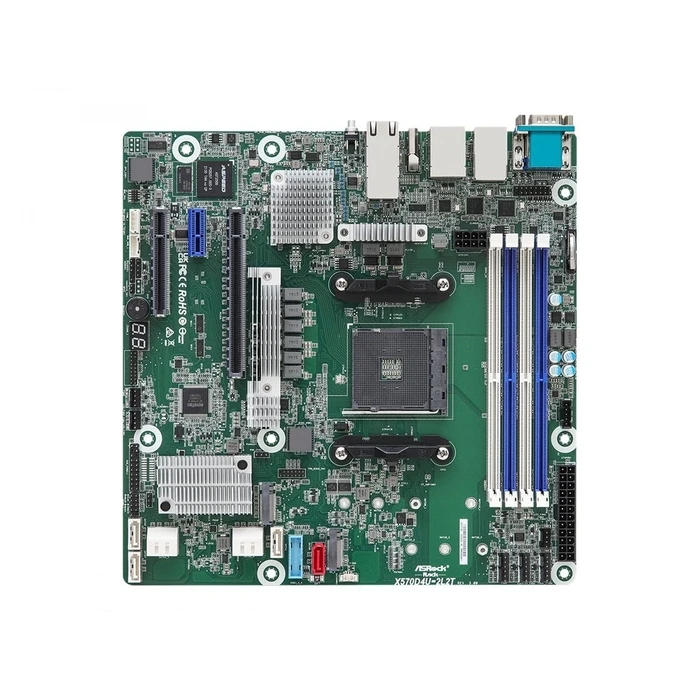

Motherboard ASRock Rack X570D4U-2L2T/BCM - Micro ATX - AM4 - AMD X570

Τεχνικά Χαρακτηριστικά

• product type
  Motherboard - micro ATX
• chipset
  AMD X570
• processor socket
  Socket AM4
• Max. processors
  1
• Compatible processors
  Ryzen (supports Ryzen 3000 Series/4000 G-Series/5000 Series/5000 G-Series)
• Max size
  128 GB
• Technology
  DDR4
• Bus rate
  2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz
• Supported RAM integrity check
  Non-ECC, ETC
• network controller
  Broadcom BCM57416 / Intel I210
• network interfaces
  2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet
• expansion slots
  1 x CPU ¦ 4 x DIMM 288-polig (1.2 V) ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x8 ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Slot mit Key M) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M)
• storage interfaces
  SATA-600 connectors: 8 x 7-pin Serial ATA ¦ SATA-600 / PCIe 4.0 connectors: 2 x M.2
• interfaces
  1 x Seriell ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x LAN (10Gigabit Ethernet)
• Internal interfaces
  2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x VGA - header ¦ 1 x SPI - header
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• BIOS-Typ
  AMI
• BIOS features
  IPMI support, UEFI BIOS, ACPI 6.2 support, SMBIOS 3.3 support
• hardware monitoring
  CPU core temperature, fan failure warning
• Hardwarefeatures
  Debug LED, ASRock Rack Instant Flash
• Accessories included
  2 x M.2 screws, IO shield
• Cables included
  1 x Serial ATA-Cable
• Labelling
  Plug and Play, FCC Part 15, WEEE, UKCA
• Broad
  24,4 cm
• depth
  24,4 cm
