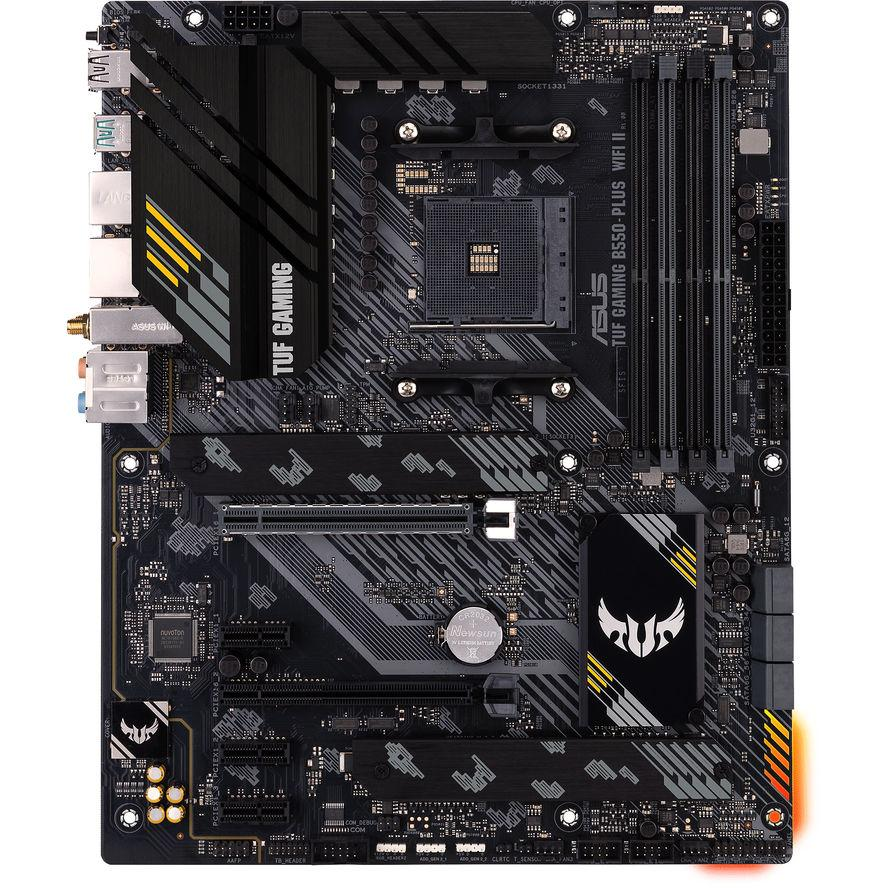

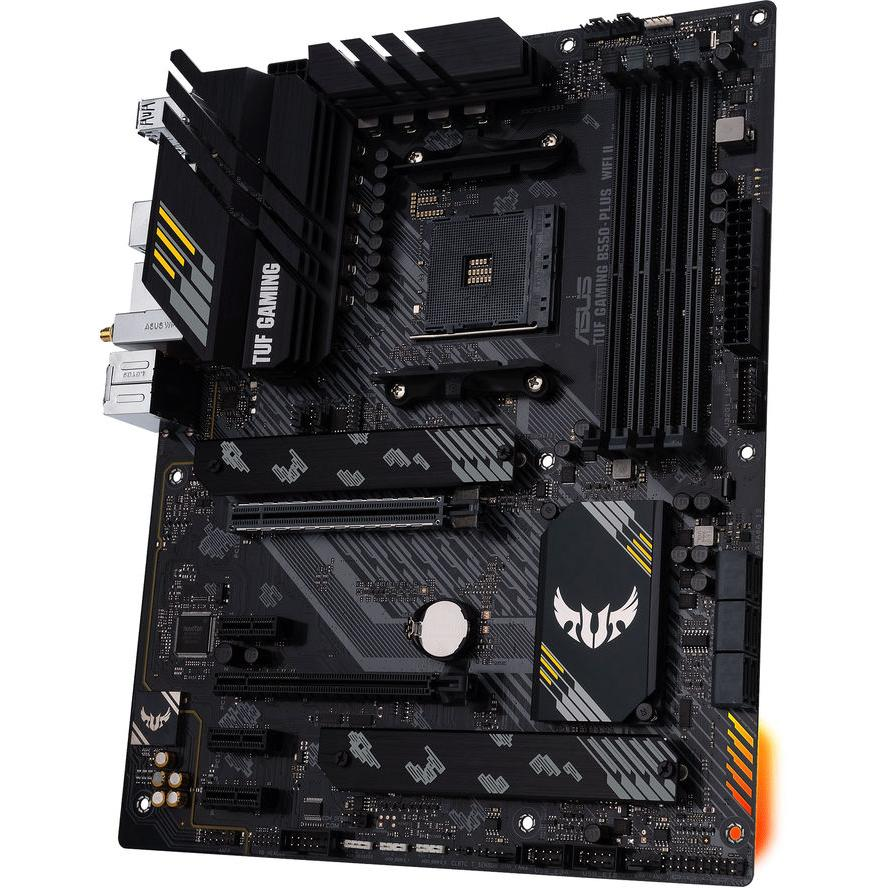

Motherboard Asus TUF GAMING B550-PLUS(WI-FI II) (AMD,AM4,DDR4,ATX)

Τεχνικά Χαρακτηριστικά

• BIOS type
  UEFI AMI
• BIOS memory size
  256 Mbit
• Processor manufacturer
  AMD
• Processor socket
  Socket AM4
• Compatible processors
  3rd generation AMD Ryzen 5, 3rd generation AMD Ryzen 7, 3rd generation AMD Ryzen 9
• Supported RAM
  DDR4 SDRAM
• Number of memory slots
  4th
• RAM type
  DIMM
• Memory channels
  Dual-channel
• ECC
  yes
• Supported memory speed
  2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz
• RAM memory maximum
  128 GB
• Unbuffered memory
  yes
• Supported storage drives
  HDD & SSD
• Supported storage drive interfaces
  M.2, SATA
• RAID level
  0,1,5,10
• Parallel processing technology
  Unsupported
• Number of display supported
  2
• Number of USB 2.0 interfaces
  2
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  1
• SATA III connectors
  6th
• Front panel audio connector
  yes
• ATX power plug (24-pin)
  yes
• CPU fan connector
  yes
• Number of chassis fan plugs
  3
• EPS power connector (8-pin)
  yes
• Thunderbolt headers
  1
• TPM connector
  yes
• Number of COM plugs
  1
• RGB LED pin header
  yes
• Number of USB 2.0 ports
  2
• Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
  4th
• USB 3.2 Gen 2 (3.1 Gen 2) Number of type A slots
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type C slots
  1
• Number of Ethernet LAN connections (RJ-45)
  1
• Number of HDMI connections
  1
• Number of DisplayPort connections
  1
• Headphone outputs
  1
• Microphone input
  yes
• S / PDIF out
  yes
• USB plug
  USB Type-A, USB Type-C
• Built-in ethernet connection
  yes
• Ethernet interface type
  2.5 Gigabit Ethernet
• WIRELESS INTERNET ACCESS
  yes
• Top WiFi standard
  Wi-Fi 6 (802.11ax)
• WLAN standards
  802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
• Bluetooth
  yes
• Bluetooth version
  5.2
• Component for
  Pc
• Motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• Motherboard chipset
  AMD B550
• Audio channels
  7.1 channels
• Supports Windows operating systems
  Windows 10, Windows 11
• PCI-Express x1 (Gen 3.x) connectors
  3
• PCI Express x16 slots (Gen 4.x)
  1
• PCI-Express x16 (Gen 3.x) connectors
  1
• Number of M.2 (M) slots
  2
• Supplied cables
  SATA
• Driver included
  yes
• Package content
  2 x SATA 6Gb / s cables 1 x ASUS Wi-Fi moving antennas 1 x I / O shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x user guide
• broad
  305 mm
• depth
  244 mm
