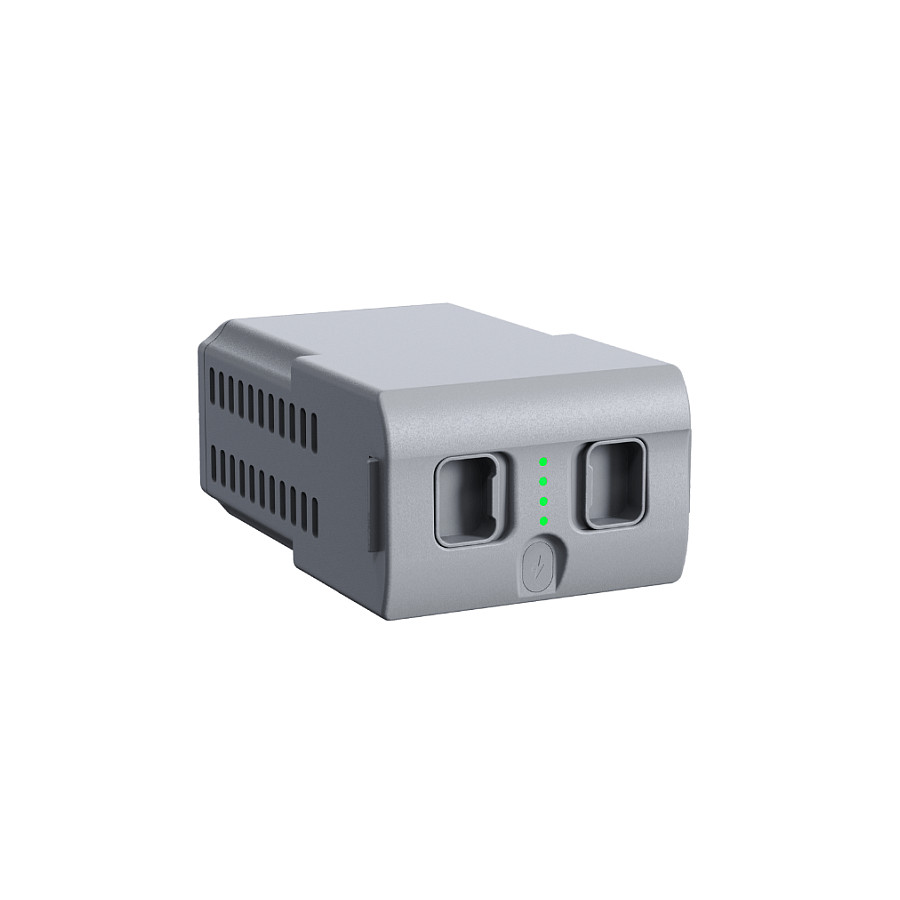

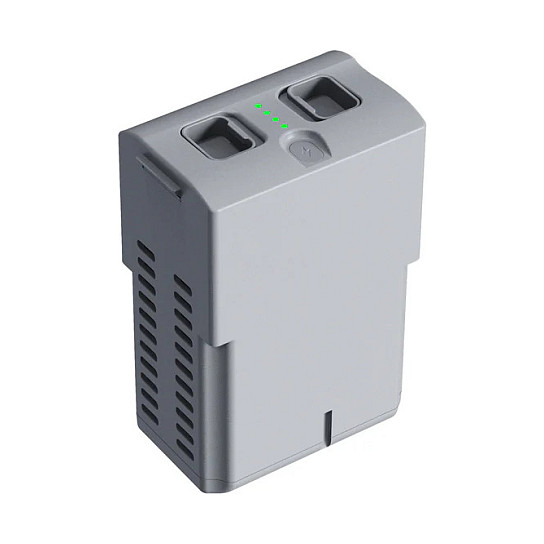

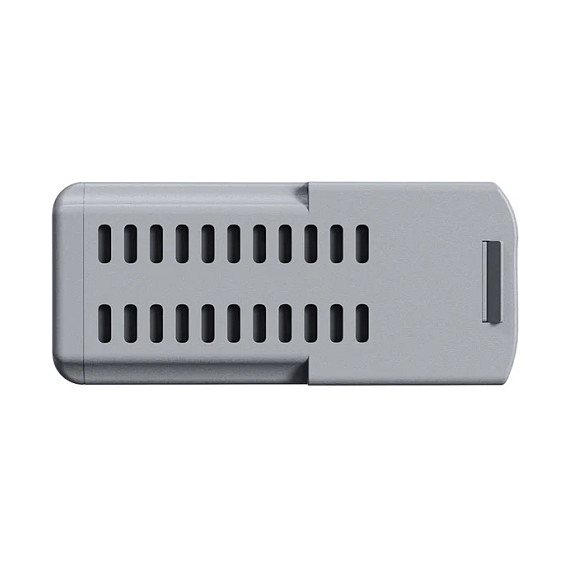

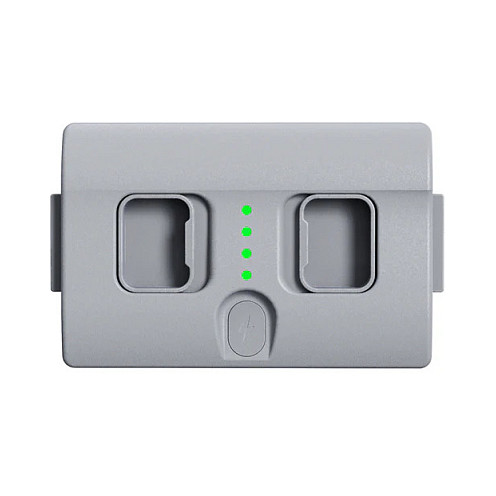

Unitree Go2 Long Range Μπαταρία (BT2-06)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model Number
  BT2-06
• Capacity
  15,000 mAh (15 Ah)
• Energy Capacity
  432 Wh
• Rated Voltage
  28.8 V
• Charging Limit Voltage
  33.6 V
• Voltage Range
  28.0 V – 33.6 V
• Charging Current (Fast)
  9 A
• Charging Time (Fast)
  ~1 hour 15 minutes
• Standard Charger Current
  3.5 A (standard/slow)
• Max Working Power (approx.)
  ~3000 W (system peak capability for high loads)
• Battery Management System
  Unitree proprietary BMS with cell balancing
• Safety Protections
  Balanced charge, overcharge, over-discharge, short circuit, charging temperature protection, charging current protection, storage/self-discharge protection, load detection
• Dimensions (L×W×H)
  120 mm × 80 mm × 182 mm
• Weight
  ~2,500 g
• Compatibility
  Unitree Go2-Edu, Go2-W (also compatible with other Go2 variants for extended runtime)
• Standards
  IEC 62133-2 / IS 16046 (typical lithium battery safety standards)
• Typical Runtime
  3–5 hours (depending on gait, payload and usage)
• Pack Type
  Removable Li-ion battery pack with integrated BMS
• Packaging
  Sold as standalone battery unit with protective casing (packaging adds modest extra weight)
