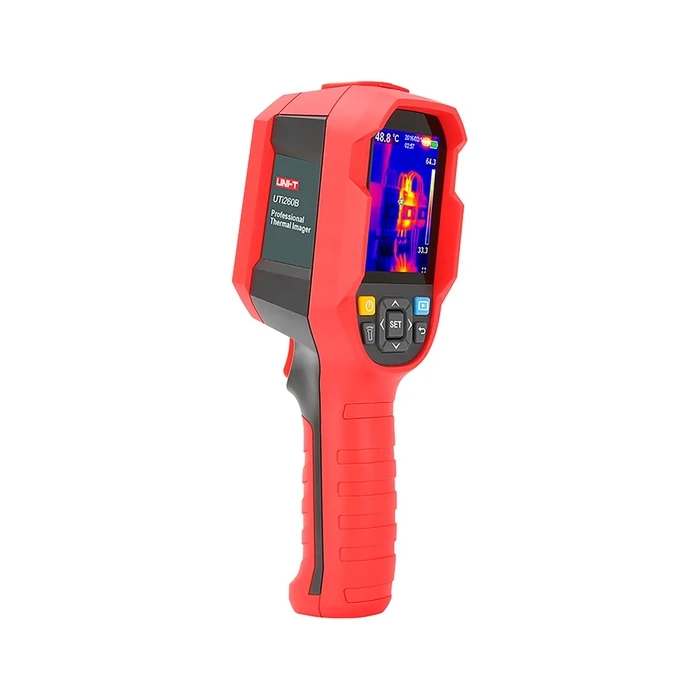

Θερμική Κάμερα UNI‑T UTi260B

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  UNI‑T (Uni‑Trend)
• Model
  UTi260B
• MPN
  MIE0456
• SKU
  WLONONWCRASP6
• EAN
  5901890074957
• Product Category
  Handheld thermal imaging camera / thermal imager
• IR Resolution
  256 × 192 pixels
• Thermal Sensitivity (NETD)
  ≤ 60 mK
• Spatial Resolution (IFOV)
  3.8 mrad
• Frame Rate
  ≤ 25 Hz
• Spectral Range
  8–14 µm
• Field of View (FOV)
  56° × 42°
• Focus
  Focus free
• Temperature Measurement Range
  −20°C to 550°C (−4°F to 1022°F)
• Accuracy
  ±2°C or ±2% (whichever is greater)
• Emissivity
  Adjustable 0.01 to 1.00 (default 0.95)
• Display
  2.8" TFT LCD
• Display Resolution
  320 × 240 pixels
• Digital Camera Resolution
  640 × 480 pixels
• Image Modes
  Thermal, Visual, Fusion, Picture‑in‑Picture (PIP)
• Color Palettes
  7 (White hot, Black hot, Red hot, Ironbow/Iron Red, Lava, Rainbow, Rainbow HC)
• Alarms & Analysis
  High/Low temp alarms, auto hot/cold spot tracking, on‑screen 3 point analyzer, LED/buzzer alarm
• Storage
  microSD card support
• Connectivity
  USB‑C (real‑time image transmission), PC software support
• Battery Type
  Fixed Li‑ion battery
• Battery Voltage/Capacity
  3.6 V, 5000 mAh
• Battery Life
  ≥ 6 hours (typical)
• Ingress Protection
  IP65
• Drop Resistance
  2 m
• Mounting
  1/4" tripod mounting hole
• Physical Dimensions
  236 × 75.5 × 86 mm
• Product Weight
  490 g
• Typical Package Contents
  Thermal camera, USB‑C cable, wrist strap, quick start guide/user manual (may vary by seller)
• Use Cases
  Industrial inspection, electrical/mechanical troubleshooting, building diagnostics, HVAC, preventive maintenance
