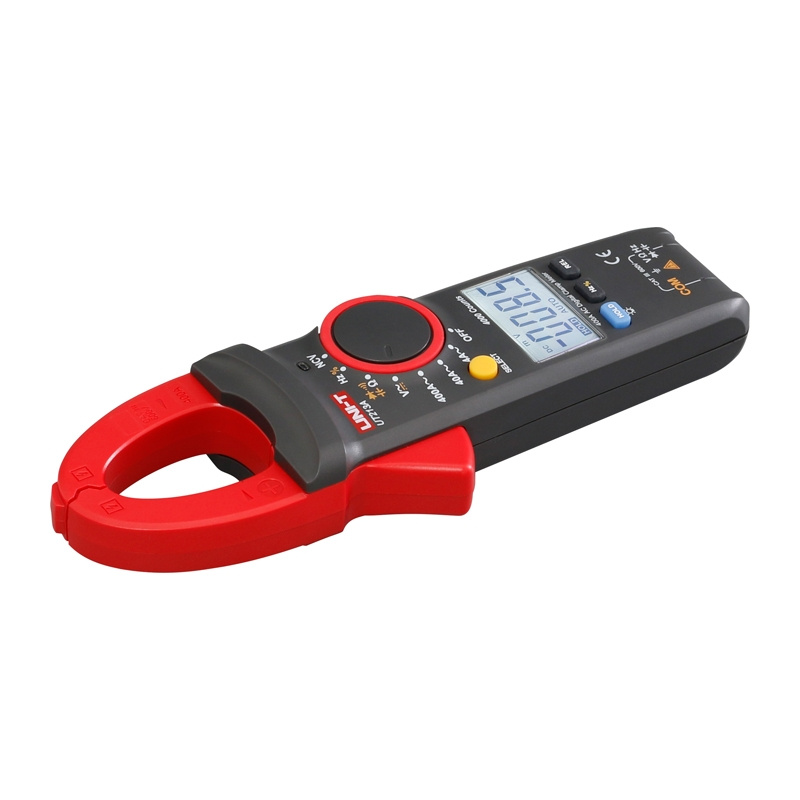

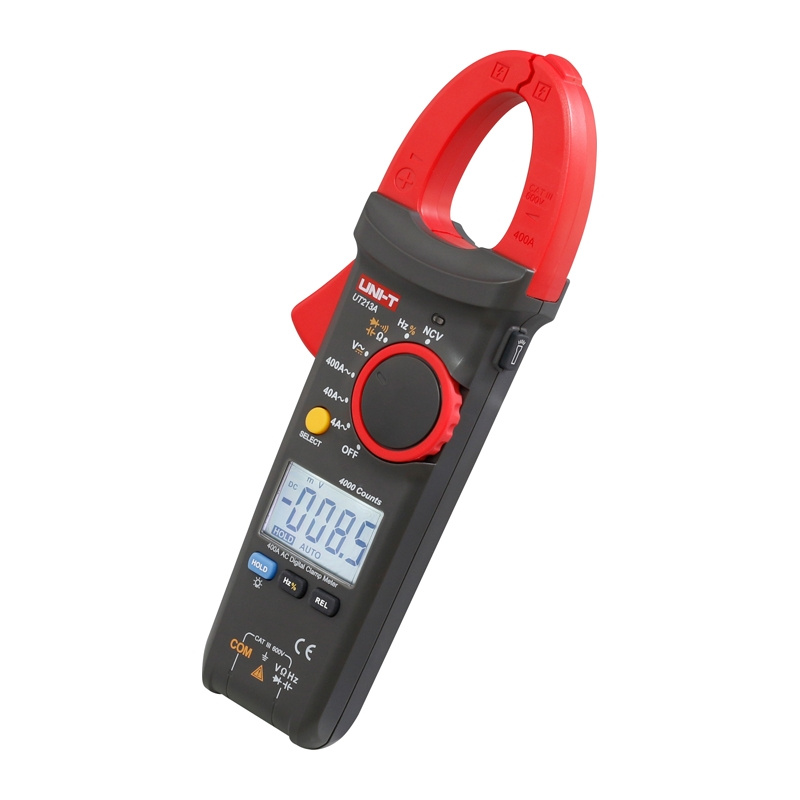

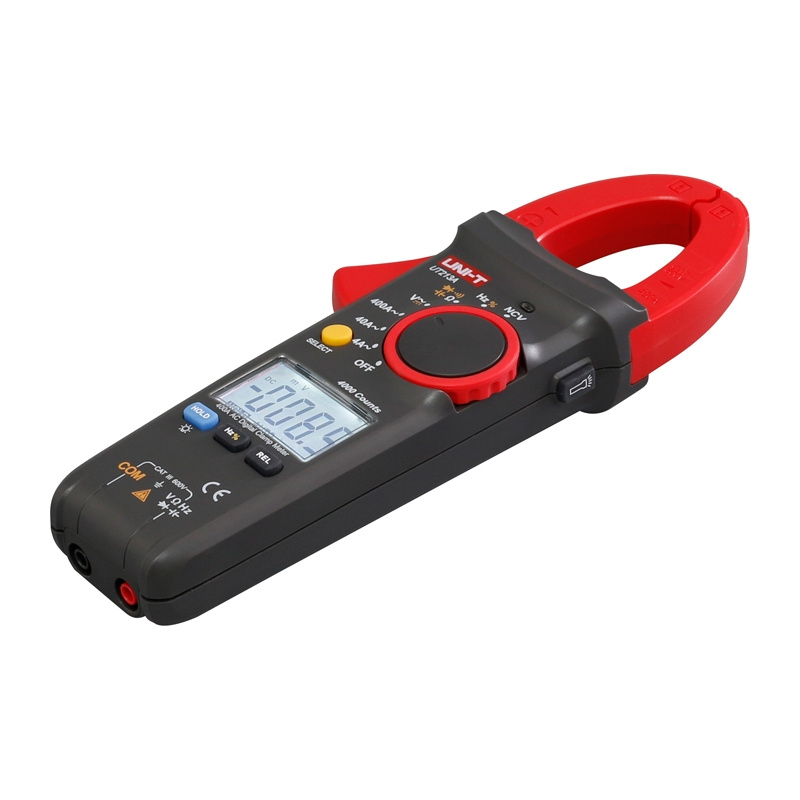

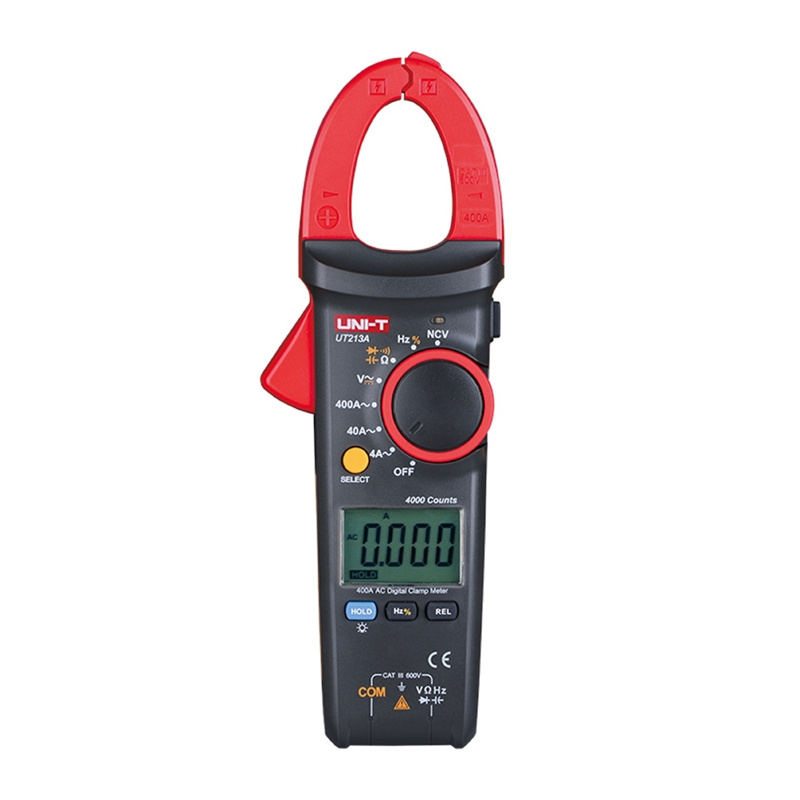

UNI‑T UT213A 400A Ψηφιακή Πένσα Μέτρησης (Clamp Meter)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  UNI‑T (Uni‑Trend)
• Model
  UT213A
• Product Type
  400A Digital Clamp Meter / AC/DC Clamp Meter
• Series
  UT213 Series
• EAN / SKU
  6935750521311
• MPN
  UT213A
• Safety Rating
  CAT III 600V
• Display Count
  4000 counts
• AC Current Ranges
  4 A / 40 A / 400 A
• AC Current Accuracy
  ±(1.8% + 9 digits)
• DC Current
  400 A
• AC Voltage Range
  600 V
• AC Voltage Accuracy
  ±(1.2% + 5 digits)
• DC Voltage Range
  600 V
• DC Voltage Accuracy
  ±(0.8% + 1 digit)
• Resistance Range
  Up to 40 MΩ
• Capacitance Range
  Up to 100 μF
• Frequency Range
  10 Hz – 1 MHz (±(0.1% + 4 digits))
• Temperature Range
  −40°C to 1000°C (−40°F to 1832°F) (models with probe)
• Jaw Opening
  30 mm
• True RMS
  Yes
• NCV (Non-Contact Voltage)
  Yes
• Diode Test
  Yes
• Continuity
  Yes (buzzer)
• Relative Mode
  Yes
• MAX/MIN
  Yes
• Data Hold
  Yes
• Backlight
  LCD backlight
• Flashlight

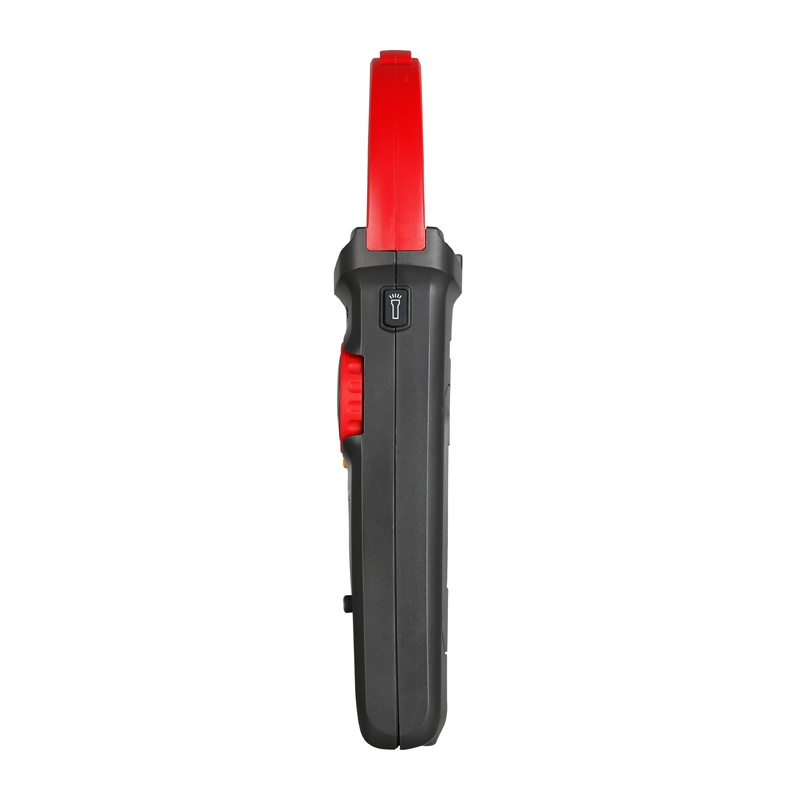

  Built-in torch/flashlight
• Input Impedance (DCV)
  ≥10 MΩ
• Power Supply
  3 × 1.5 V (R03 / AAA) batteries
• Display Size
  38 mm × 24 mm
• Product Color
  Red and grey
• Product Dimensions
  220 mm × 75 mm × 40 mm
• Product Net Weight
  280 g
• Package Contents
  Meter, test leads, batteries, carrying bag/case, English manual
• Certifications
  CE, UKCA, cETLus
• Packaging (carton)
  40 pcs per carton; carton dimensions 485 × 345 × 385 mm; carton gross weight ≈18.2 kg
