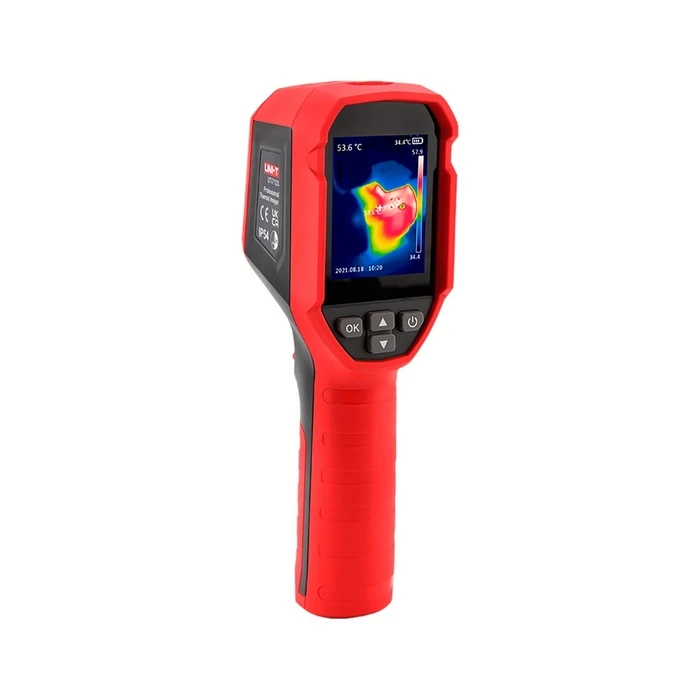

Uni-T UTi712S Θερμική Κάμερα χειρός (Thermal Imaging Camera)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Uni-T UTi712S Thermal Imaging Camera
• Brand
  UNI-T (Uni-Trend Technology)
• Model
  UTi712S
• Series
  Pro Duty / 120 Pro Duty Series
• IR Resolution
  120 × 90 pixels
• Display
  2.4-inch TFT, 320 × 240 pixels
• Frame Rate
  25 Hz
• Field of View (FOV)
  50° × 38°
• Focus
  Focus-free
• Temperature Range
  -20°C to 400°C (-4°F to 752°F)
• Thermal Sensitivity (NETD)
  60 mK
• Emissivity
  Adjustable
• Color Palettes
  6 (White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava)
• Auto Functions
  Auto hot/cold spot tracking; auto high/low temperature alarm
• Special Features
  Laser pointer; LED flashlight; buzzer alarm; PC software analysis
• Storage
  Micro SD card (commonly supplied 16GB)
• Connectivity
  USB Type-C (some listings reference optional Wi‑Fi)
• Battery
  Rechargeable Li-ion battery; typical operating time >8 hours
• Tripod Mount
  1/4-inch thread
• Ingress Protection
  IP54
• Drop Resistance
  2 meters
• Dimensions (product)
  7.72 × 2.48 × 2.95 inches (≈19.6 × 6.3 × 7.5 cm)
• Weight (product)
  ≈310 g
• Package Contents
  Thermal imager, Type-C USB cable, Micro SD card (often 16GB), User manual
• Certifications
  CE, UKCA, FCC, RoHS
• Applications
  Electrical inspection, PCBA inspection, motor inspection, HVAC, building inspection, solar panel inspection, automotive maintenance
