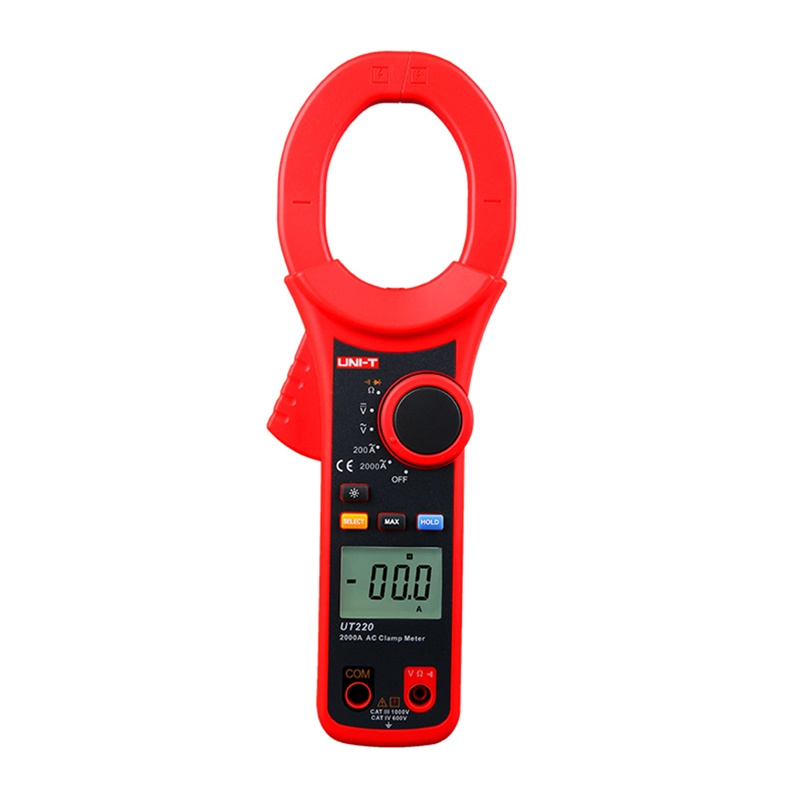

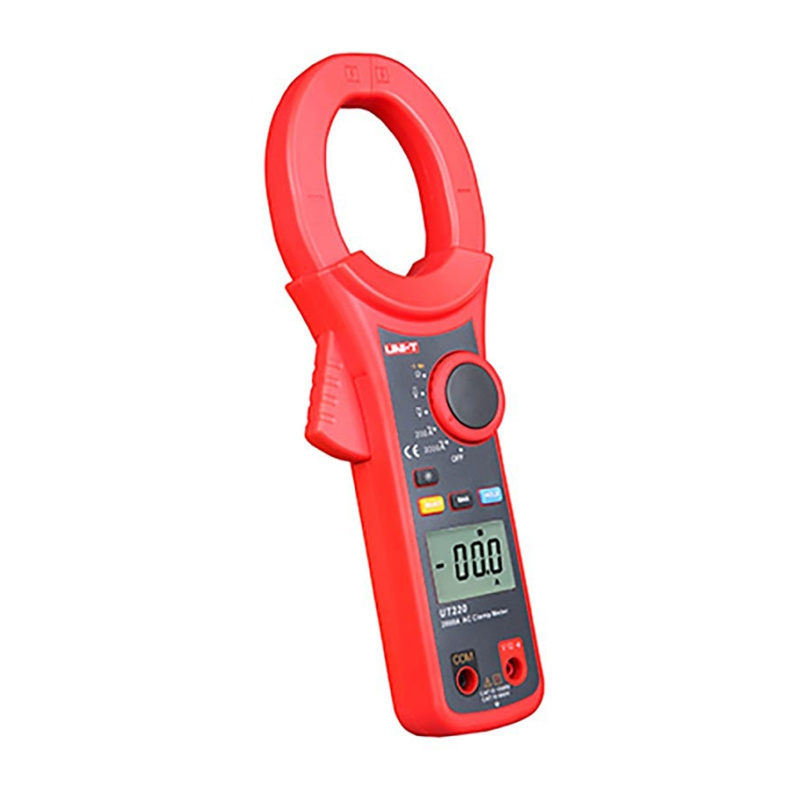

Ψηφιακό λαβομετρικό αμπερόμετρο Uni-T UT220 (2000A)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  UNI-T (Uni-Trend)
• Model / MPN
  UT220
• Product Type
  Digital clamp meter (clamp multimeter)
• AC Current Range
  0–2000 A
• DC Current Range
  0–2000 A
• Jaw Opening
  63 mm
• Display Count
  2000
• AC Voltage Range
  Up to 750 V (True RMS)
• DC Voltage Range
  Up to 1000 V
• Resistance Range
  Up to 20 MΩ
• Capacitance Range
  Up to 60 mF
• Frequency Range
  Up to 20 MHz
• Temperature Range
  -40°C to 1000°C (-40°F to 1832°F) with thermocouple
• Accuracy (AC/DC current)
  ±(2.5% + 5)
• Accuracy (AC voltage)
  ±(1.2% + 5)
• Accuracy (DC voltage)
  ±(0.8% + 1)
• Accuracy (Resistance)
  ±(1% + 2)
• Accuracy (Capacitance)
  ±(3% + 5)
• Accuracy (Frequency)
  ±(0.1% + 3)
• Display Features
  2000-count LCD, analog bar graph, full icon display
• Functions
  Auto range; True RMS; Diode test; Continuity buzzer; MAX/MIN; Data hold; MIN/I-OUT; Low battery indication
• Input Impedance
  ≥10 MΩ
• Duty Cycle
  10%–90%
• Overload Protection
  Yes for all ranges
• Safety Category
  CAT III 1000V / CAT IV 600V
• Certifications
  CE, UKCA, cETLus
• Power Supply
  9V battery (6F22 / 6LF22)
• Weight
  389 g
• Product Dimensions
  298 mm x 107 mm x 47 mm
• Color
  Red and grey
• Accessories Included
  Test leads, carrying bag, English manual, gift box
• Packing Quantity (example listing)
  40 pcs per carton (varies by supplier)
