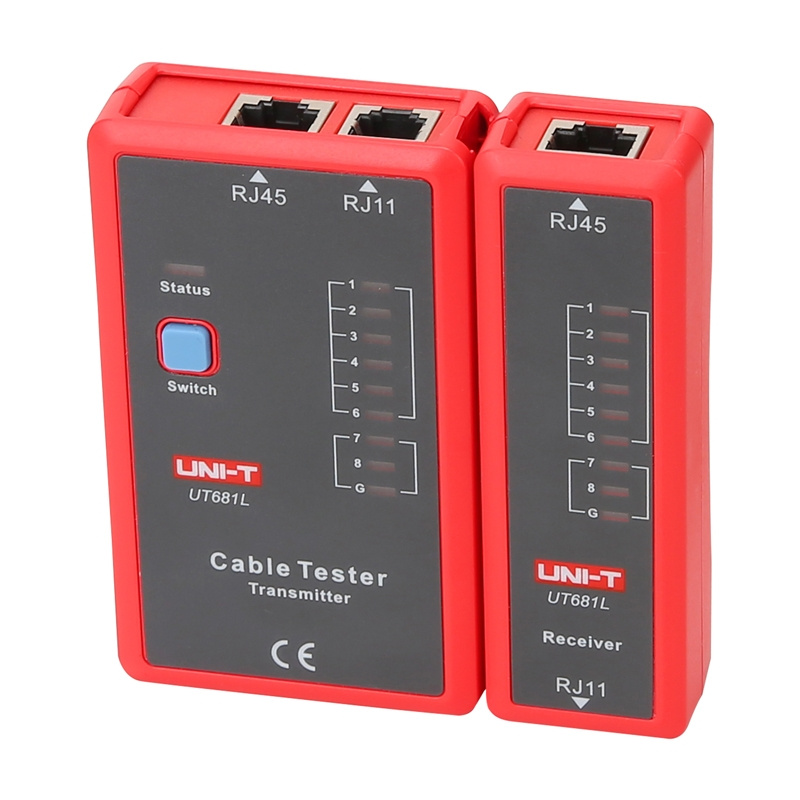

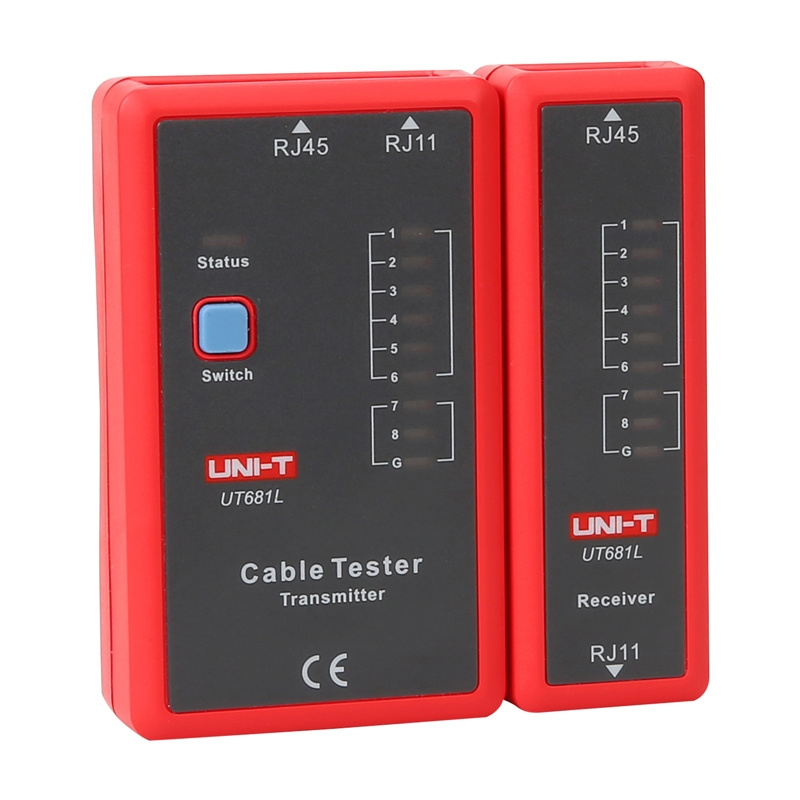

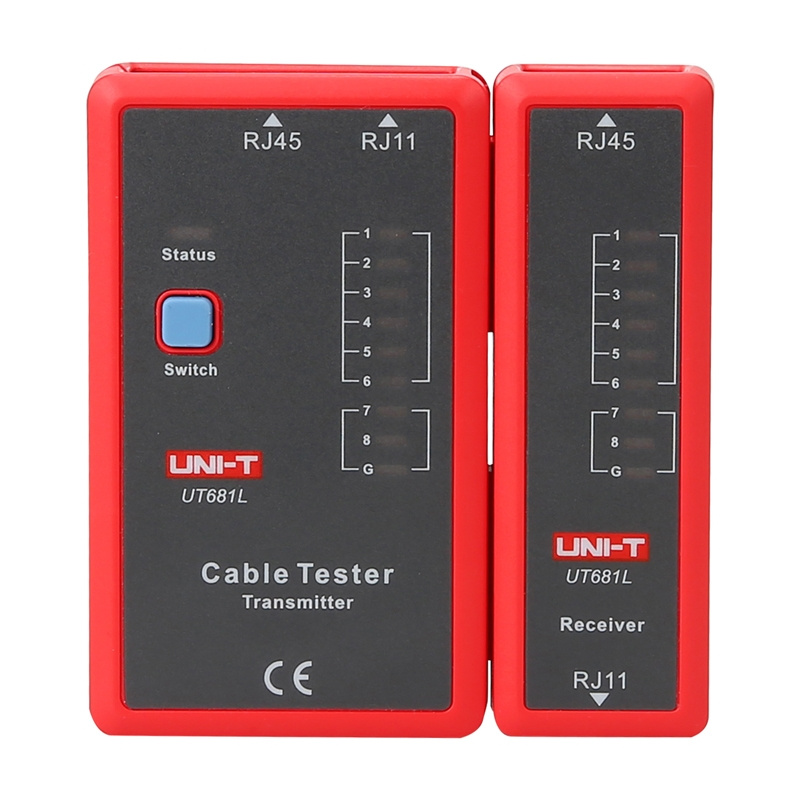

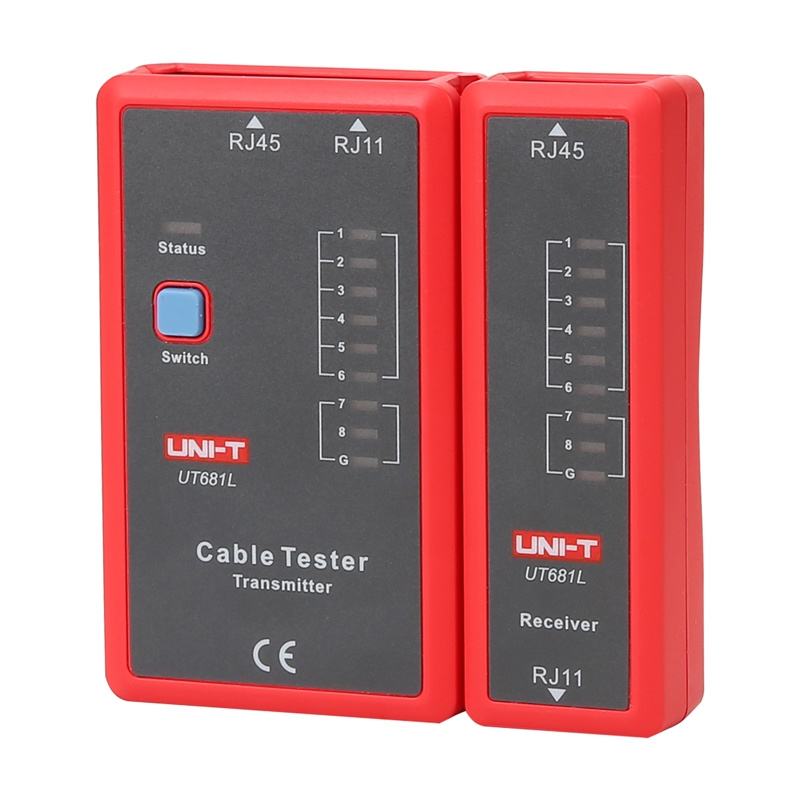

UNI-T Καλωδιακός Ελεγκτής UT681L (RJ45/RJ11)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  UNI-T
• Model / MPN
  UT681L
• SKU / EAN
  6935750568132
• Product type
  Handheld network cable tester (RJ45/RJ11)
• Supported cable types
  RJ45 (Ethernet), RJ11 (telephone)
• Test functions
  Continuity, open circuit, short circuit, crossed pairs
• Display / Indicators
  LED status display; numeric LED sequence for pair detection
• Operation
  Single-key operation; fast and slow test modes; manual shutdown
• Power supply
  1 × 9V battery
• Low battery detection
  Below 7.2V (low-battery indication)
• Shielded cable support
  Supports shielded and unshielded Ethernet cables
• Transmitter dimensions
  102 × 62 × 28 mm
• Receiver dimensions
  102 × 37 × 28 mm
• Transmitter net weight
  87 g
• Receiver net weight
  51 g
• Total net weight (transmitter + receiver)
  138 g
• Color
  Red and grey
• Operating temperature
  0 to 40 °C
• Storage temperature
  -10 to 50 °C
• Operating humidity
  20 to 80% RH
• Storage humidity
  10 to 90% RH
• Maximum altitude
  < 2000 m
• Safety / EMC standards
  CE EN61326-1:2013; EN61326-2-2:2013
• Certifications
  CE, UKCA
• Package contents
  Cable tester (main unit), remote terminator, 9V battery, English manual, gift box
