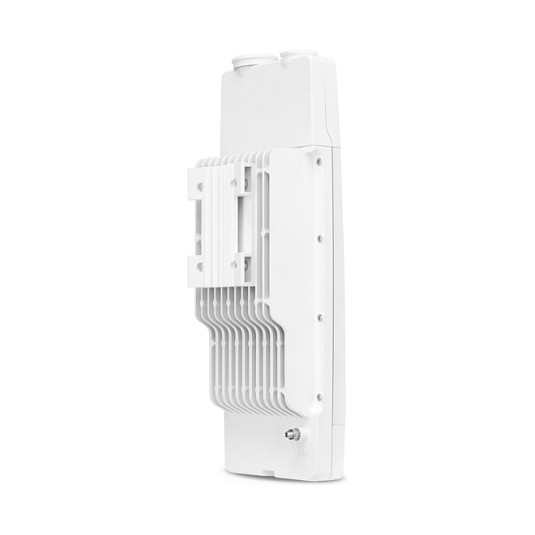

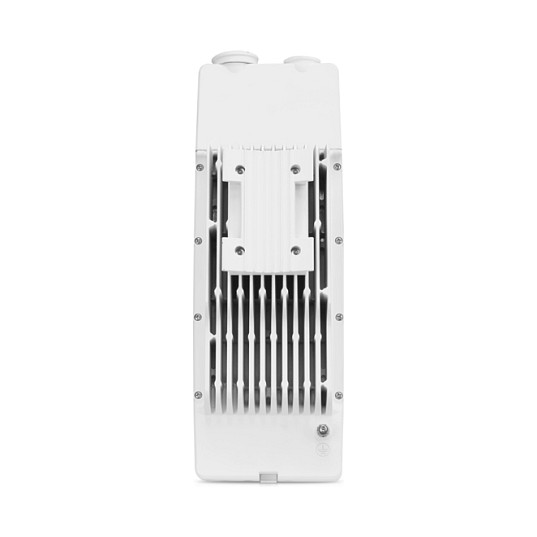

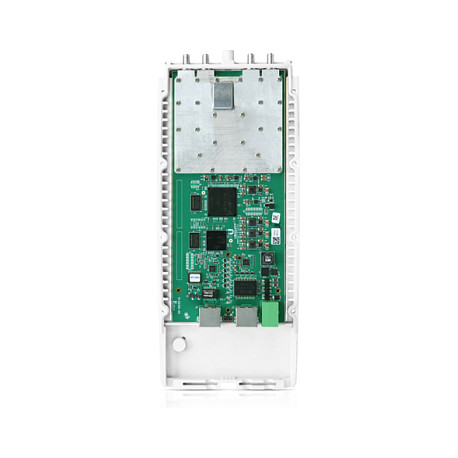

Ubiquiti AF-11 airFiber 11 GHz - Μονάδα ραδιοφώνου ασύρματης ζεύξης σημείου-προς-σημείου

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Ubiquiti
• Model
  AF-11 (airFiber 11)
• Product Type
  Modular 11 GHz point-to-point wireless backhaul radio
• MPN
  AF-11
• EAN / Barcode
  0810010071620
• SKU
  633543
• Maximum Throughput
  1.2+ Gbps
• Maximum Range
  300+ km (region and antenna dependent)
• Encryption
  128-bit AES
• Operating Frequency
  10.7–11.7 GHz (region dependent)
• Channel Bandwidths
  3.5 / 5 / 7 / 10 / 14 / 20 / 28 / 30 / 40 / 50 / 56 MHz selectable
• TX Power (max conducted)
  30 dBm (region dependent)
• Frequency Accuracy
  ±1 ppm (UISP tech specs) / ±2.0 ppm (other specs)
• Uplink/Downlink Duty Cycles
  Programmable
• Processor
  INVICTUS / INVICTUS 2 (product-dependent naming)
• Network Interfaces
  1 × Gigabit Ethernet data port; 1 × 10/100 Ethernet management port
• RF Connectors
  (4) SMA weatherproof connectors (two per chain); references to (2) N-Type for some integrations
• Mounting
  AF-11G35 compatible mount
• Power Method
  Passive PoE or DC power block / terminal block direct-wire
• Included Power Supply
  50V DC, 1.2A Gigabit PoE adapter (included)
• Supported Voltage Range
  38–56 V DC
• Maximum Power Consumption
  36 W
• Dimensions
  327 × 112 × 86 mm (32.7 × 11.2 × 8.6 cm)
• Product Weight
  2260 g
• Operating Temperature
  -40 to 55 °C
• Certifications
  CE, FCC, IC (FCC Part 101 / ETSI EN 302 217 referenced)
• NDAA Compliant
  Yes (UISP tech specs)
• Latency
  <200 µs at full throughput (full duplex)
• Accessories Included
  PoE adapter, mounting hardware (varies by SKU)
• Package Contents
  AF-11 radio module, PoE adapter, power and mounting hardware (supplier dependent)
