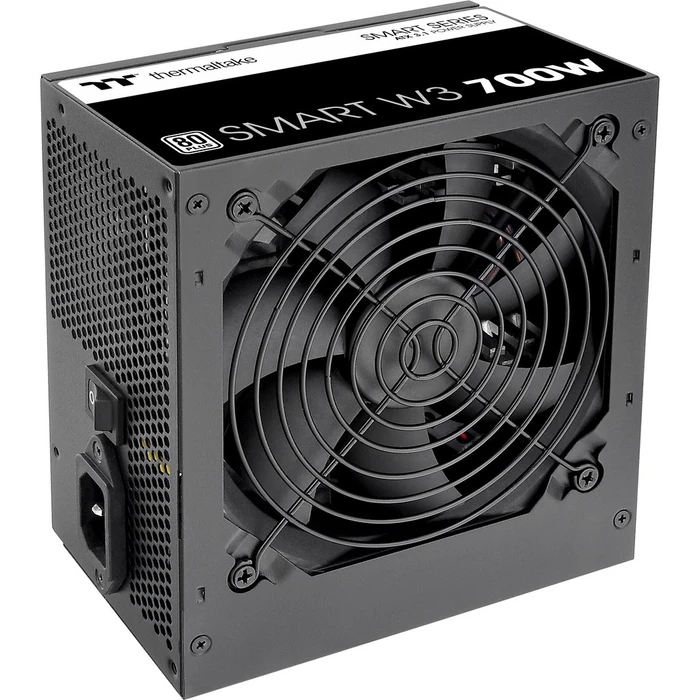

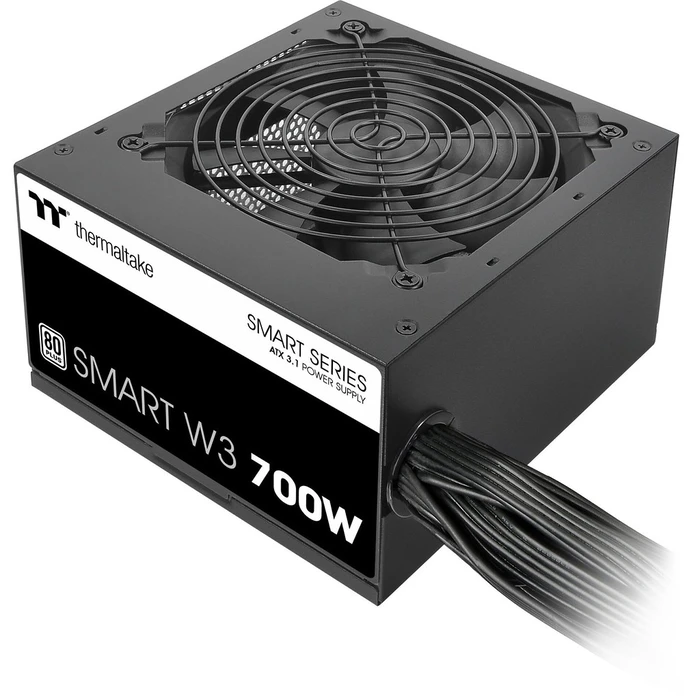

Τροφοδοτικό Υπολογιστή Thermaltake Smart W3 0700W

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Manufacturer and Model
  Thermaltake Technology Co., Ltd., Model: PS-SPW-0700NNFAWE-1
• Output Power
  700W
• Efficiency
  80% efficient
• Input Voltage
  100-240V AC, 50Hz/60Hz
• Output Voltages
  +3.3V DC, +5V DC, +12V DC, -12V DC, +5V SB
• Max Output Currents
  +3.3V and +5V: 18A, +12V: 58.33A, -12V: 0.3A, +5V SB: 3A
• Max Output Powers
  +3.3V: 110W, +12V: 700W, -12V: 3.6W, +5V SB: 15W
• Number of Rails
  1 single +12V rail
• Cooling System
  Ultra-quiet 120mm cooling fan
• Protection Features
  OCP, OVP, UVP, OPP, SCP, OTP
• Connectors
  Main Power (24-pin): 1, ATX 12V (4+4-pin): 2, PCIe (6+2-pin): 2, SATA (5-pin): 4, Peripheral (4-pin): 4
• Cable Lengths
  Main Power (24-pin): 600mm, ATX 12V (4+4-pin): 600mm and 150mm, PCIe (6+2-pin): 500mm and 150mm, SATA (5-pin): 500mm, 150mm, 150mm, and 150mm, Peripheral (4-pin): 500mm, 150mm, 150mm, and 150mm
• Dimensions
  150mm (W) x 86mm (H) x 140mm (D)
• Operating Temperature
  5°C to 40°C
• Operating Humidity
  20% to 85%, non-condensing
• Storage Temperature
  -40°C to +55°C
• Storage Humidity
  10% to 95%, non-condensing
• Cooling System (Alternate)
  12cm FDB fan
• Power Factor Correction (PFC)
  Active PFC
• Hold Up Time
  >17msec at 80% load
• Safety Approvals
  CB, FCC, cTUVus, ICES
