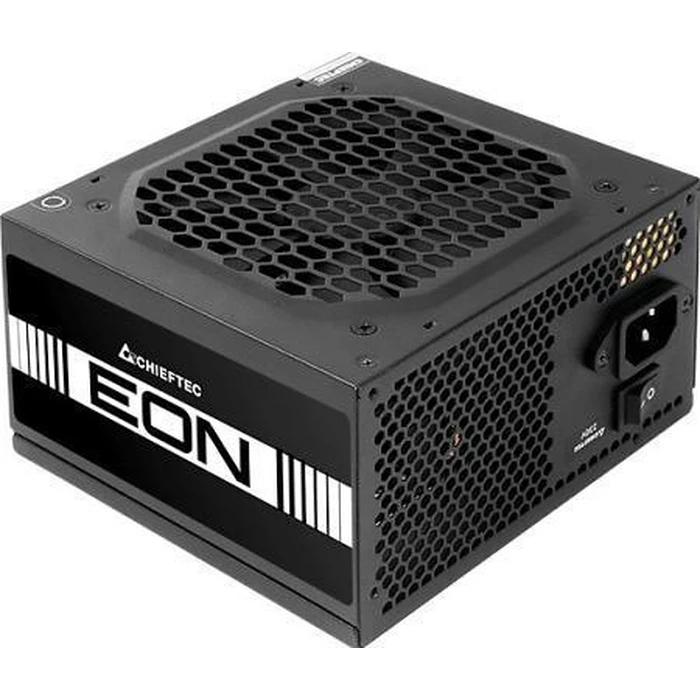

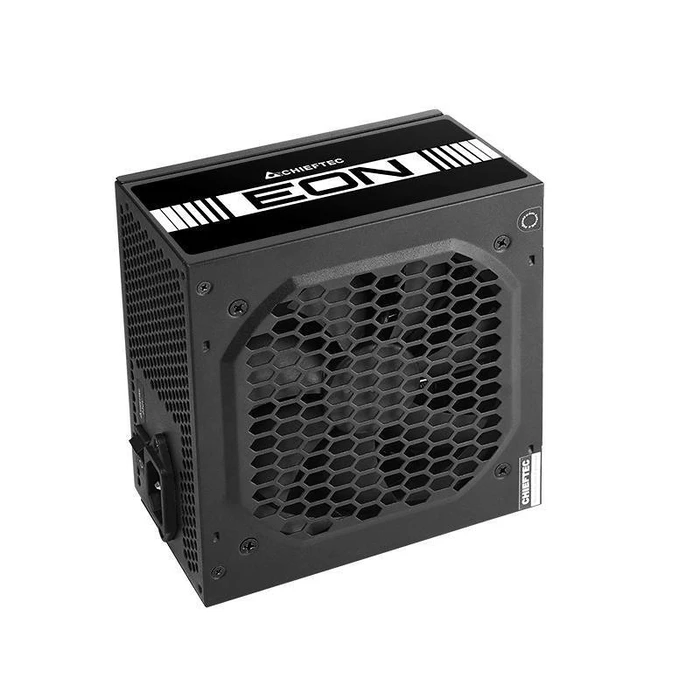

Τροφοδοτικο Chieftec 700W EON (80+)

Τεχνικά Χαρακτηριστικά

• Overall performance
  700W
• AC input voltage
  200 - 240V
• AC input frequency
  50Hz
• Input current
  5.5A
• Maximum input current (at 220V)
  5.5A
• Power factor
  0.9
• Power factor correction filter (PFC)
  Active
• Combined current (-12V)
  4.8W
• Max. output current (+3.3V)
  20A
• Max. output current (+12V1)
  53 A
• Max output current (+5V)
  20A
• Max. output current (-12V)
  0.4A
• Max. output current (+5Vsb)
  2.5A
• Energy protection properties
  Overvoltage and inrush current, overvoltage protection, short circuit
• Motherboard connector plug
  20+4 pin ATX
• Power cable length motherboard
  65cm
• Number of SATA power connectors
  4
• SATA power cable length
  450,600,750mm
• Peripheral (Molex) power cable length
  450,600,750mm
• Cable type
  Non-modular
• Purpose
  PC/Server
• Power supply unit (PSU) form factor
  ATX
• 80 Plus certification
  80 PLUS
• Supported motherboard form factors
  ATX
• ATX version
  2.3
• Product color
  Black
• Fan diameter
  12cm
• Warranty period
  2 years)
• Width
  150mm
• depth
  140mm
• Height
  86mm
• Weight
  1.4kg
