TRENDnet Βιομηχανικός Σκληρυμένος Μετατροπέας Μέσων 1000BASE-LX Πολυτροπική SC TI-FGSC

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  TRENDnet
• Model / MPN
  TI-FGSC
• SKU
  603793
• EAN / Barcode
  0710931163186
• Product Type
  Hardened industrial Gigabit Ethernet-to-fiber media converter
• Copper Port
  1 × Gigabit RJ45 Auto-MDIX
• Fiber Port
  1 × 1000BASE-LX SC multimode
• Fiber Wavelength
  1310 nm
• Recommended Fiber
  50/125 µm multimode fiber
• Maximum Fiber Distance
  1 km
• Optical Output Power
  -9 to -3 dBm
• Optical Input Power
  -24 to -3 dBm
• Optical Power Budget
  15 dB
• Supported Ethernet Standards
  10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-LX
• Data Rate (full duplex)
  2 Gbps (1 Gbps each direction)

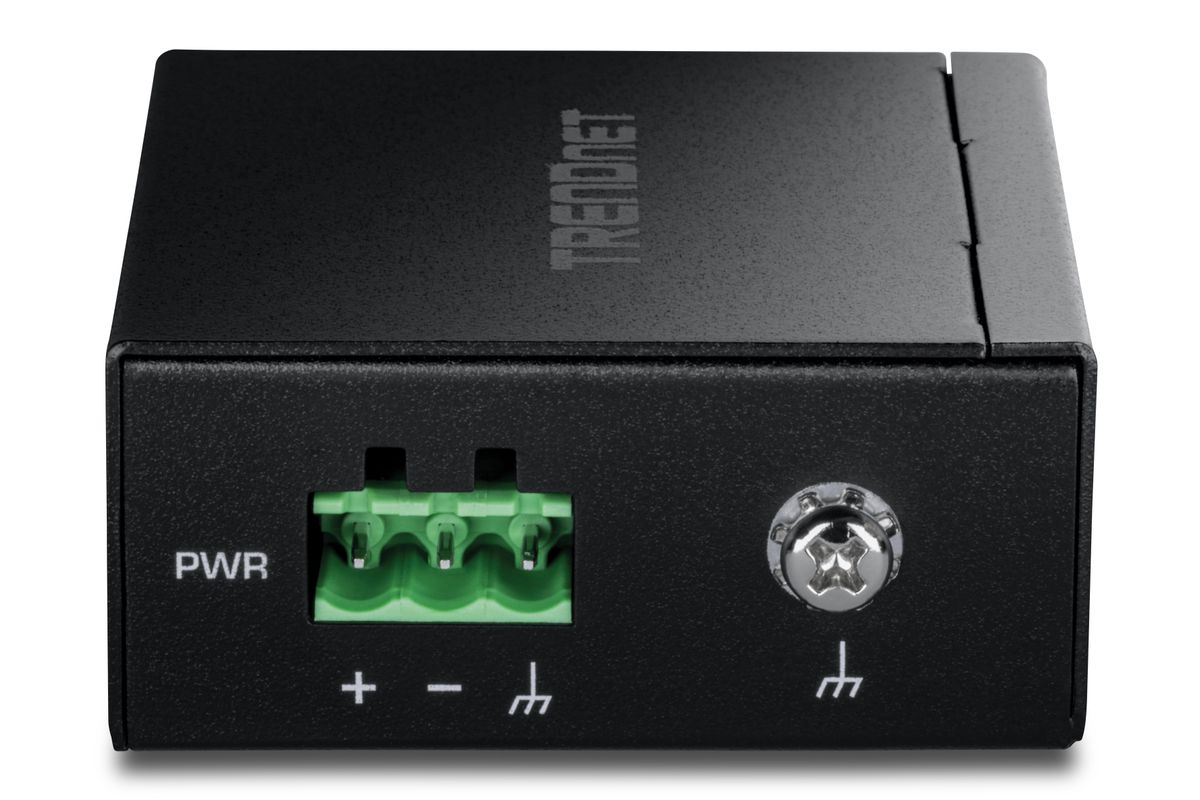

• Power Input
  12–60 V DC via 3-pin removable terminal block
• Overload Protection
  Yes
• DIP Switches
  2 (LFPT and switch/converter mode selection)
• LED Indicators
  Integrated status LEDs for link/power/activity
• Operating Temperature
  -40°C to 75°C
• Enclosure / Material
  Hardened metal housing
• Protection Rating
  IP50
• Surge Protection (RJ45)
  RJ45 port with ~6 kV surge protection (reported)

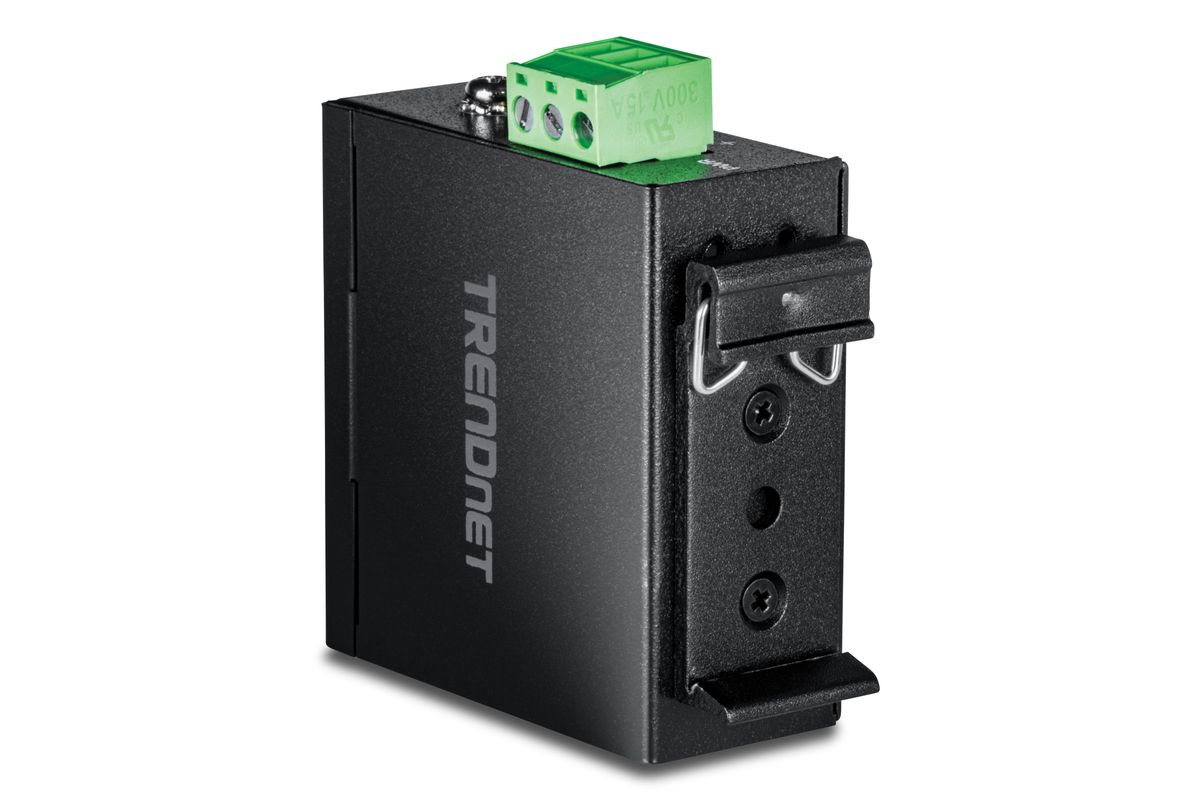

• Mounting Options
  DIN-rail and wall mount
• Modes
  Switch mode (Layer 2) and Converter/pass-through mode
• Link Fault Pass Through (LFPT)
  Supported
• Auto-MDIX
  Supported on RJ45
• Compliance / Notes
  NDAA and TAA compliance reported by resellers
• Typical Applications
  Industrial automation, surveillance, building-to-building links, control cabinets
