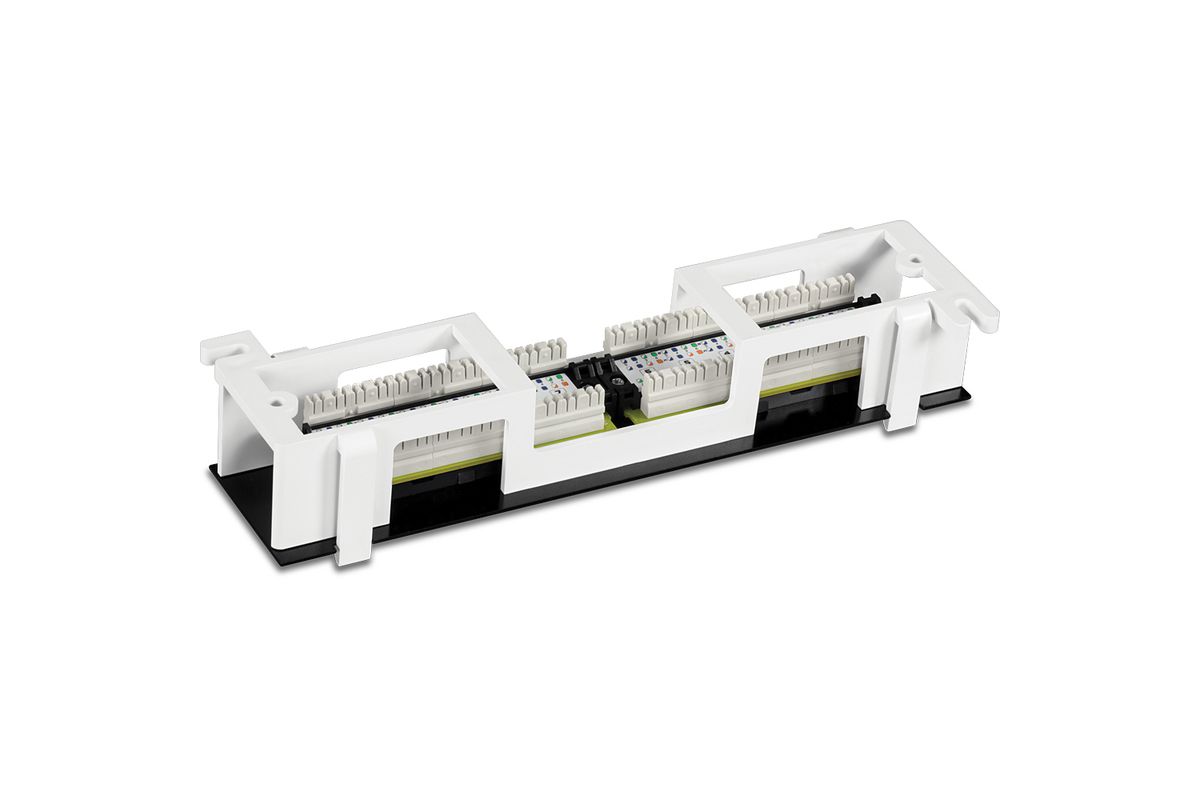

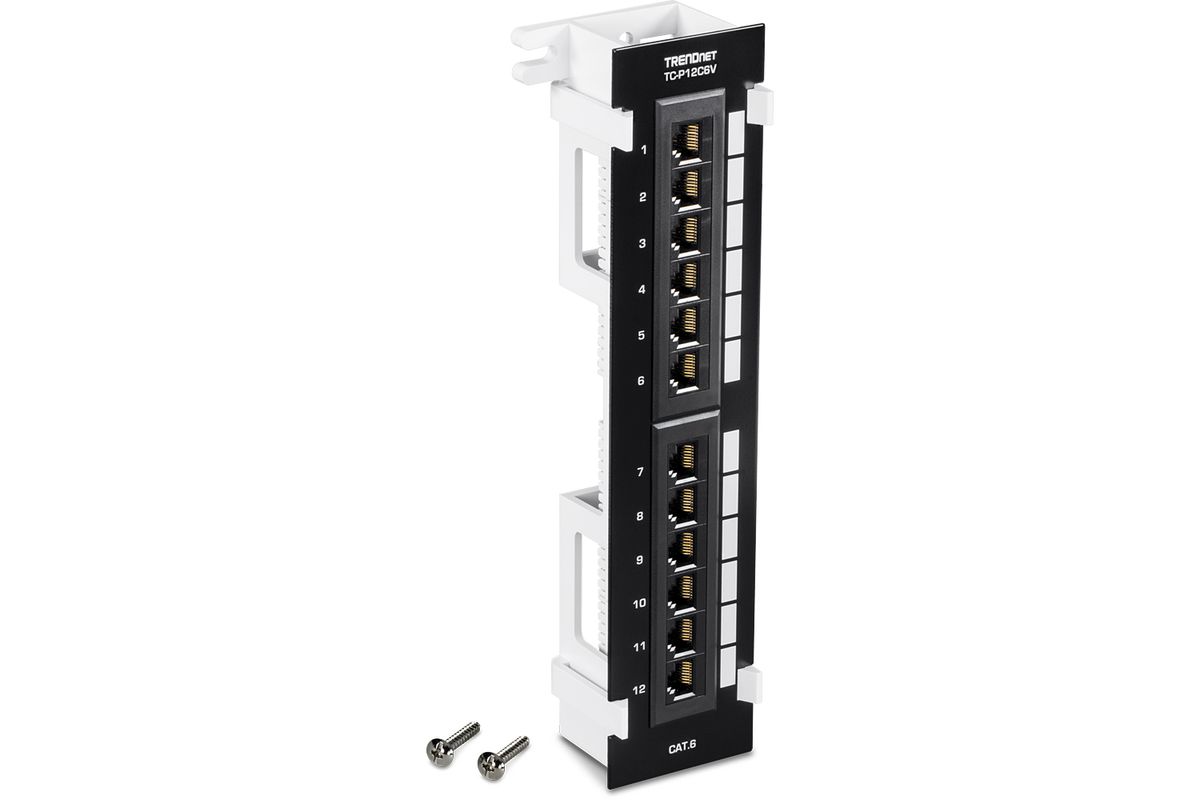

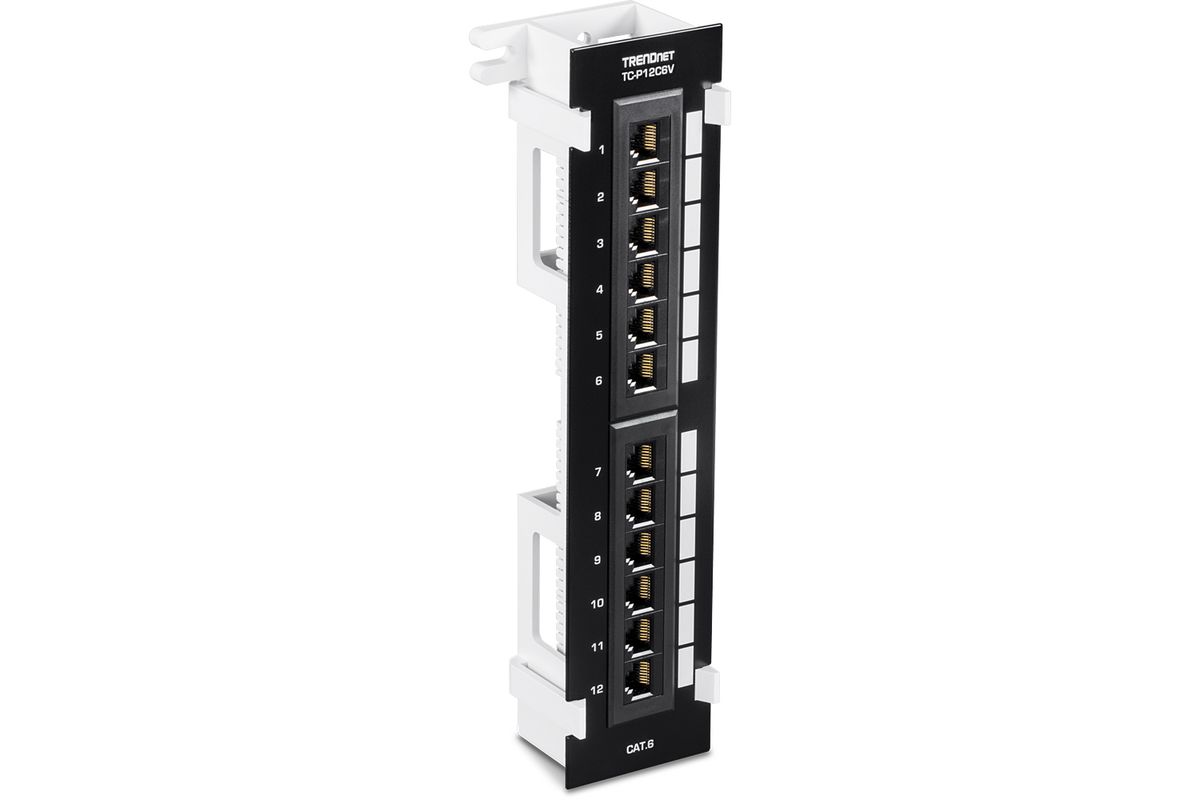

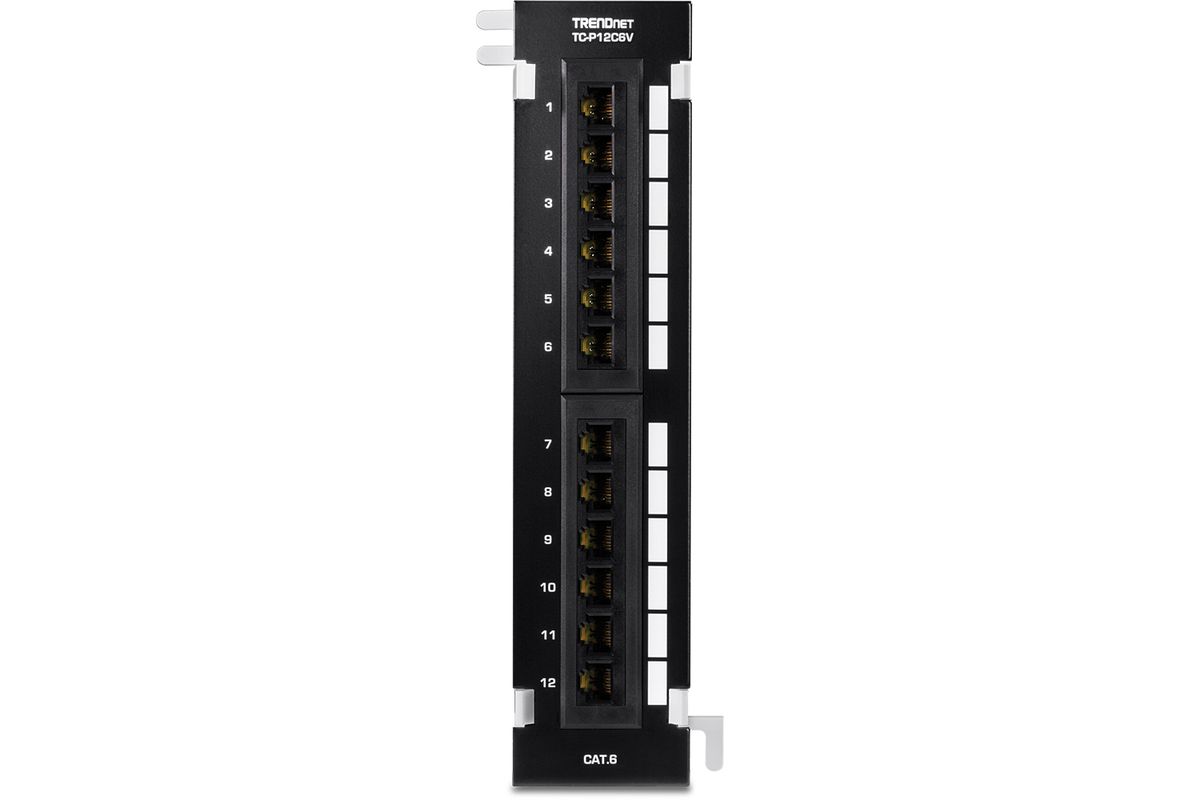

TRENDnet Patchpanel 12 θυρών Cat6 μη θωρακισμένο (Wall-Mount) - TC-P12C6V

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  TRENDnet
• Model / MPN
  TC-P12C6V
• SKU
  603953
• EAN / Barcode
  0710931401646
• Product Type
  12-Port Cat6 Unshielded Wall-Mount Patch Panel
• Ports
  12 RJ-45 ports
• Category Rating
  Category 6 (Cat6)
• Shielding
  Unshielded (UTP)
• Bandwidth
  Up to 250 MHz
• Ethernet Support
  10/100/1000 Mbps (Gigabit); supports 2.5G/5GBASE-T up to 100 m and 10GBASE-T up to 55 m with appropriate cabling
• Contacts
  Gold-plated RJ-45 contacts (specified as 50-micron gold plating in vendor literature)
• Termination

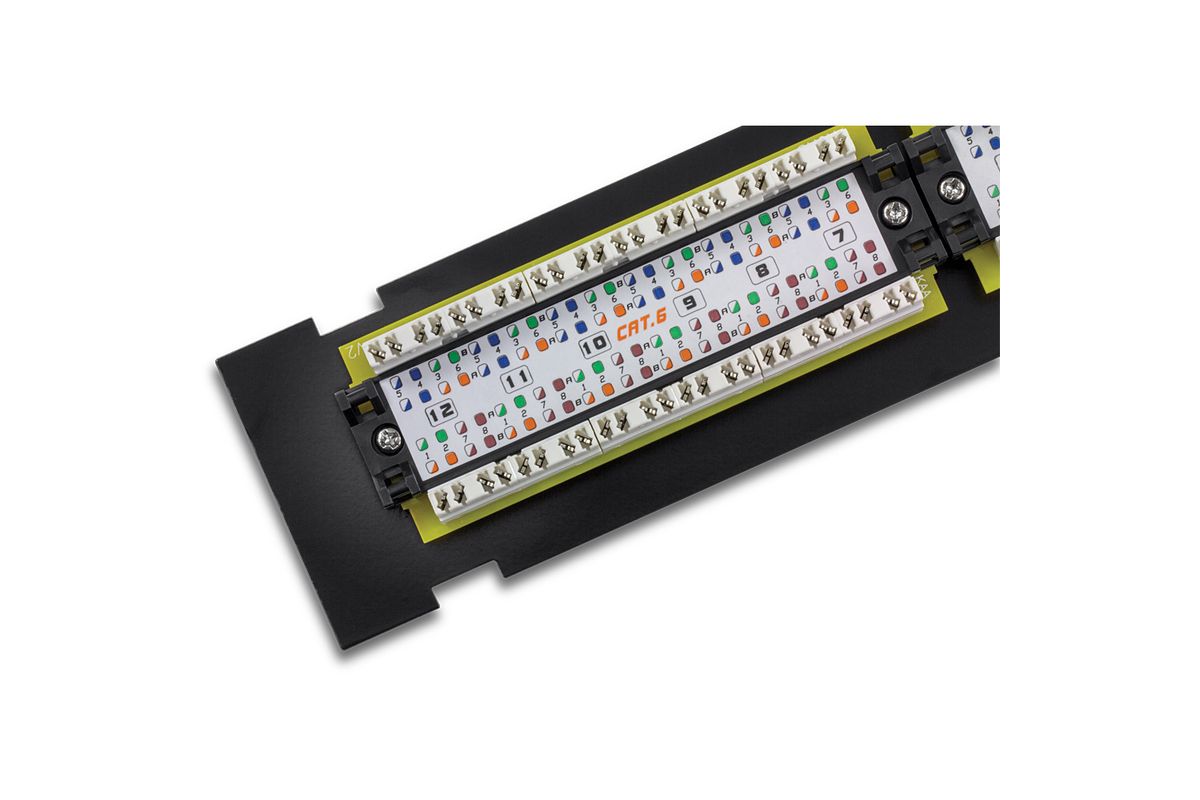

  110/Krone IDC termination, 180° IDC terminals
• Wiring Schemes
  T568A and T568B color-coded diagram
• Cable Compatibility
  22–26 AWG solid or stranded copper conductors
• Construction Material
  SPCC steel
• Color
  Black
• Dimensions (product)
  57 × 253 × 49 mm
• Product Weight
  292 g
• Included Accessories

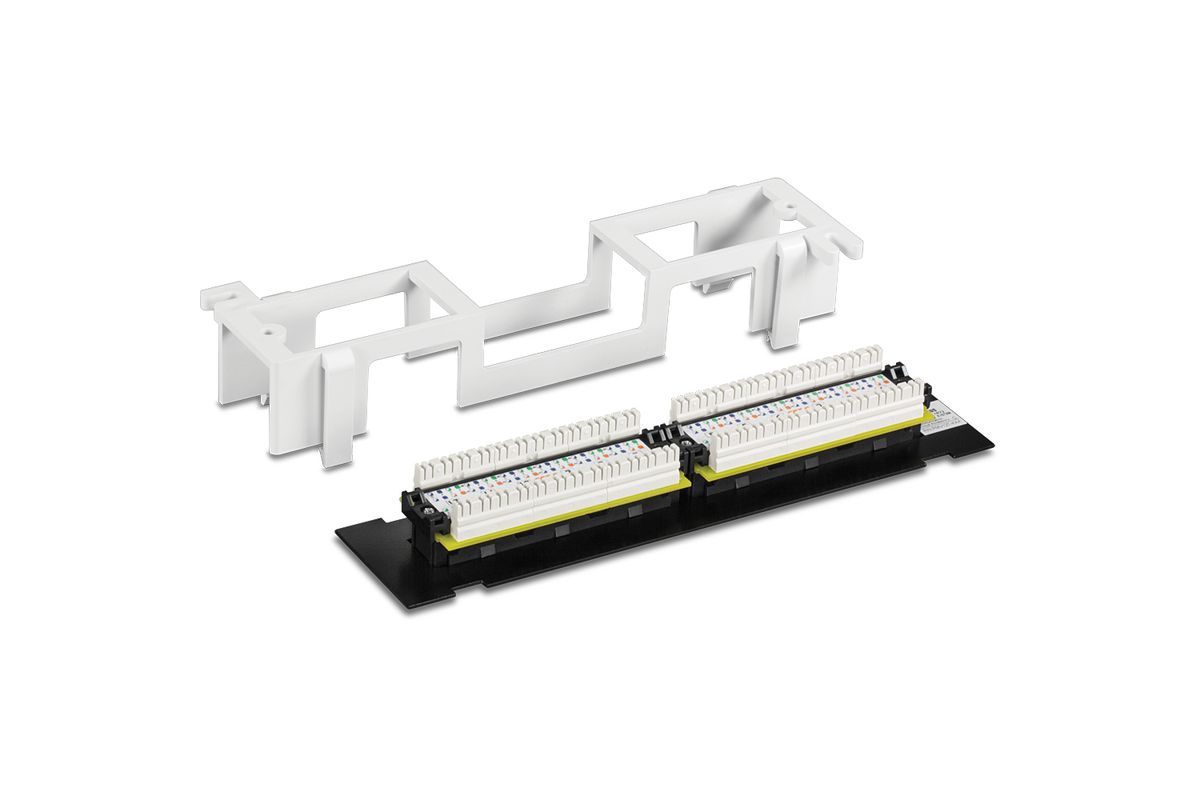

  89D mounting bracket for wall installation
• Mounting
  Wall-mountable (suitable for vertical or horizontal installation per retailer specifications)
• Standards
  ANSI/TIA/EIA-568-C.2; ISO/IEC 11801 (2nd ed.)
• Insulation Resistance
  ≥500 MΩ
• Dielectric Withstand Voltage
  500 V DC
• Contact Resistance
  ≤35 mΩ
• Current Rating
  1.5 A at 20 °C
• Contact Force
  99.2 g
• Plug Retention Force
  13.3 kg
• 110/Krone IDC Insertion Force
  Minimum 4.5 kg
• 110/Krone IDC Retention Force
  Minimum 0.5 kg
• Operating Temperature
  −10 to 60 °C
• Operating Humidity
  Not specified by vendor
